Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.9 SIPLACE Very High Force TwinStar (VHF TH)
327
6.9.3 Technical data
6
All other technical data are identical for the SIPLACE TwinStar and SIPLACE Very High Force
TwinStar (see section 3.7.6.1
, page 139).
Programmable set-down force
1.0 N - 15 N
2.0 N - 70 N
2.0 N -100 N
*a
*)a SIPLACE Very High Force Twin Star (VHF TH) with item number 03096701-03 and OSC Package
Max. component height
50 mm
*b
*)b Max. component height 50 mm available on request, with Very High Force Pick&Place (VHF) and nozzle
type 508.
Max. component weight
160 g to max. 300 g
*c
*)c When handling components of up to 300g, use the station function for measuring and determining the mass
inertia of components and nozzles. The calculated inertia values can then be stored in the Component Editor
and Nozzle Editor of SIPLACE Pro Desk. Recommendation: The function for measuring the mass moment
of inertia for components with a weight of 50g and higher.
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.10 Stationary cameras From software version SC.713.1 Edition 12/2020
328
6.10 Stationary cameras
6.10.1 Component camera, stationary P&P, type 25 GigE (FC camera)
Item no. 03222727-xx Stationary component camera digital, type 25 GigE
6

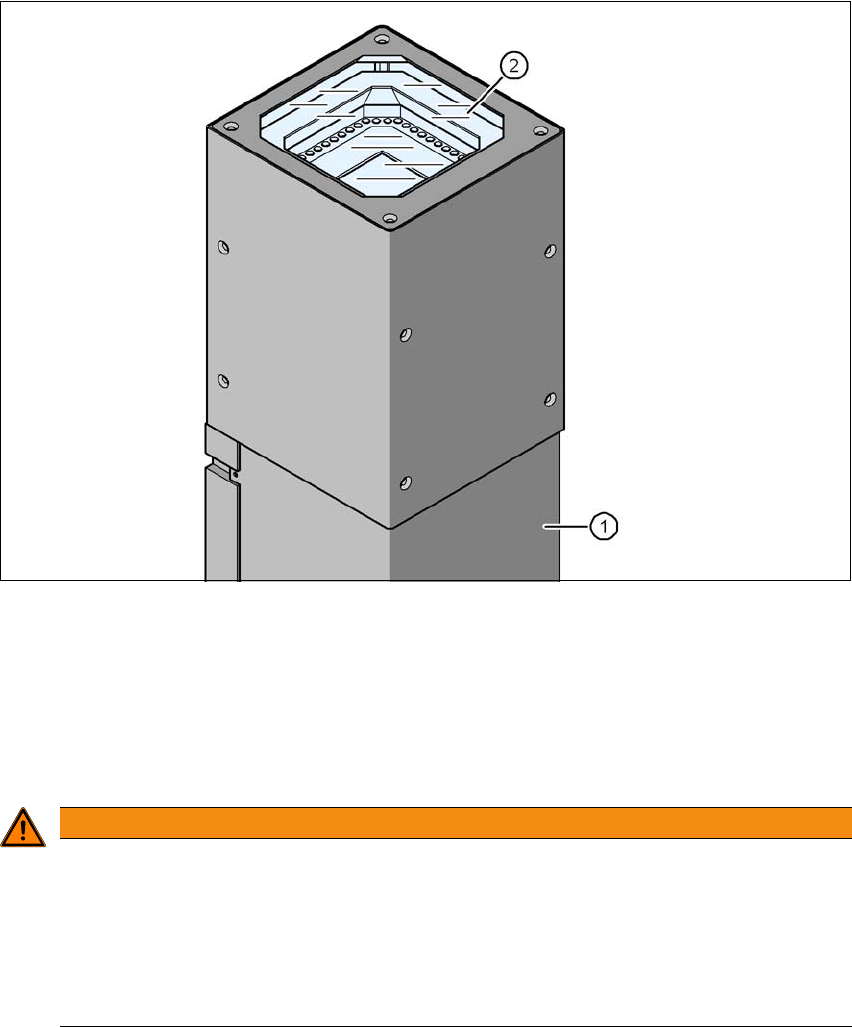

Fig. 6.10 - 1 Component camera, stationary P&P, type 25 GigE (FC camera)
(1) Camera housing with integral camera and camera amplifier
(2) Glass plate - illumination and lens levels below
6.10.1.1 Safety instructions
6
WARNING
Risk of collisions!
When changing the placement head from a TwinStar/VHF to a SpeedStar, the SpeedStar
collides with the camera housing.
Dismantle the stationary component camera for the TwinStar.
When changing the placement head from a TwinStar to a MultiStar, the stationary
component camera is fitted in the bottom position.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.10 Stationary cameras
329
6.10.1.2 Technical data
6
Component dimensions 0.2 mm x 0.2 mm up to 16 mm x 16 mm for single component
measurement
Component range 0402 to SO, PLCC, QFP, sockets, plugs, BGA, special components,
bare dies, flip-chips, shields
Min. lead pitch 0.25 mm
Min. lead width 0.1 mm
Min. ball pitch 0.14 mm
Min. ball diameter 0.08 mm
Field of vision 19.4 mm x 19.4 mm
Illumination type Front-illumination (6 levels, programmable as required)
