Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operation al safety From software version SC.713 .1 Edition 12/2020 2.2 Warning labels 39 2.2 W arning labels 2 WARNING Damage to warning labels! The warning labels …
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.1 Safety instructions From software version SC.713.1 Edition 12/2020
38
2.1.6 Safety instructions for working on the tape cutter
2
See also section 2.2.6, page 49.
2
See also the procedure detailed in the service manual or job cards.
WARNING
Risk of cuts!
Risk of cuts from sharp blades when working on the tape cutter!
Wear robust protective gloves when working on the tape cutter.
WARNING
Risk of injuries!
Risk of injuries from pressurized compressed air lines when working on the tape cutter.
Disconnect the placement machine from the mains supply and the compressed air
supply, before you start work on the tape cutter.
Wait until the operating pressure has dropped to 0 MPa.
Vent the compressed air lines and the tape cutter:
If there is a vent valve (only SIPLACE SX1/SX2 V3), open this valve.
If there is no vent valve (SIPLACE SX1/SX2 V2 and older versions), disconnect
one of the small hoses on the T-section of the tape cutter.
Disconnect the compressed air lines from the tape cutter.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
39
2.2 Warning labels
2
WARNING
Damage to warning labels!
The warning labels can be damaged or destroyed by abrasive cleaning agents or sol-
vents.
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
40
2.2.1 Warning labels on the placement machine (default label)

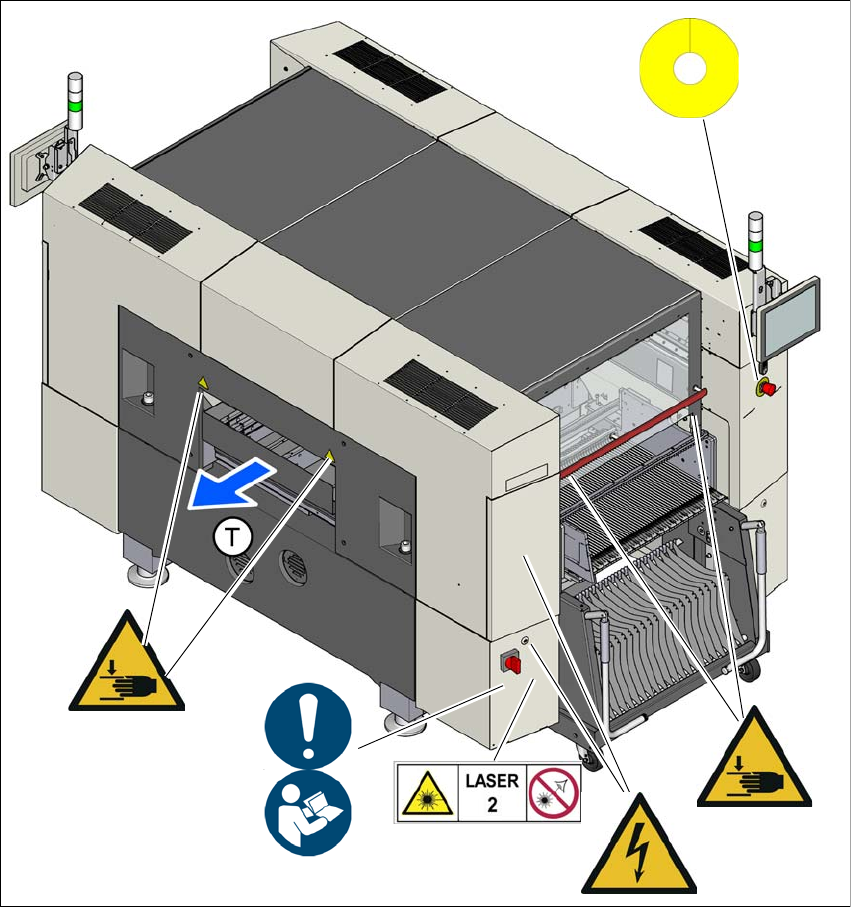

Fig. 2.2 - 1 Warning labels on the placement machine - location 1
Item W 002, item no. 03155798-01
Item W 024, item no. 03155346-01
Item W 210, item no. 03233439-01
Item W 012, item no. 03155378-01
Item W laser class 2, item no. 03155298-01
(T) Direction of PCB transport
W 210
W 024
M 002
W 012
W 024
W laser class 2
