2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2.2 Warning labels From software version SC.713.1 Edition 12/2020 48 2.2.5.1 W arning label W 006 and W 006-P007 2 W 006 in fig. 2.2 - 5 , page 47…

100%1 / 366
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
47
2.2.5 Warning labels in the placement machine

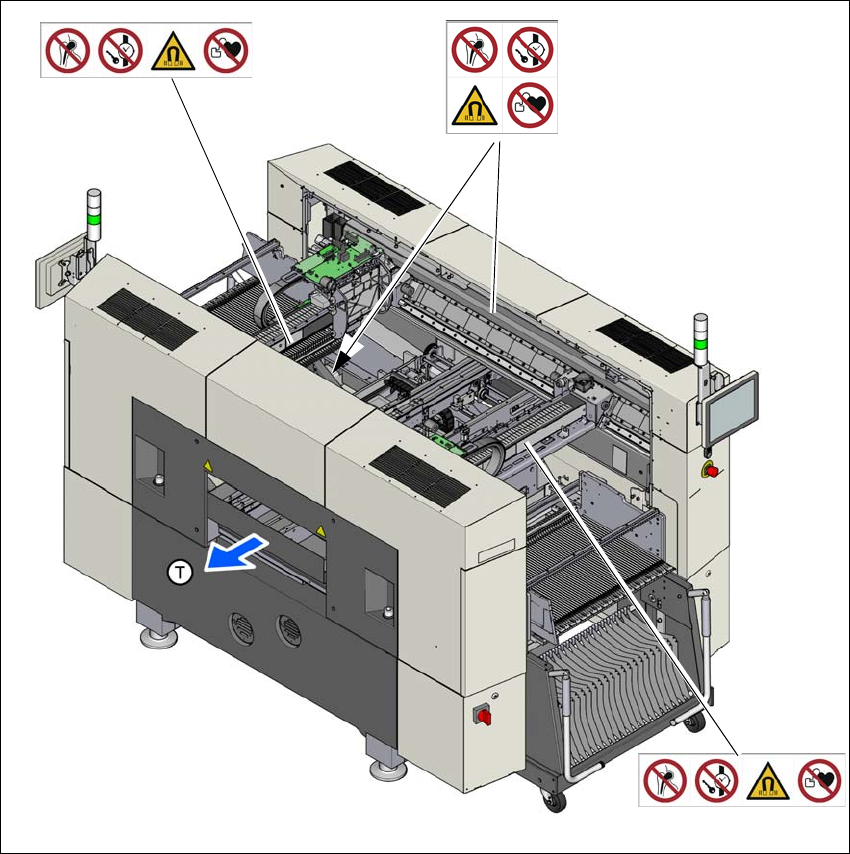

Fig. 2.2 - 5 Warning labels in the placement machine
2
Item W 006, item no. 03155812-01 (on the side panel, center, above the Y gantry)
Item W 006-P007, item no. 03155831-01 (front and back on X gantry)
W 006
W 006-P007
W 006-P007
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
48
2.2.5.1 Warning label W 006 and W 006-P007
2
W 006 in fig. 2.2 - 5, page 47, item no. 03155812-01
(quantity per SX1 placement machine: 2, SX2 placement machine: 2)
Item W 006-P007 in fig. 2.2 - 5
, page 47, item no. 03155831-01
(quantity per SX1 placement machine: 2, SX2 placement machine: 4)
2
2
DANGER
Risk to life from powerful magnetic fields caused by the permanent magnets inside the
placement machine
When protective covers are opened inside the placement machine, the life of persons with
the following passive or active implants is put at risk:
– Pacemakers
– Defibrillators
– Insulin pumps etc.
At-risk people may not stand in the immediate vicinity of the placement machine.
WARNING
DANGER OF CRUSHING!
There is a danger of crushing for persons with passive metal implants (e.g. plates,
screws).
Never reach into the placement machine when the protective covers are open and do
not bend over the open placement machine.
Do not bring any metal objects into the danger area.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
49
2
2.2.6 Warning label W 205 on tape cutter
2
Fig. 2.2 - 6 Warning label W 205 on the top of the tape cutter
Item W 205, item no. 03009344-01
CAUTION
Data loss due to powerful magnetic fields!
There is a risk that the powerful magnetic fields could corrupt data on data media or credit
cards and check cards.
Keep data carriers and check cards away from the placement machine.
W 205
