6 Station extensions Instructio n manual SIPLACE SX1/SX2 Edition V2 and V3 6.9 SIPLACE Very High Force TwinStar (VHF TH) From software vers ion SC.713.1 E dition 12/2020 326 6.9 SIPLACE V ery High Force T winSt ar (VHF T…
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.8 Sensor for the component reject bin
325
6.8 Sensor for the component reject bin
Item no. 00519848-xx query for component reject bin
The sensor for the component reject bin monitors whether the reject bin is seated correctly in its
mount.
– If the reject bin was not inserted correctly, the placement machine cannot be started.
– If the reject bin jumps out of its mount during the placement process, the placement machine
will be stopped immediately to avoid a head crash.
Each reject bin can be monitored by a separate sensor.
6
PLEASE NOTE
When using a SpeedStar we recommend that you install the optional sensor for the com-
ponent reject bin.
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.9 SIPLACE Very High Force TwinStar (VHF TH) From software version SC.713.1 Edition 12/2020
326
6.9 SIPLACE Very High Force TwinStar (VHF TH)
Item no. 00519986-xx VHF TwinStar with gantry
6.9.1 Description
The SIPLACE Very High Force TwinStar is an advanced development of the standard TwinStar.
The SIPLACE Very High Force TwinStar is suitable for processing complex and large compo-
nents.
For a detailed description, refer to the "Assembly Instructions - Head Reconfiguration Kit VHF
head", Item No. 00197270-xx]
6.9.2 Overview
6

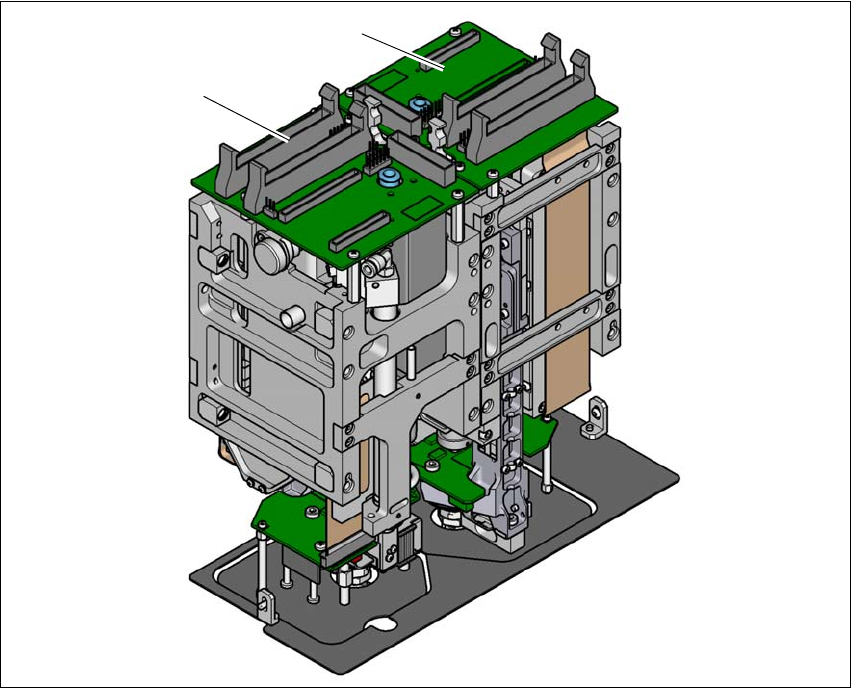

Fig. 6.9 - 1 SIPLACE Very High Force TwinStar (VHF TH)
(1) Pick&Place module 1 (P&P1)
(2) Pick&Place module 2 (P&P2)
2
1
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.9 SIPLACE Very High Force TwinStar (VHF TH)
327
6.9.3 Technical data
6
All other technical data are identical for the SIPLACE TwinStar and SIPLACE Very High Force
TwinStar (see section 3.7.6.1
, page 139).
Programmable set-down force
1.0 N - 15 N
2.0 N - 70 N
2.0 N -100 N
*a
*)a SIPLACE Very High Force Twin Star (VHF TH) with item number 03096701-03 and OSC Package
Max. component height
50 mm
*b
*)b Max. component height 50 mm available on request, with Very High Force Pick&Place (VHF) and nozzle
type 508.
Max. component weight
160 g to max. 300 g
*c
*)c When handling components of up to 300g, use the station function for measuring and determining the mass
inertia of components and nozzles. The calculated inertia values can then be stored in the Component Editor
and Nozzle Editor of SIPLACE Pro Desk. Recommendation: The function for measuring the mass moment
of inertia for components with a weight of 50g and higher.
