Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operation al safety From software version SC.713 .1 Edition 12/2020 2.2 Warning labels 63 2.2.13.2 Warning label W 004 2 W 004 in fig . 2.2 - 16 , page 62 , item no.…

100%1 / 366
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
62
2.2.13 Warning label on PCB conveyor
2

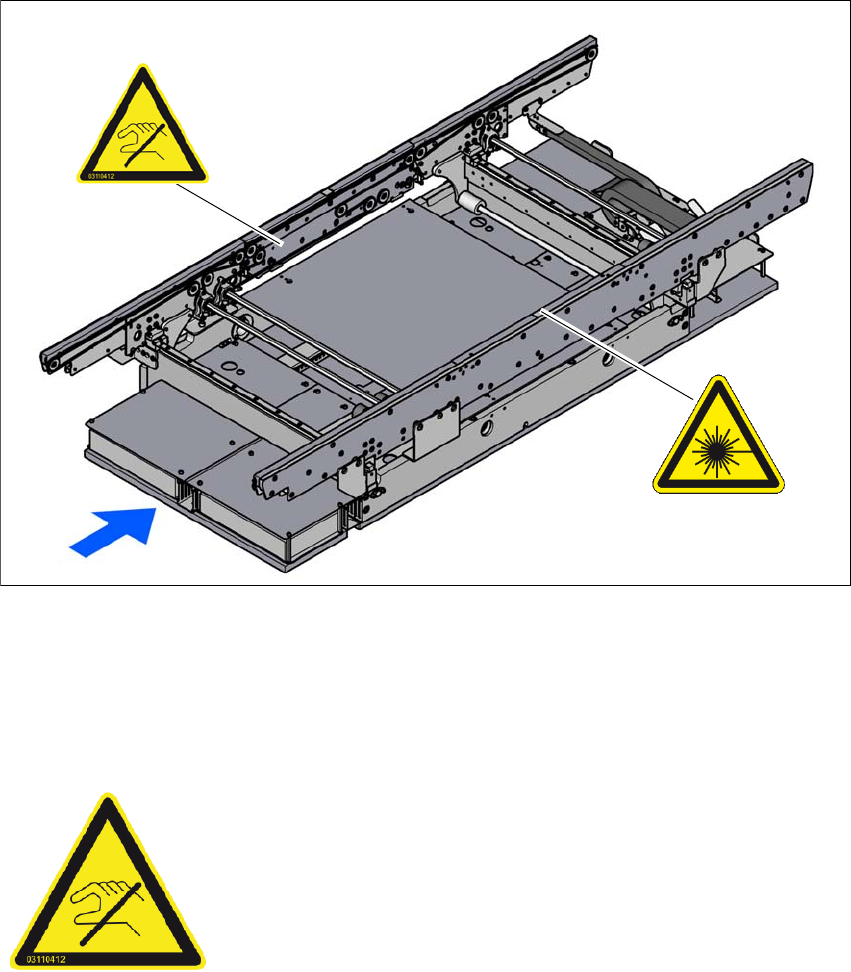

Fig. 2.2 - 16 Warning labels on the board conveyor (example of single conveyor)
(1) Warning label "Sensitive conveyor sides"
Item. W 004, on the laser light barrier
2.2.13.1 Warning label "Sensitive conveyor sides" on the clamping plate
2
Item no. 03110412-01 (quantity: single conveyor 1, dual conveyor 2)
(1)
W 004
Sensitive conveyor sides!
The conveyor sides are highly sensitive and may not be moved
unless the brakes have been released.
Moving the sides without releasing the brakes can cause irrepa-
rable damage to the conveyor sides.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
63
2.2.13.2 Warning label W 004
2
W 004 in fig. 2.2 - 16, page 62, item no. 03223713-01
(quantity: single conveyor 1, dual conveyor 2)
2
LASER RADIATION
Risk class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.3 Classification of camera systems From software version SC.713.1 Edition 12/2020
64
2.3 Classification of camera systems
2.3.1 Classification of the whole machine
2
2.3.1.1 Laser classification
The following modules are assigned to risk class 2:
2
The following modules are assigned to laser class 3B:
2
The ready-for-operation placement machine is assigned to risk class 2.
The risk classes are determined according to IEC 60825-1:2014.
Assembly Data
Component sensor on SpeedStar Maximum optical output power: < 1 mW
Wavelength: 635 nm
Component sensor on MultiStar CPP Maximum optical output power: < 1 mW
Wavelength: 635 nm
Laser light barrier on PCB conveyor Maximum optical output power: < 1 mW
Wavelength: 650 nm
1D board barcode reader
(Datalogic DS1500)
Maximum optical output power: --
Wavelength: 658 nm
Assembly Data
3D coplanarity laser module Maximum optical output power: 60 mW
Wavelength: 670 nm
See also section 6.7
3D coplanarity laser module,
page 322
.
