Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine From software version SC.713.1 Edition 12/2020 5.2 Controls and d isplays 233 5.2 Controls and displays 5.2.1 Overview of the SIPLACE …
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.1 Staff profiles From software version SC.713.1 Edition 12/2020
232
5.1.3 Operator level "Service (customer)"
5.1.3.1 Tasks
The service personnel's duties include:
– Major preventive maintenance jobs
– Mounting replacement parts
– Editing machine data
– Calibrating the placement machine
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.2 Controls and displays
233
5.2 Controls and displays
5.2.1 Overview of the SIPLACE SX1/SX2 V3
5

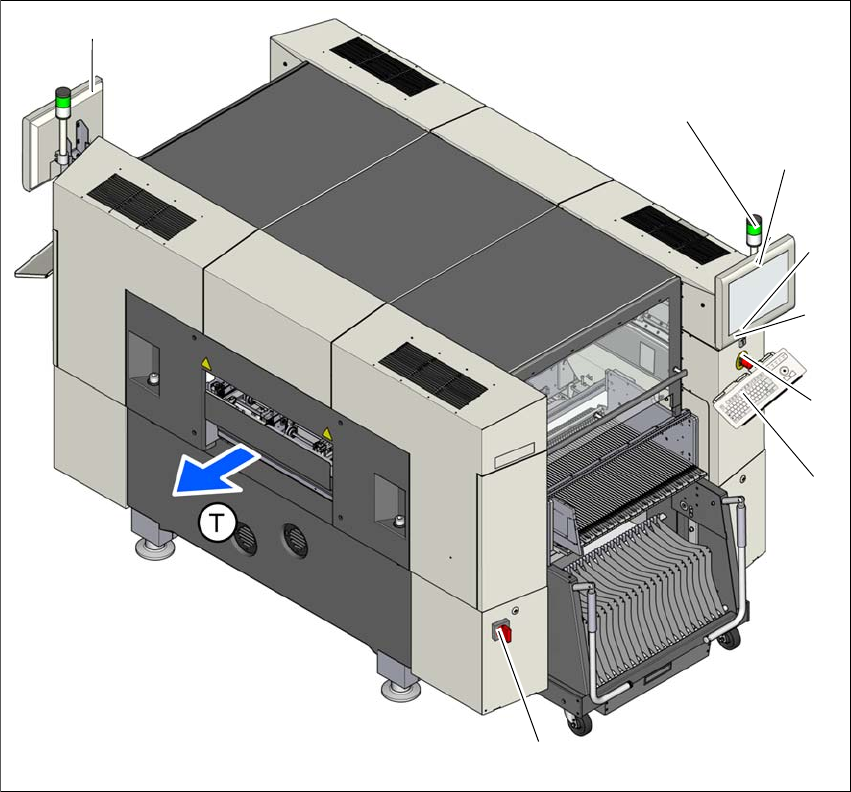

Fig. 5.2 - 1 Controls and displays on the SIPLACE SX1/SX2 V3
5
(1) Main switch (5) Multitouch monitor
(2) Start button (white) (6) Indicator lamps with horn
(3) EMERGENCY STOP button (T) Direction of PCB transport
(4) Stop button (black)
(1)
(3)
(2)
(5)
(6)
(6)
(4)
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.2 Controls and displays From software version SC.713.1 Edition 12/2020
234
5.2.2 Overview of the SIPLACE SX1/SX2 V2
5

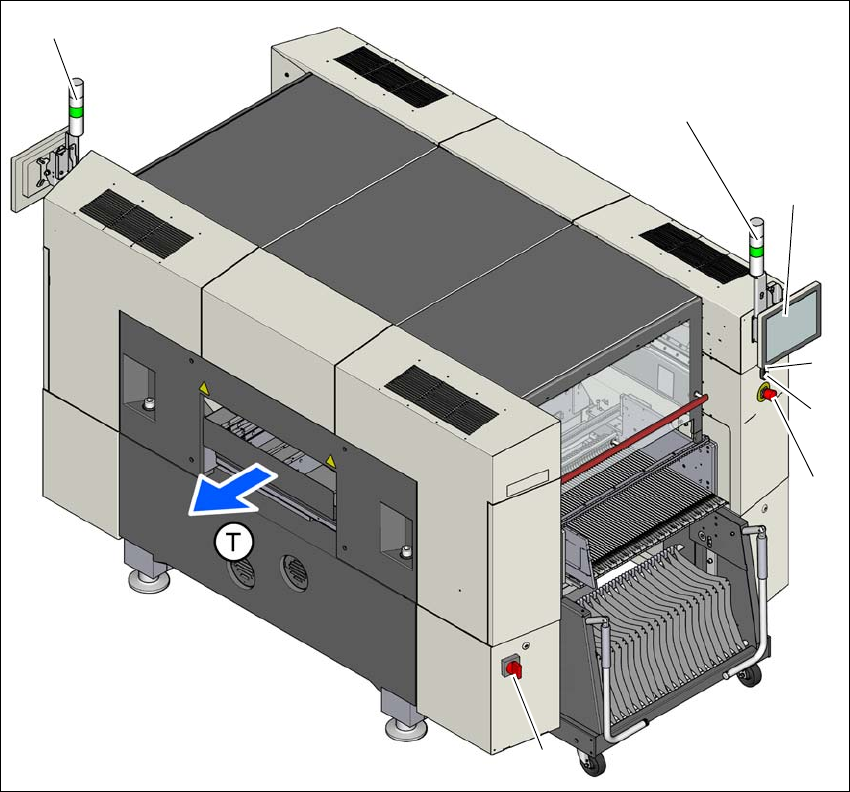

Fig. 5.2 - 2 Controls and displays on the SIPLACE SX1/SX2 V2
5
(1) Main switch (5) Stop button (black)
(2) Start button (white) (6) LCD touchscreen
(3) EMERGENCY STOP button (7) Indicator lamps with horn
(4) Keyboard (T) Direction of PCB transport
(1)
(4)
(3)
(2)
(6)
(7)
(7)
(5)
