1 Introduction Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 1.1 Important notes on the instruction manual From software vers ion SC.713.1 Edition 12/2020 18 CPP Collect&Place head, SIPLACE MultiS tar DCA Dire…
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 1 Introduction
From software version SC.713.1 Edition 12/2020 1.1 Important notes on the instruction manual
17
1.1.5 Further information about and contents of the documentation package
1.1.5.1 How to get information
If you have any further questions concerning this manual or if you would like additional information
on a particular topic, please get in touch with your local SIPLACE dealer or contact us directly at:
ASM Assembly Systems GmbH&Co.KG
Rupert-Mayer-Str. 44
81379 Munich 1
1.1.5.2 SIPLACE on the World Wide Web (WWW)
We also have our own site on the Internet. Why not log onto our SIPLACE home page at http://
www.asm-smt.com.
1
All the menus and other information are available in two languages: You can choose between the
German and English versions.
The various headings contain information on
– Our products
– Services
– Contacts, etc.
Registered customers can also access the SIPLACE User Group. There you can call up special
information on our placement machines, such as
– Technical documentation
– Technical information
– Spare parts catalogs etc.
Registering for access to the User Group is easy:
Click on ’Register now’.
Complete the registration form and just send it off.
You will then quickly receive access authorization with USER ID and a password.
1.1.6 Abbreviations
1
A-Placement Alternating Placement
PA Placement area
CO Component
C&P20 P2 Collect&Place head with 20 segments, SIPLACE SpeedStar for top placement
performance
1 Introduction Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
1.1 Important notes on the instruction manual From software version SC.713.1 Edition 12/2020
18
CPP Collect&Place head, SIPLACE MultiStar
DCA Direct chip attach
DC Dual conveyor
EDIF Energy and data interface
ESD Electrostatically-sensitive group of components
EMC Electromagnetic compatibility
ESD Electrostatic sensitive device
SC Single conveyor
FC Flip chip
WT Waffle pack tray
WTC Waffle pack tray carrier
GCU Gantry control unit
GND Ground
HCU Head control unit
I-Placement Independent placement
JTF JEDEC Tray Feeder
LBO Long Board Option
PCB Printed circuit board
MCS Machine capability study
MTC Matrix tray changer
P&P Pick&Place
P&P1 Pick&Place module 1
P&P2 Pick&Place module 2
NC Nozzle changer
SMD Surface mounted device
TBO Thick Board Option
SC Station computer
TH Twin Pick&Place head, SIPLACE TwinStar
VHF TH SIPLACE Very High Force TwinStar
VS Vision system
WPC Waffle pack changer
WBO Wide board option (21")
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 1 Introduction
From software version SC.713.1 Edition 12/2020 1.2 Overview
19
1.2 Overview
1.2.1 SIPLACE SX1/SX2 V3
The SIPLACE SX1/SX2 V3 features a multi-touch monitor without keyboard as a default. Instead
of the standard multi-touch monitor, you can configure a 15" LCD monitor with keyboard at each
of the SIPLACE SX1/SX2 V3 operating panels.
1

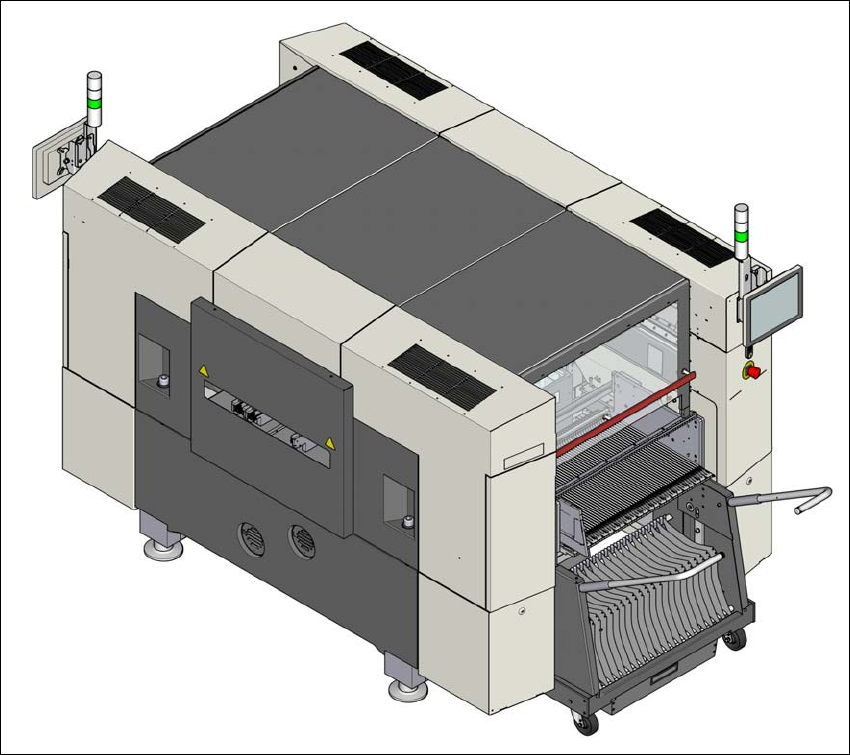

Fig. 1.2 - 1 SIPLACE SX1/SX2 V3 placement machine
