5.8.2 Safety instructions for emptying the waste tape container
5

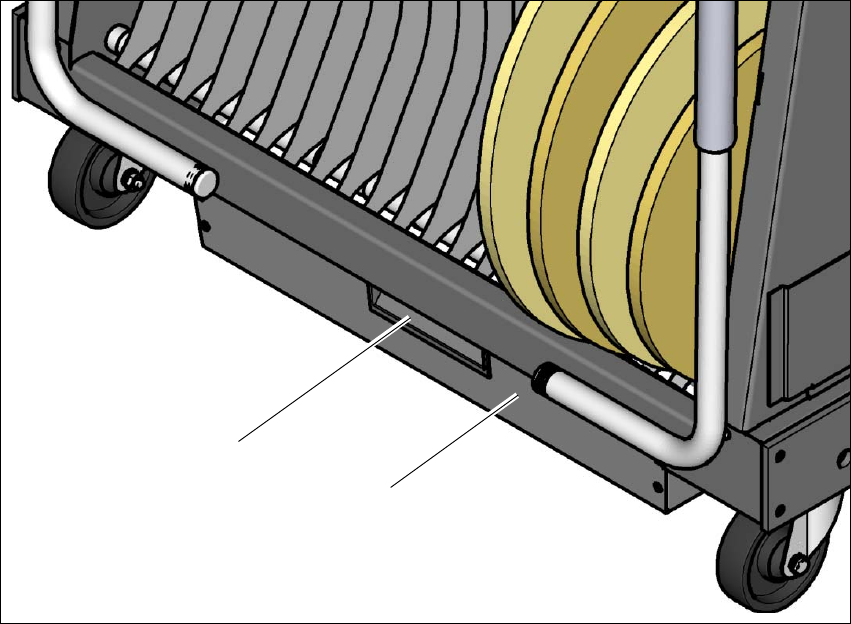

Fig. 5.8 - 1 Safety instructions for emptying the waste tape container
(1) Handle
(2) Waste tape container
The waste tape container must be pulled out of the component trolley for emptying. There is a risk
of catching your fingers as you do so.
To avoid any risks, always use the handle recess to take hold of the waste tape container
(
item 1).
Do NOT put your fingers in the gap between the tape container and waste tape container as
you could catch your fingers if you do.
(1)
(2)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.9 Carrying out a sight check
261
5.9 Carrying out a sight check
5.9.1 Checking the X feeder modules
5
Fig. 5.9 - 1 Checking the X feeder modules
(1) Flap
(2) Blade
(3) Status display
(4) LED display
Check to see whether the tape foil removal container for the X tape feeder module is full.
Open the flap (item 1). Pull out the cover foil and cut it off with scissors or the blade (item 2).
5
(1)
(2)
(3)
(4)
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.9 Carrying out a sight check From software version SC.713.1 Edition 12/2020
262
5
Check the multicolor status display (item 3 in fig. 5.9 - 1, page 261).
– If it lights up green, the feeder module is on standby.
– If it lights up orange, it is signaling a warning. The LEDs will shine accordingly.
– If the status display lights up red, a malfunction has occurred. The LEDs will shine ac-
cordingly.
A list of the LED and status displays on the Smart Feeder operator panel is given in sec-
tion 5.11.1
, page 277. 5
If the status display is off, the cause may be as follows: 5
– The feeder module is not in the current setup.
– The feeder module is defective.
– The feeder module has been disabled (due to a drop in pressure, for example)
5.9.2 Splicing the tapes in good time
5
5
CAUTION
Problems with cover foil withdrawal!
If the cover foil tears, this could lead to problems with the cover foil withdrawal.
PLEASE NOTE
Late splicing of tapes
Late splicing of tapes can lead to prolonged down times.
Splice the tapes early enough so that the feeder modules do not run out of compo-
nents.
PLEASE NOTE
Early splicing of tapes
Early splicing of tapes can have the following consequence: when the old tape is rolled up
onto the new reel, the new reel could become too full and the tape will slide off it and get
caught up. This will again result in pick-up errors and prolonged down times.
Splice the tapes at the right time so that the old and new tapes do not get caught.
