3.10.5 Energy and data interface (EDIF) for X feeder modules
Item no. 00141247-xx Energy and data interface for X feeder modules
3
Fig. 3.10 - 8 Energy and data interface for X feeder modules
(1) Unlocking button for locking latch
(2) Operator panel
(3) Data cable
(4) Power supply cable
(5) Electronics housing
(6) Fold-out feet
(7) Omega profile for guiding feeder modules
(8) Locking latch
(9) Locating hole for front centering pin of feeder module
(10) Base plate
(11) Tape reel holder
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies
From software version SC.713.1 Edition 12/2020 3.10 X feeder modules
167
3.10.5.1 Description
The energy and data interface allows X feeder modules to be used outside the placement machine
and presetup area. The interface consists of an aluminum frame with omega profile (item 7 in fig.
3.10 - 6
, page 164) for holding and guiding the feeder modules. As with the X component trolley,
the feeder module is placed on the omega profile, with the slider guides, and is pushed forwards
until the front centering pin of the feeder module is fully inserted into the locating hole (item 9 in
fig. 3.10 - 6
, page 164). The locking latch (item 8 in fig. 3.10 - 6, page 164) locks the feeder module
in this position. To remove the feeder module, simply press the release button (item 1 in fig.
3.10 - 6
, page 164 ). The locking latch (item 8 in fig. 3.10 - 6, page 164) is pressed down and re-
leases the feeder module. Fold-out feet (item 6 in fig. 3.10 - 6
, page 164) stabilize the position of
the energy and data interface, particularly for wide feeder modules.
The electronic housing (item 5 in fig. 3.10 - 6
, page 164) holds the electronic control unit for the
energy and data interface. The operator panel (item 2 in fig. 3.10 - 6
, page 164) consists of start
and stop buttons and two status LEDs. Communication with a PC takes place via the data cable
(item 3 in fig. 3.10 - 6
, page 164 ). The power supply cable (item 4 in fig. 3.10 - 6, page 164) is
connected to the power supply unit provided.
3.10.5.2 Usage
The energy and data interface is used to check, maintain and repair X feeder modules. It can also
be used for setting up in advance for PCB production. In this case, the energy and data interface
is fixed to the base plate (item 10 in fig. 3.10 - 8
, page 166). The tape reel holder (item 11 in fig.
3.10 - 8
, page 166) is also mounted on the base plate. When a component tape is inserted, you
can check or reset the increment, pick-up position and conveyor speed. The detailed user guide
describes how to use the interface and the necessary servicing work.
3.10.5.3 Scope of delivery
– Single Slot EDIF
– Power supply, 100 - 120 / 200 - 240 VAC, +30VDC, 4.3 A
– Base plate with tape reel arm
–User guide
3 Technical data and assemblies Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
3.10 X feeder modules From software version SC.713.1 Edition 12/2020
168
3.10.6 SIPLACE PowerConnector X
Item no. 00141420-xx SIPLACE PowerConnector X
3

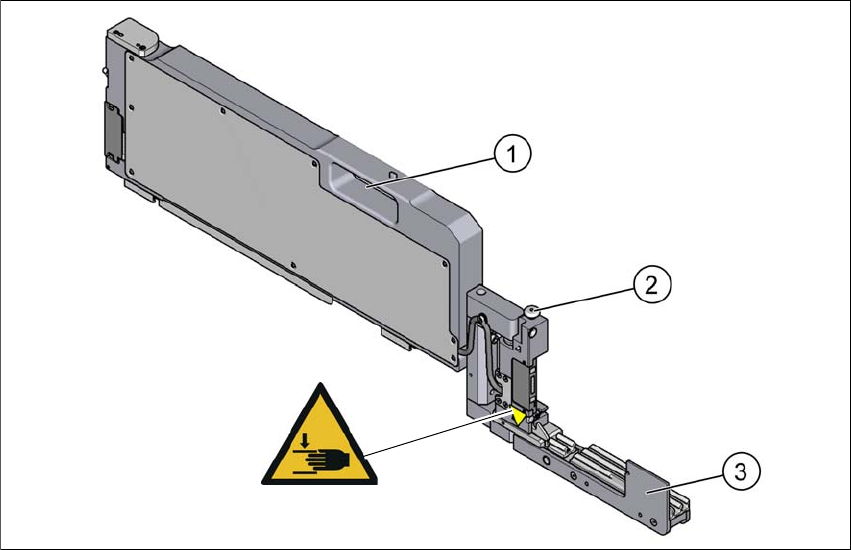

Fig. 3.10 - 9 SIPLACE PowerConnector X
(1) Handle
(2) Unlocking button for extender arm and feeder
(3) Extender arm (in work position)
Item W 024, item no. 03155346-01
3.10.6.1 Description
The SIPLACE PowerConnector X helps to resolve problems connected to SIPLACE X feeder
modules in the machine, without the need to stop the production process.
For a detailed description, see the
SIPLACE PowerConnector X user guide, [item no. 00198772-
01-xx.]
W 024
