Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operation al safety From software version SC.713 .1 Edition 12/2020 2.2 Warning labels 43 2.2.2.3 W arning label W 024 2 W 024 in fig. 2.2 - 2 , page 41 and 2.2 - 2 …
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
42
2.2.2 Meaning and description of warning labels (default labeling)
2.2.2.1 Information sign M002
2
Item M 002 in fig. 2.2 - 1, page 40, item no. 3155798-01 or
Item M 002 in fig. 2.2 - 3
, page 44, item no. 3155798-01
(Quantity per placement machine: 1)
2.2.2.2 Warning label laser class 2
2
Item W Laser class 2 in fig. 2.2 - 1, page 40, item no. 03155298-01
(Quantity per placement machine: 1)
2
2
2
2
2
2
2
2
Safe operation of placement machine
Safe operation of the placement machine depends absolutely on
the operator being familiar with the instruction manual and safety
instructions and putting them into effect.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
43
2.2.2.3 Warning label W 024
2
W 024 in fig. 2.2 - 2, page 41 and 2.2 - 2, page 41, item no. 03155346-01
(Quantity per placement machine: 8)
2.2.2.4 Warning label W 012
2
W 024 in fig. 2.2 - 2, page 41 and 2.2 - 2, page 41, item no. 03155378-01 or
W 024 in fig. 2.2 - 3
, page 44 and 2.2 - 4, page 45, item no. 03155378-0
(Quantity per placement machine: 3)
2.2.2.5 Warning label W 210
2
W 210 in fig. 2.2 - 1, page 40 and 2.2 - 2, page 41, item no. 03233439-01
(Quantity per placement machine: 2)
2
2
2
Warning about hand injuries
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the running placement machine.
Do not reach into the inside of the adjacent placement ma-
chine
Dangerous voltages
Marked parts are initially still live when the main power switch is off
and the mains plug has been disconnected.
Disconnect the placement machine from the mains before opening
the cover.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
44
2.2.3 Warning labels on the placement machine (label for China)

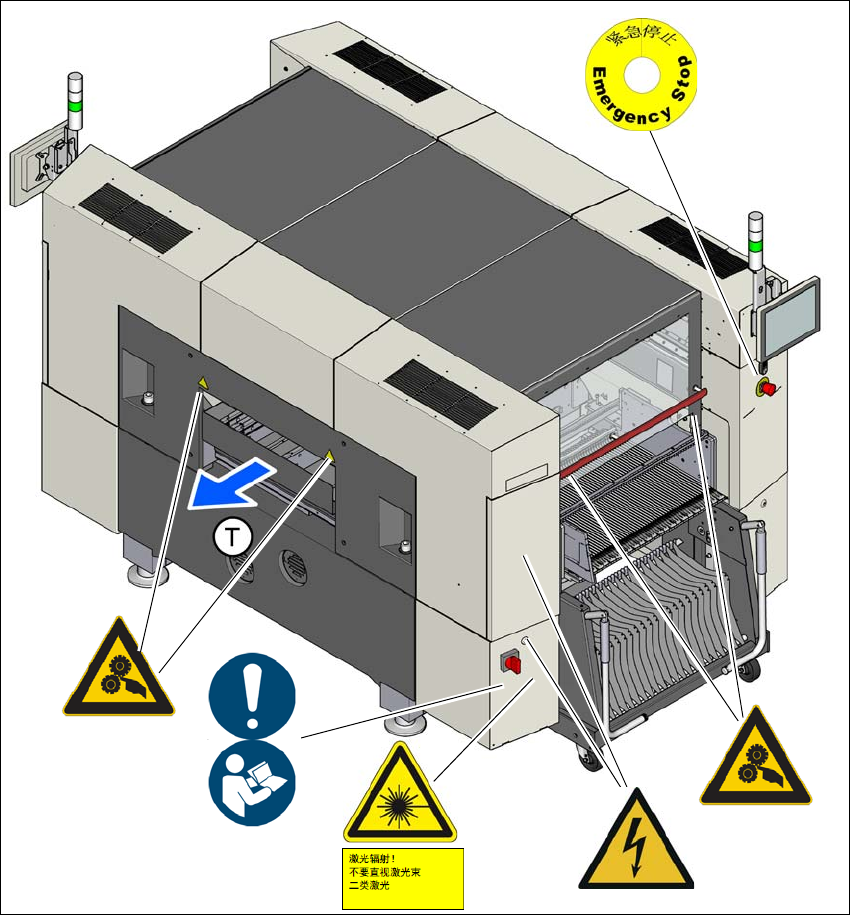

Fig. 2.2 - 3 Warning labels on the placement machine - location 1 - labels for China
Item W 002, item no. 03155798-01
Item W 204-CN, item no. 03149290-01
Item W 209-CN, item no. 03149080 -01
Item W 012, item no. 03155378-01
Item W 004-CN, item no. 03155348-01
(1) Laser text label, item no. 03155432-01
(T) Direction of PCB transport
W 209-CN
W 204-CN
M 002
W 012
W 204-CN
W 004-CN
(1)
