4.6 Commissioning the placement machine
4.6.1 Commissioning the placement machine at the customer's premises
Check all modules for correct seating.
Remove the shipping braces (see section 4.3.10, page 220).
Wipe the linear guide rails of the X/Y axis with a lint-free cloth. Do not use any solvents (see
section 4.3.11
, page 220).
Connect the power and compressed air supplies. Make sure that the incoming leads and ca-
bles can not be tripped over. If possible, run the incoming cables under the placement ma-
chine.
Switch the placement machine on and check the function of the safety features such as the
EMERGENCY STOP button, position switch for covers and the component trolley.
Perform a reference run.
Perform initial calibration of the placement machine (see section 4.6.1.1, page 225).
Load a recipe in the computer and test it.
Check the placement machine zero point after a period of warming up of 3 - 4 h.
Get the customer's operating personnel to equip the feeder modules according to the cus-
tomer's placement program.
Instruct them in handling the feeder modules using the JobGuide.

Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning
From software version SC.713.1 Edition 12/2020 4.6 Commissioning the placement machine
225
4.6.1.1 Performing initial calibration
Click on "Service Tools" in the toolbar.
Click on the Automatic calibration button.
4

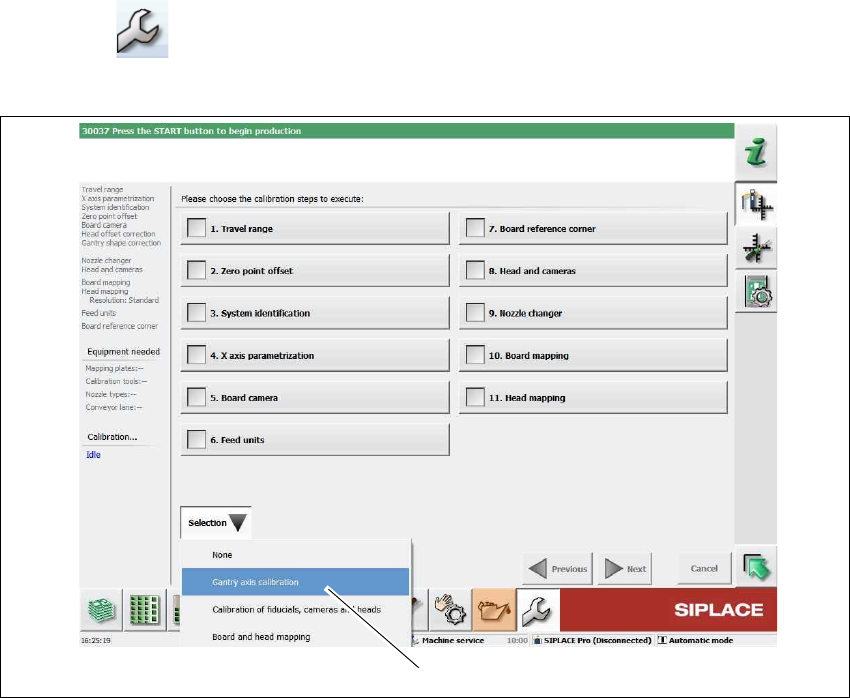

Fig. 4.6 - 1 Service tools => automatic calibration
Select Selection => Gantry axis calibration (1).
(1)

4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
4.6 Commissioning the placement machine From software version SC.713.1 Edition 12/2020
226
4

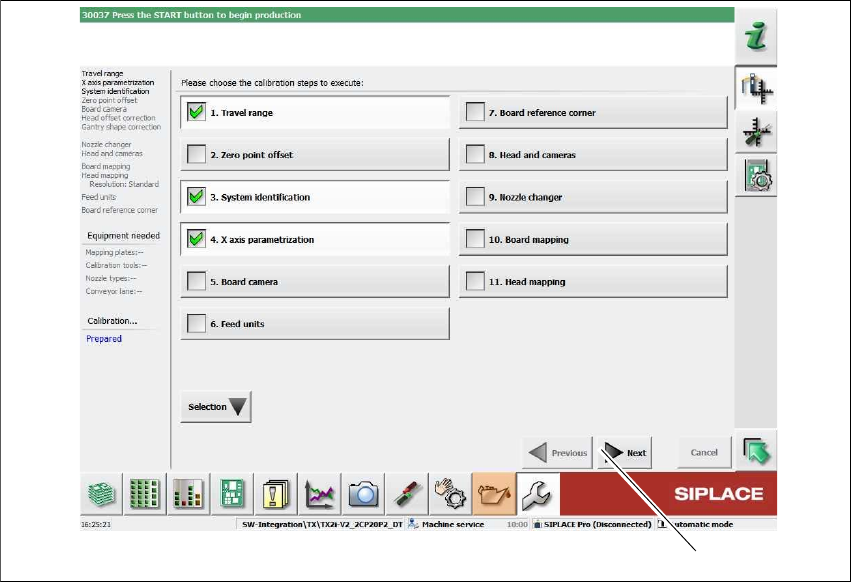

Fig. 4.6 - 2 Service tools => automatic calibration => calibrating the gantry axes
The following calibration steps are enabled:
– 1. Travel range
– 3. System identification
– 4. Parameterization X axis
Click on Next (1).
The calibration must be completed without errors.
(1)
