4.2.3.7 Overview of the microfuses
4

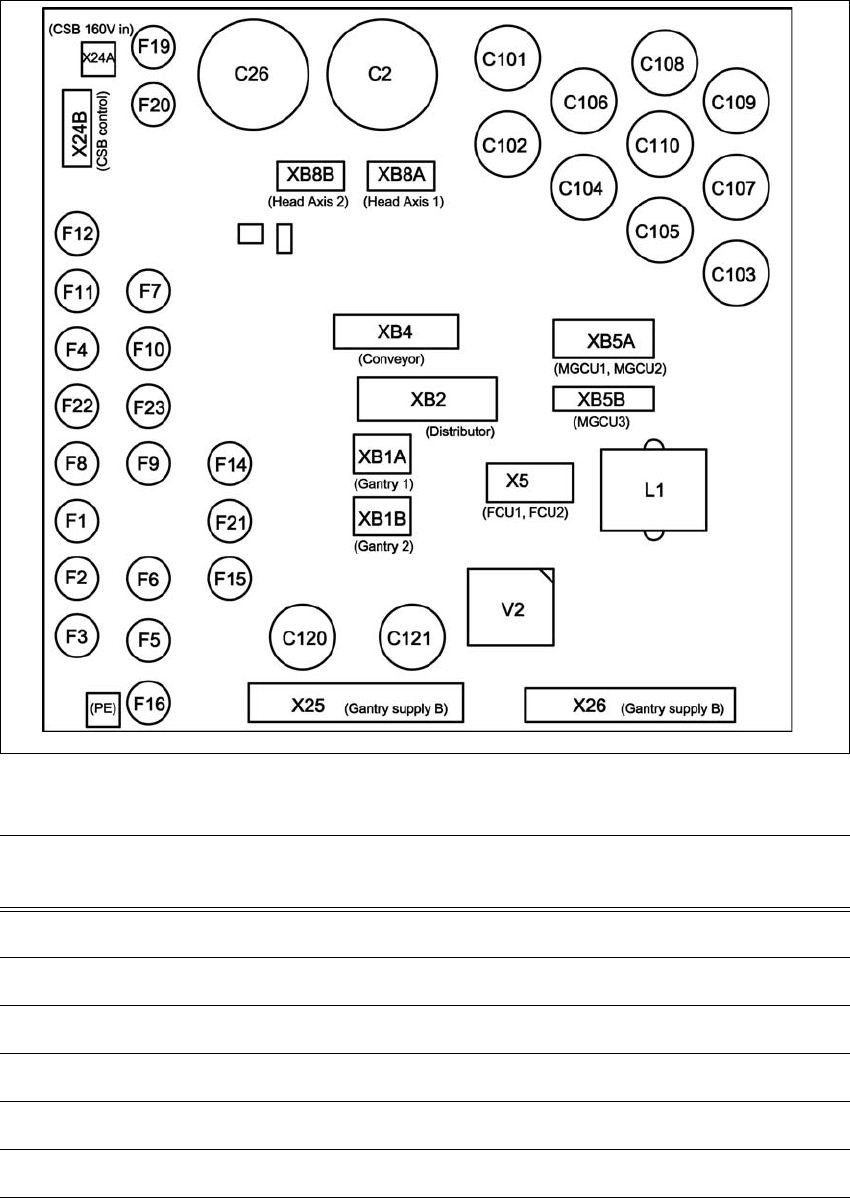

Fig. 4.2 - 7 Overview of the microfuses
4
Fuse Components Electricity
[A]
Voltage [V]
F1 MGCU 1 6,3 27
F2 MGCU 2 6,3 27
F3 MGCU 3 6,3 27
F4 Distributor/power fail 6,3 24
F5 Station PC 6,3 27
F6 Options PC 6,3 27
4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
4.2 Infrastructure at the installation location From software version SC.713.1 Edition 12/2020
202
4
F7 Conveyor control 6,3 24
F8 Y sensor module 1 6,3 27
F9 Y sensor module 2 6,3 27
F10 Internal 6,3 24
F11 SSK-Ready CSB 6,3 24
F12 CSB supply 6,3 24
F14 Head supply 1 6,3 42
F15 Head supply 2 6,3 42
F16 Conveyor drives 6,3 42
-- -- -- --
-- -- -- --
F19 Head axis 1 6,3 160
F20 Head axis 2 6,3 160
F21 Vision 6,3 42
F22 FCU 1 6,3 27
F23 FCU 2 6,3 27
PLEASE NOTE
Replacing the microfuses
Only replace the microfuses with approved fuse links!
Fuse Components Electricity
[A]
Voltage [V]
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning
From software version SC.713.1 Edition 12/2020 4.3 Setting up the placement machine
203
4.3 Setting up the placement machine
4.3.1 Warning instructions
4
4
4
4
4
WARNING
Observe the applicable accident prevention regulations!
Only SIPLACE engineers or qualified people are permitted to set up and commission the
placement machine.
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
Risk of injury during assembly work to the underside of the placement machine!
Risk of injury during assembly work to the underside of the placement machine.
Secure the placement machine using suitable measures. The fork-lift must not be
used as the only support.
WARNING
Risk of injury during assembly work!
Incorrect positioning of gantries during assembly restricts the head clearance and can
lead to injuries.
Take care that the gantries are positioned over the board conveyor area.
WARNING
Setting the height of the placement machine!
Two people will be needed to adjust the height of the placement machine:
– One person completes the required assembly work
– The other person watches the stability of the raised placement machine during
assembly.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the placement machine.
Wear specially reinforced shoes.
