Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning From software version SC.713.1 Edition 12/2020 4.3 Setting up the placement machine 217 4  Adjust the placement machine by following th…

4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3

4.3 Setting up the placement machine From software version SC.713.1 Edition 12/2020

216

4.3.9 Aligning the placement machine with the machine spirit level

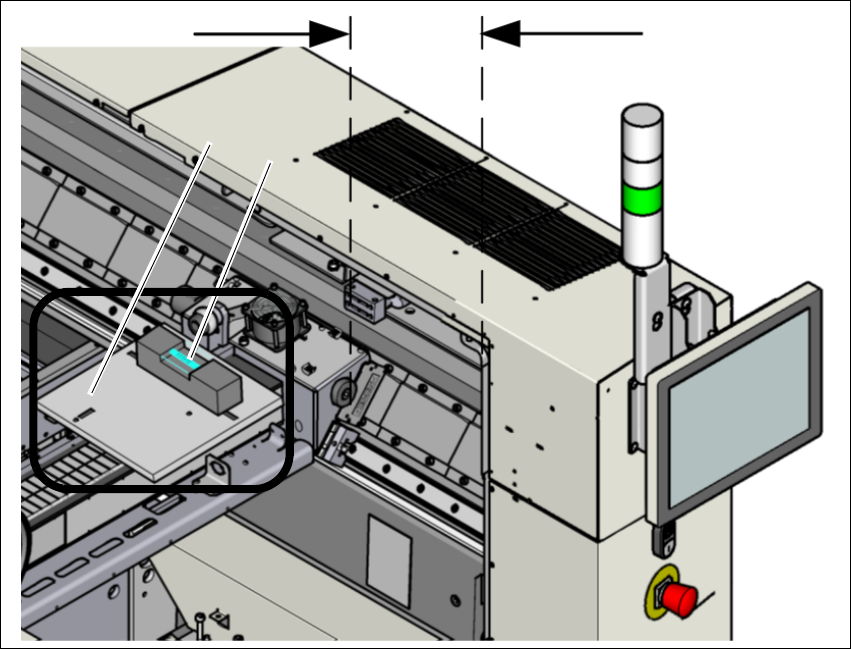

Fig. 4.3 - 8 Adjusting the placement machine in the X and Y direction - measurement structure

 Measurement is performed at gantry 1.

 Push the gantry inwards, in the Y direction. The distance of the two bumpers should be ap-

prox. 300 mm (or approx. 4-5 red dots on the linear guide).

 Place the support plate (1) onto the gantry so that the 3 support pins lie on the free areas be-

tween the running surface and the magnets. Make sure that the 3 support pins touch evenly.

 Place the machine spirit level (measuring accuracy of 0.02 mm) onto the support plate and

measure at 3 points

– The alignment of the Y axis at the loose bearing side and at the fixed bearing side.

– The alignment of the X axis in the middle of the X gantry. The head mount must be in the

middle of the X gantry.

300 mm

(1)

(

Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning

From software version SC.713.1 Edition 12/2020 4.3 Setting up the placement machine

217

 Adjust the placement machine by following the instructions below in the order listed:

(1) Align the placement machine in the Y direction at the fixed and loose bearing sides. The mea-

suring tolerance is 0.10 mm.

(2) Align the placement machine in the X direction to the middle of the gantry. The measuring

tolerance is 0.10 mm.

(3) Check the load-bearing strength of the 4 machine feet. The 4 machine feet must touch the

ground and be evenly loaded.

(4) Tighten the machine feet at the clamping screw to a torque of 130 Nm.

(5) Hit the feet with a hammer to check the load-bearing strength of the machine feet.

(6) Use the spirit level to ensure that the placement machine is precisely aligned.

PLEASE NOTE

Guaranteed handling accuracy of machine spirit level

 Make sure that the spirit level is always placed onto the support plate the same way

round when measuring the X and Y directions

4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3

4.3 Setting up the placement machine From software version SC.713.1 Edition 12/2020

218

Fig. 4.3 - 9 Measuring points on the placement machine
