2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2.5 Safety instructions for operating the SX1/SX2 placement mac hine From software version SC.713.1 Edition 12/2020 72 2.5.8 Safety instructions f…
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.5 Safety instructions for operating the SX1/SX2 placement machine
71
2.5.7 High temperatures on the X feeder modules during continuous operation
2
Fig. 2.5 - 2 High temperatures on the X feeder modules during continuous operation
(1) Temperature label, item no. 03031926-01
(2) Stepping motor
CAUTION
Risk of burns due to high temperatures!
The stepping motors can become very hot during continuous operation and in an ambient
temperature in excess of 22 °C.
Be careful when touching the motors.
(1)
(2)
(2)
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.5 Safety instructions for operating the SX1/SX2 placement machine From software version SC.713.1 Edition 12/2020
72
2.5.8 Safety instructions for manual movement of Z axis on TwinStar
2
2

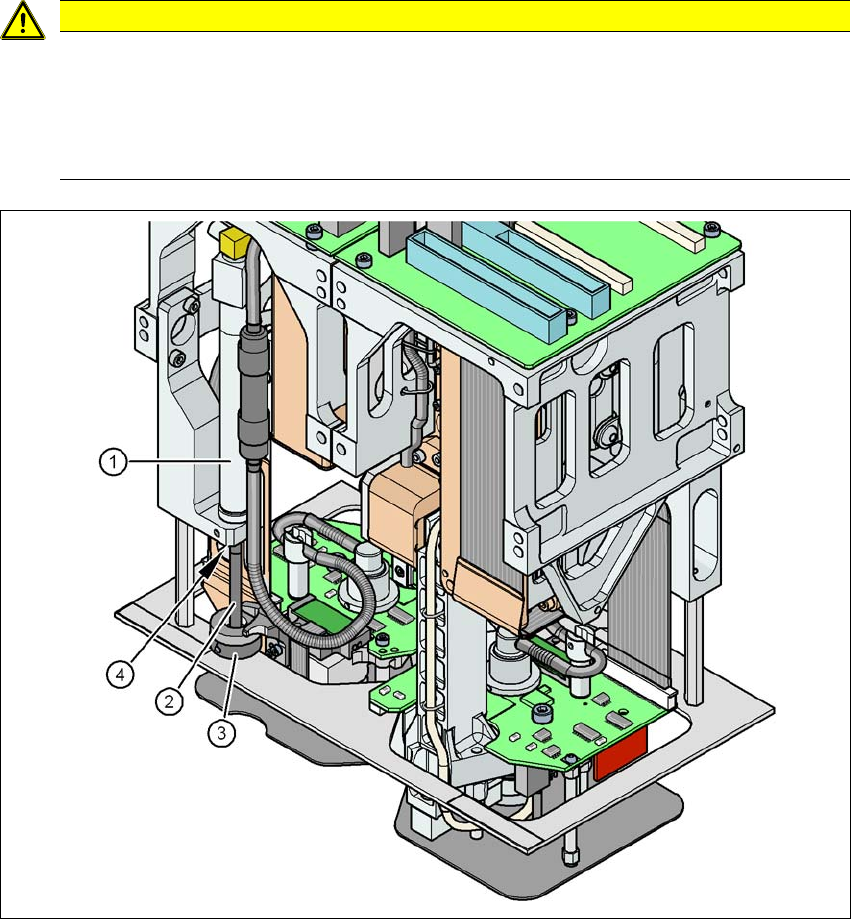

Fig. 2.5 - 3 Risk of crushing by return unit on TwinStar
(1) Return unit, compressed air cylinder
(2) Piston rod
(3) Bumper of the return unit
(4) Risk of crushing fingers here
CAUTION
Risk of crushing on TwinStar!
The strong spring tension of the cylinder moves the bumper back very quickly and could
injure your fingers. The same warning applies to the inside of the TwinStar, when the pis-
ton rod moves back to its original position.
NEVER move the Z axis down with your hand on the bumper of the return unit.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.5 Safety instructions for operating the SX1/SX2 placement machine
73
2.5.9 Safety instructions for changing the placement head on the TwinStar
2
2.5.10 Safety instructions for docking the component trolley in or out
2
2
2
2
WARNING
Risk of collisions!
When changing the placement head from a TwinStar/VHF to a SpeedStar, the SpeedStar
collides with the camera housing.
Dismantle the stationary cameras of type 33, 55 x 45, and type 25, 16 x 16 for the
TwinStar.
WARNING
Operation only with component trolley!
The placement machine may only be operated if there is a component trolley present and
docked at each location.
Fill any free locations with dummy feeder modules as described in
section 2.6.5
, page 2.6.5.
WARNING
DANGER OF CRUSHING!
Risk of crushing when docking and undocking the component trolley.
Always dock/undock the component trolley alone.
CAUTION
Risk of breaking handles!
Risk of breaking handles when transporting the component trolley.
When transporting the component trolley, do not lift it by its handles.
CAUTION
Risk of injuring limbs!
Risk of injuring limbs when docking and undocking.
When docking and undocking, make sure that there are no body limbs in the travel
area of the component trolley.
