2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2.2 Warning labels From software version SC.713.1 Edition 12/2020 60 2.2.1 1 High temperatures on th e Head Control Unit (MHCU) 1 in fig. 2.2 - 1 …

100%1 / 366
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
59
2.2.10.1 High temperatures on the SIPLACE CPP
2
1 in fig. 2.2 - 13, page 58 (quantity per SIPLACE CPP: 1)
2.2.10.2 Laser class 2 on the component sensor
2
Item W laser class 2 in fig. 2.2 - 13, page 58, item no. 03134118-01 (quantity per CPP: 1)
2
High temperatures on the SIPLACE CPP during continuous operation
Risk of burns due to high temperatures!
The
Z drive (linear motor) can develop high surface temperatures during
continuous operation, if the ambient temperature is greater than 22°C.
Be careful when touching the parts.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
60
2.2.11 High temperatures on the Head Control Unit (MHCU)
1 in fig. 2.2 - 14, page 60 temperature label, item no. 03031926-01 (2 to 4, depending on head
configuration).
2

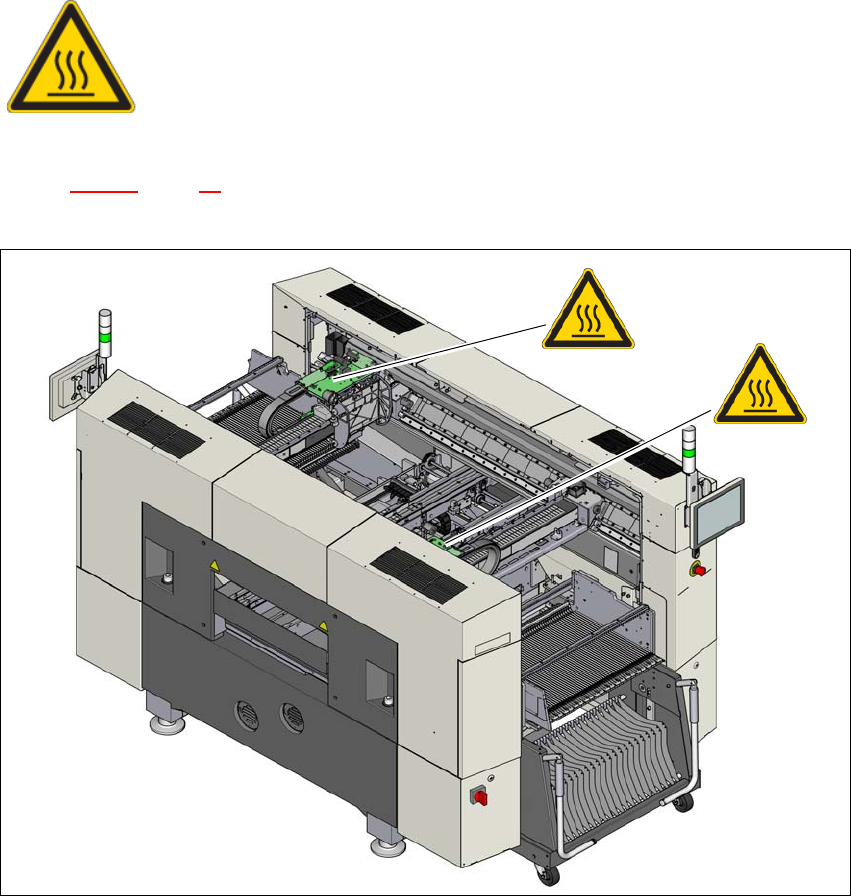

Fig. 2.2 - 14 Temperature label on the Head Control Unit (MHCU)
2
RISK OF BURNS DUE TO HIGH TEMPERATURES!
The housing of the Head Control Unit (MHCU) can become hot during con-
tinuous operation. Take care when touching the Head Control Unit (MHCU).
(1)
(1)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
61
2.2.12 "Head crash" label on the IC camera of the TwinStar
"Head crash" label in fig. 2.2 - 15, item no. 03015392-02
(quantity per placement machine: maximum 2)
2
Fig. 2.2 - 15 "Head crash" label on the IC camera of the TwinStar
(1) "Head crash" label on the IC camera of the TwinStar
WARNING RISK OF HEAD CRASH 2
When changing the placement head from a TwinStar/VHF to a
SpeedStar, the SpeedStar collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45,
and type 25, 16 x 16 for the TwinStar.
(1)
