1 Introduction Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 1.3 Placement machine description From software version SC.713.1 Edition 12/2020 26 1.3.5 Use as prescribed The prod uct may only be used for the areas …
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 1 Introduction
From software version SC.713.1 Edition 12/2020 1.3 Placement machine description
25
1.3.3 Placement machine serial number
The serial number of the placement machine can be found on the inside of the machine frame at
location 1.
1

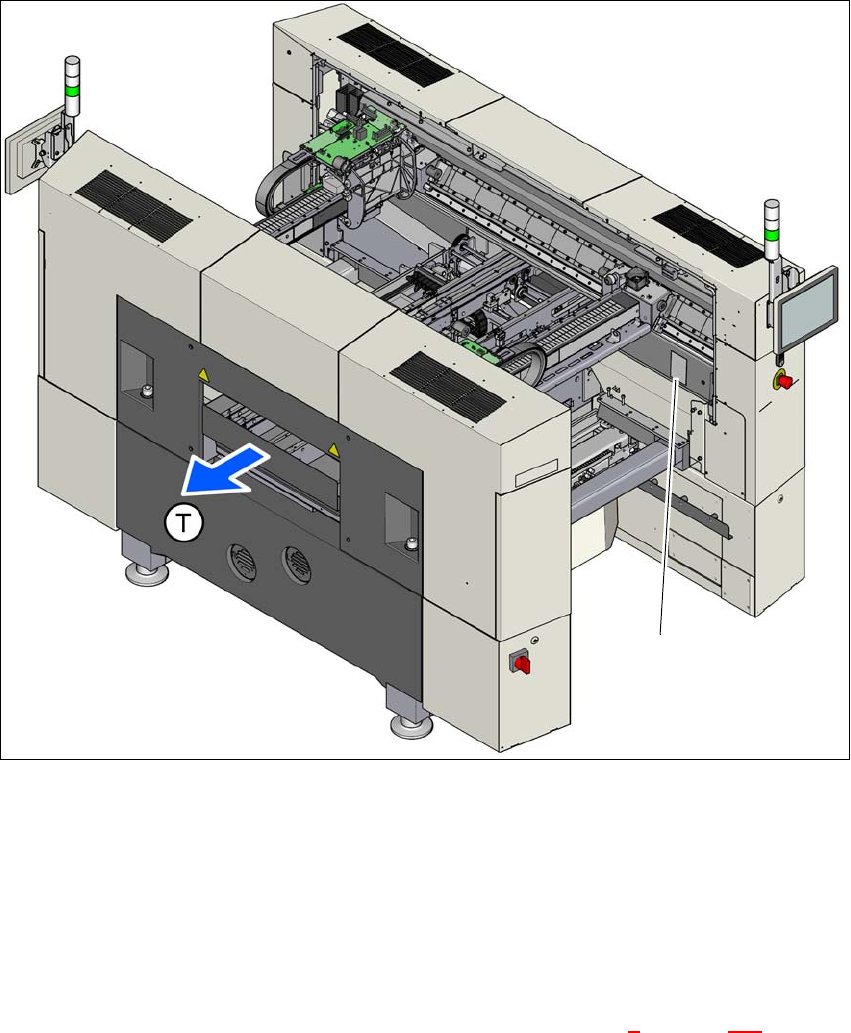

Fig. 1.3 - 1 Position of typeplate with serial number
(T) Direction of travel
(1) Typeplate
1.3.4 EC Declaration of conformity
The product described in this instruction manual is in accordance with the regulations and stan-
dards of the respective EC Declaration of Conformity. See also section 8
, on page 343,
(1)
1 Introduction Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
1.3 Placement machine description From software version SC.713.1 Edition 12/2020
26
1.3.5 Use as prescribed
The product may only be used for the areas of application specified in the catalogues and techni-
cal descriptions i.e. for the placement of SMD components and may only be used together with
the third party devices and components recommended or approved by ASM Assembly Systems
GmbH & Co. KG. Use for a different or extended purpose is not prescribed.
In the case of incorrect usage, ASM Assembly Systems GmbH & Co. KG will not assume liability
for any damage which occurs and will not guarantee the correct and proper function of machine
components.
Use as prescribed also includes compliance with all the instructions in the instruction manual.
For the product to operate correctly and reliably, it must have been transported, stored, erected
and assembled correctly and must be operated and maintained with care.
1.3.6 Failure to use as prescribed
Failure to use the product as prescribed can result in both danger to life and limb and material
damage. For this reason, used other than as prescribed is expressly prohibited. In the case of in-
correct usage,ASM Assembly Systems GmbH & Co. KG will not assume liability for any damage
which occurs and will not guarantee the correct and proper function of machine components.
Use of the placement machine other than as prescribed includes, for example
– Operation of the placement machine with safety equipment deactivated or removed.
– Placement of components that do not meet the permitted specification.
– Use of component feeder modules that have not been approved.
– Use of unauthorized accessories and additional modules.
– Use of the placement machine by unqualified personnel.
– Operation of the placement machine without the hand guard (dummy feeder module) if not
every location is occupied with a feeder module.
– Unclear allocation of electrical connecting cables to each placement machine and the in-
stalled options.
– If there are two or more people standing at a component trolley location at the same time
during the retrofit.
– Persons standing on the cover plates and protective hoods.
1.3.7 Noise emissions
1
Max. noise emissions 75 dB (A)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 1 Introduction
From software version SC.713.1 Edition 12/2020 1.3 Placement machine description
27
1.3.8 Important information about environmentally-friendly disposal
SIPLACE placement machines are preferably manufactured using materials and parts that can be
easily separated and disposed of in an environmentally-friendly way.
1
1.3.9 Electromagnetic compatibility (EMC)
SIPLACE placement machines are designed and tested for professional use in industrial applica-
tions. Electromagnetic compatibility in terms of the emission of interference cannot be guaranteed
in any other environment.
1.3.10 Note on original SIPLACE accessories
1
PLEASE NOTE
Proper, environmentally-friendly disposal
The owner of the system has sole responsibility for the proper environmentally-friendly
disposal of machines, working materials, consumables and wear parts.
Please observe your national statutory provisions for waste disposal and environ-
mental protection.
PLEASE NOTE
Use of original spare parts and authorized accessories
The use of other parts will affect safety and will invalidate the liability for any consequen-
tial damage.
Only use original spare parts and authorized accessories from ASM Assembly Sys-
tems GmbH&Co.KG.
