4 Setting up and commissioning Instruction manual SIPLACE SX1/SX 2 Edition V2 and V3 4.1 Transportation and delivery configuration F rom software vers ion SC.713.1 Edition 12/2020 190 4.1.5.4 Point s that MUST be noted w…
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning
From software version SC.713.1 Edition 12/2020 4.1 Transportation and delivery configuration
189
4
4

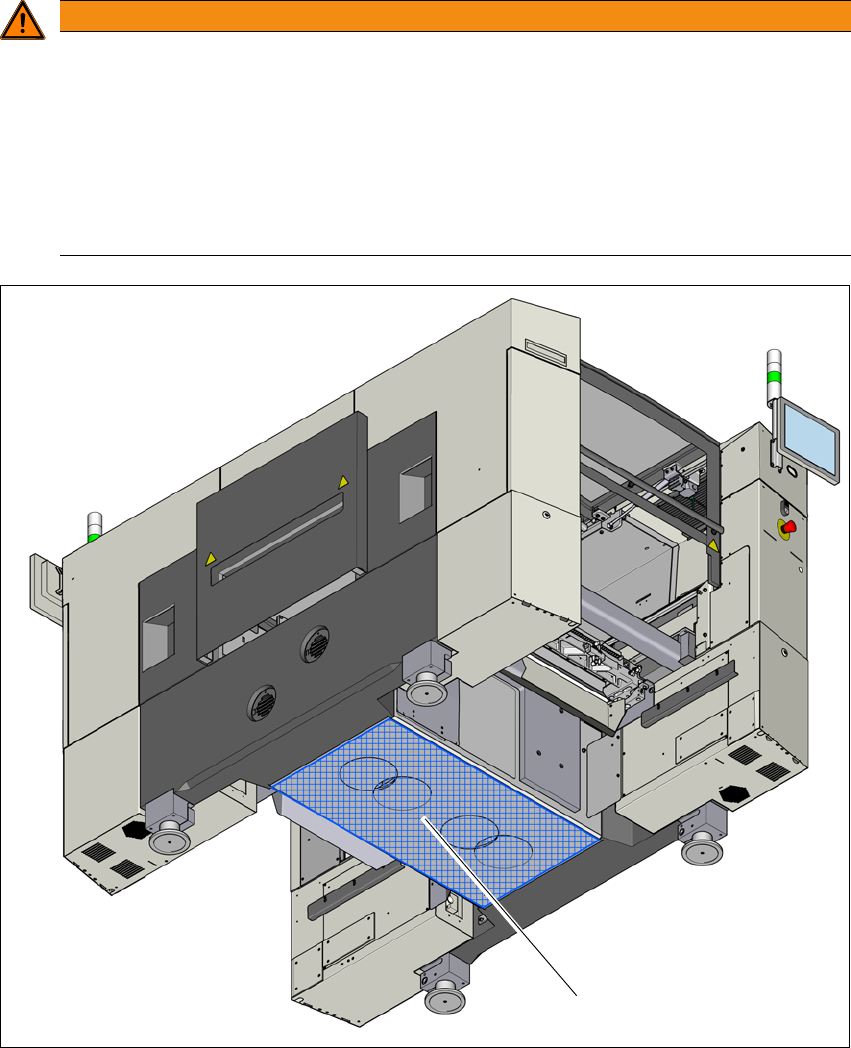

Fig. 4.1 - 3 Contact surfaces - Forks parallel to the direction of PCB transport
(1) Contact surface for fork lift truck forks
WARNING
Risk of damage due to one-sided loading!
One-sided loading of the machine feet e.g. from tilting the machine, can lead to deforma-
tion of the machine feet.
Make sure that the forks are evenly loaded when you lift the placement machine.
Use a firm support layer between the forks and the placement machine.
Enlist the help of a second person to watch while you lift the placement machine and
make sure that the placement machine does not tip over to one side.
(1)
4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
4.1 Transportation and delivery configuration From software version SC.713.1 Edition 12/2020
190
4.1.5.4 Points that MUST be noted when transporting the machine
4
4
WARNING
Risk of damage!
The thread for the machine feet in the machine frame could be damaged by being
dragged along the floor or from impact.
When you are transporting the machine, make sure that all the feet are clear of the
floor.
WARNING
Risk of damaging the exhaust air duct for the vacuum pump!
Vacuum pumps can be fitted in placement area 1. The exhaust air duct is fitted under the
machine base. This exhaust air duct could be damaged during transportation with the
fork-lift.
Dismantle the exhaust air duct before you transport the placement machine with the
fork-lift.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning
From software version SC.713.1 Edition 12/2020 4.2 Infrastructure at the installation location
191
4.2 Infrastructure at the installation location
4
4.2.1 Recommendations for foundation quality
The floor on which the placement machine is installed must be firm and level, as dynamic forces
could cause vibrations when the placement machine is operated. The degree of vibration depends
on the construction of the foundation. The following are suitable provided that the floor loading pa-
rameters, etc., are not exceeded:
– Reinforced concrete ceiling constructions, e.g. ceilings in production halls
– Reinforced concrete floor slabs, e.g. concrete floors in production halls without a basement
– Rooms with double floors, provided that a stable foundation is included in the space between
them. The same setup conditions apply to this intermediate foundation, which can be made
from steel girders or concrete.
4.2.1.1 Maximum ground levelness
The floor underneath the placement machine may not exceed an incline of 0.63%. This corre-
sponds to an incline of 5 mm over a distance of 800 mm.
4.2.1.2 Machine weight and floor loading
The machine weight and floor loading values can be found in section 3.5.1, page 110.
PLEASE NOTE
Also observe the document "Network and compressed air configuration for SMD systems"
(German+English, Item No. 00197548-xx), which is supplied with your SIPLACE place-
ment machine.
