3.7.5.3 Placement modes for the SIPLACE MultiStar CPP head
The SIPLACE Multistar CPP head functions with different placement modes, which vary according
to the component class. The setup optimization selects the placement mode with the shortest cy-
cle times. The following table shows the correlation between component class and placement
mode.
Tab. 3.7 - 2 Relations between component class and placement modes
3.7.5.4 Assembly positions of MultiStar in the placement machine
Placement mode Component class
Small component Medium sized
component
Large component
Collect&Place mode Yes No No
Mixed mode Yes Yes No
Advanced
Pick&Place mode
Yes Yes Yes
Placement machine Assembly
position
*a
MultiStar CPP head
Maximum component
height
Vision camera
SIPLACE SX1/SX2 Bottom 6.0 mm Head camera
Top 8.5 mm Head camera
Top only 15.5 mm
Stationary component
camera
Tab. 3.7 - 3Assembly positions of SIPLACE Multistar CPP head in the placement machines
*)a Please observe the rules for assembly position heights in section 3.7.5.1
, page 131.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies
From software version SC.713.1 Edition 12/2020 3.7 Placement head
133
3.7.5.5 SIPLACE MultiStar CPP in Collect&Place mode
The SIPLACE MultiStar CPP processes small components in this mode.
3
Fig. 3.7 - 8 SIPLACE MultiStar CPP- Collect&Place mode
K_BE Small component (see table 3.7 - 1, page 131)
Type 30 Component camera, type 30
1 ... 12 Order of components taken up
3
Type 30
K_BE
3 Technical data and assemblies Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
3.7 Placement head From software version SC.713.1 Edition 12/2020
134
3.7.5.6 SIPLACE MultiStar CPP in mixed mode with complete rotation
The MultiStar processes small to medium sized components in this mode.
3

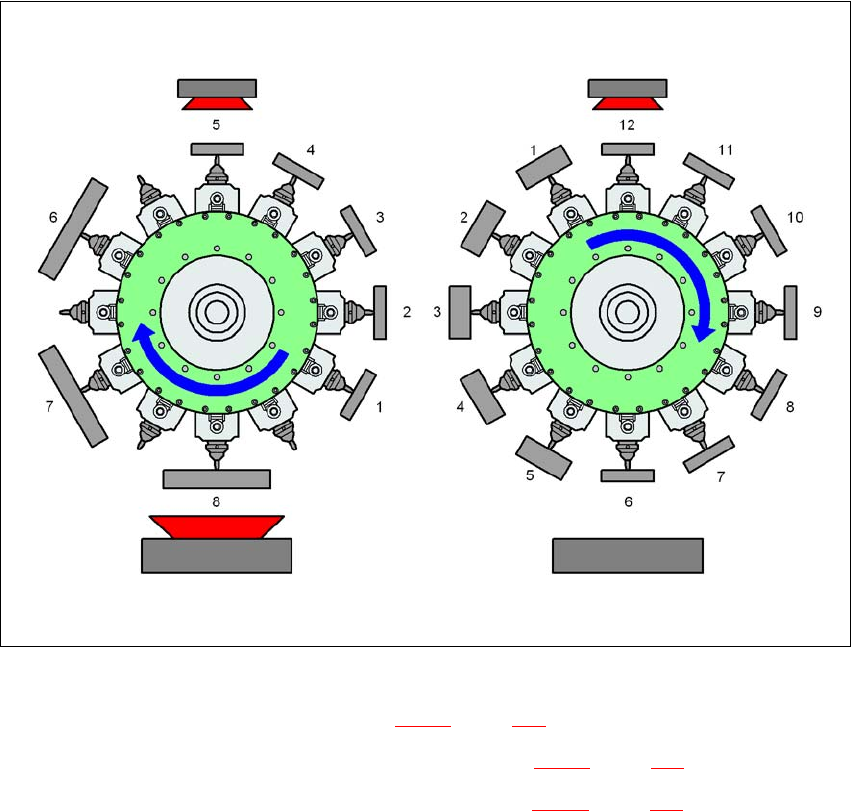

Fig. 3.7 - 9 SIPLACE MultiStar CPP - mixed mode
K_BE Small component (see table 3.7 - 1, page 131)
M_BE_1 Medium sized component, type 1 (see table 3.7 - 1
, page 131)
M_BE_2 Medium sized component, type 2 (see table 3.7 - 1
, page 131)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
1 ... 12 Order of components taken up
3
Neighboring segments of the SIPLACE MultiStar CPP head are not able to take up components
of type M_BE_2 if the diagonal length of the medium sized component, type 2 (M_BE_2) is longer
than 39.8 mm.
Type 30 Type 30
Type 33 Type 33
K_BE
M_BE_2
M_BE_1
K_BE
