4 Setting up and commissioning
4.1 Transportation and delivery configuration
4.1.1 Shipping packaging
Within Europe, the placement machine and component trolleys will be shipped on two wooden
pallets, packaged in plastic film. Outside Europe, the placement machine and component trolleys
are supplied in wooden crates.
4.1.1.1 Shipping packaging dimensions
The dimensions of the pallets and wooden crates are listed in the following table:
4

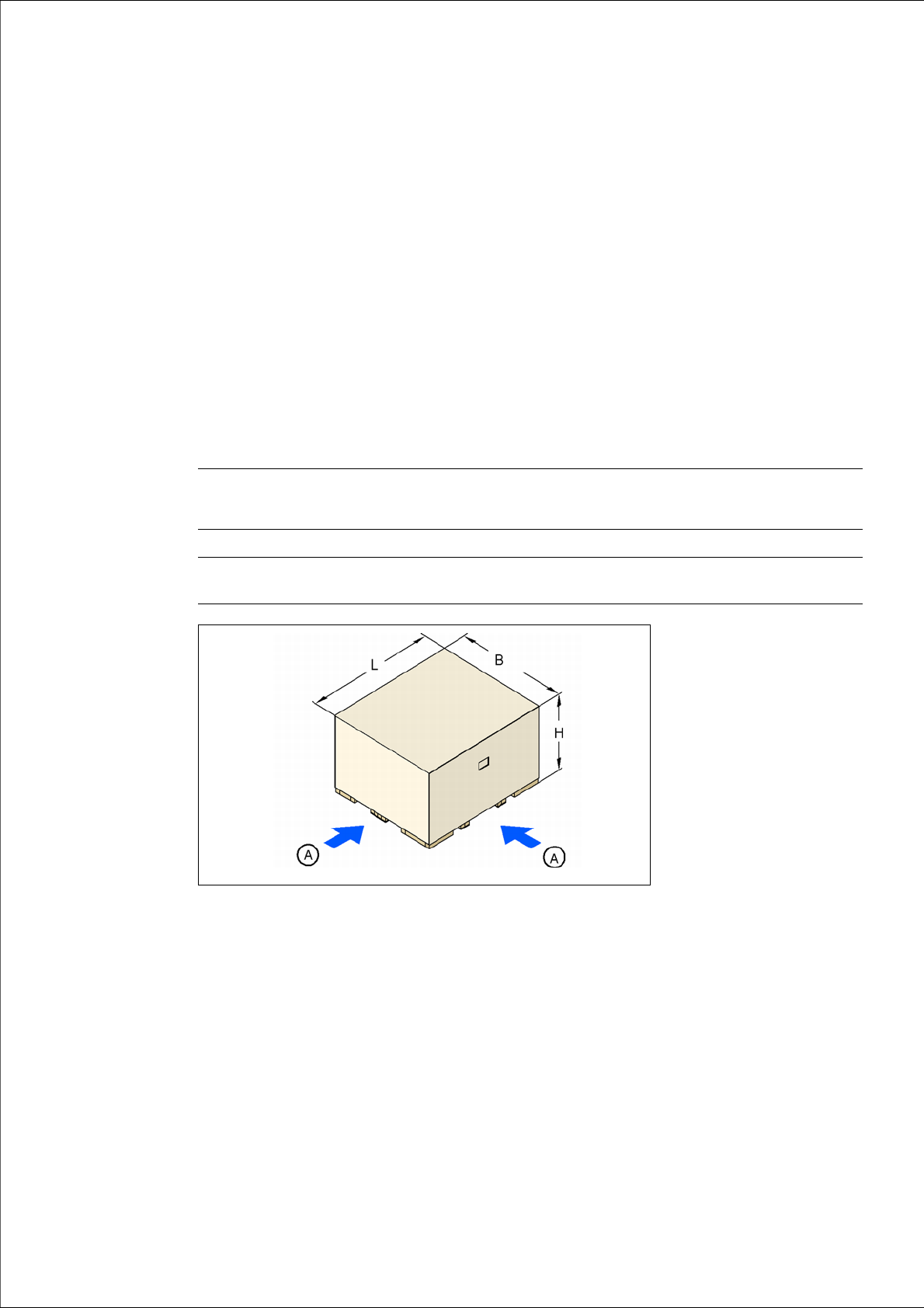

Fig. 4.1 - 1 Transport crate - dimensions in millimeters
(A) Fork-lift attachment points
Placement machine (L x
W x H)
Component trolley 60 (L
x W x H)
Component trolley 30 (L
x W x H)
Pallet 2630 mm x 1840 mm 2060 mm x 1350 mm 1700 mm x 1180 mm
Wooden
crate
2630 mm x 1840 mm x
1880 mm
2060 mm x 1350 mm x
1300 mm
1700 mm x 1200 mm x
1330 mm
4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
4.1 Transportation and delivery configuration From software version SC.713.1 Edition 12/2020
184
4.1.1.2 Weight of machine when ready for dispatch
The following table contains the weights of the placement machines prepared for dispatch, includ-
ing packaging.
4
4.1.2 Checking a delivery
Store the placement machine in the packaging until room temperature has been reached.
There is otherwise a risk of condensation occurring.
Check the delivery for damage.
Check the shock sensors on the transportation crate.
Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
Document the results in the installation report /acceptance protocol.
4.1.3 Configuration when delivered
The placement machine is configured as follows when delivered:
– The track on the single conveyor is set to a width of 210 mm. On the dual conveyor, the width
of conveyor lane 1 and lane 2 is 210 mm. This width setting will be important when fine-tuning
the placement machine.
– Both monitors are dismantled.
– Both indicator lamps are dismantled.
– All the gantry axes are fixed with shipping braces.
In addition for the SIPLACE SX1/SX2 V2 4
– Both keyboards are unplugged.
– The support sheets for the keyboards have been unhooked.
Placement
machine
Dispatch within Europe Dispatch overseas
SX1/SX2 2,500 kg 2,800 kg
Component trolley 230 kg 350 kg
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning
From software version SC.713.1 Edition 12/2020 4.1 Transportation and delivery configuration
185
4

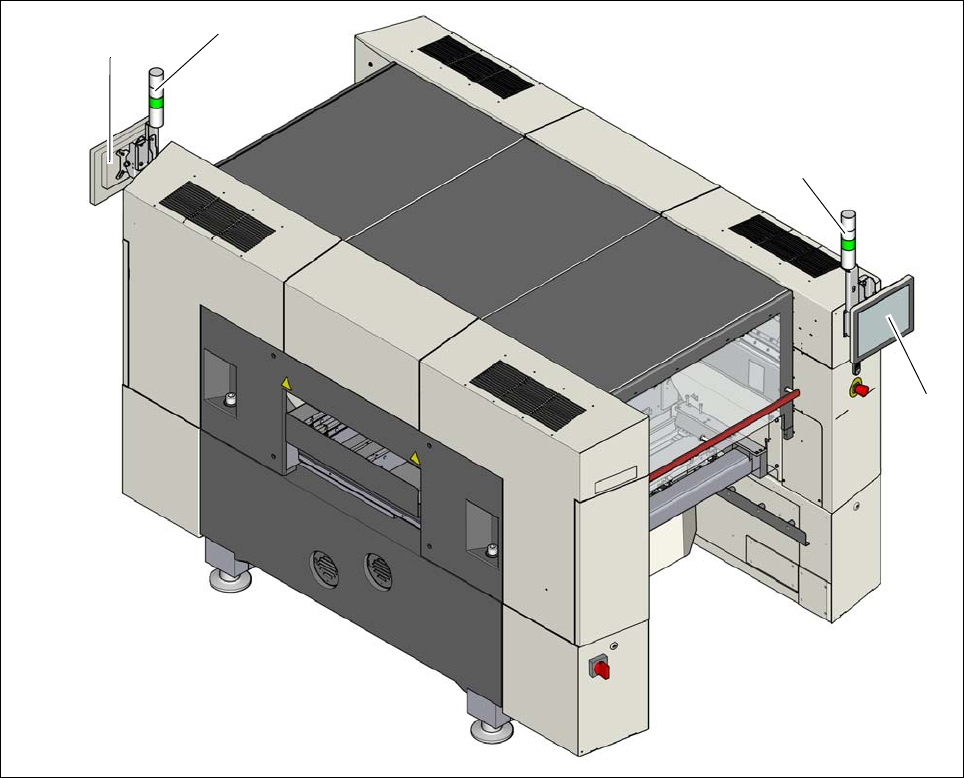

Fig. 4.1 - 2 SIPLACE SX1/SX2 delivery configuration
(1) Signal lamp (dismantled)
(2) Monitor (dismantled)
(1)
(2)
(1)
(2)
