Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
49
2
2.2.6 Warning label W 205 on tape cutter
2
Fig. 2.2 - 6 Warning label W 205 on the top of the tape cutter
Item W 205, item no. 03009344-01
CAUTION
Data loss due to powerful magnetic fields!
There is a risk that the powerful magnetic fields could corrupt data on data media or credit
cards and check cards.
Keep data carriers and check cards away from the placement machine.
W 205
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
50
2.2.6.1 Warn label W 205 on the used tape chute
2

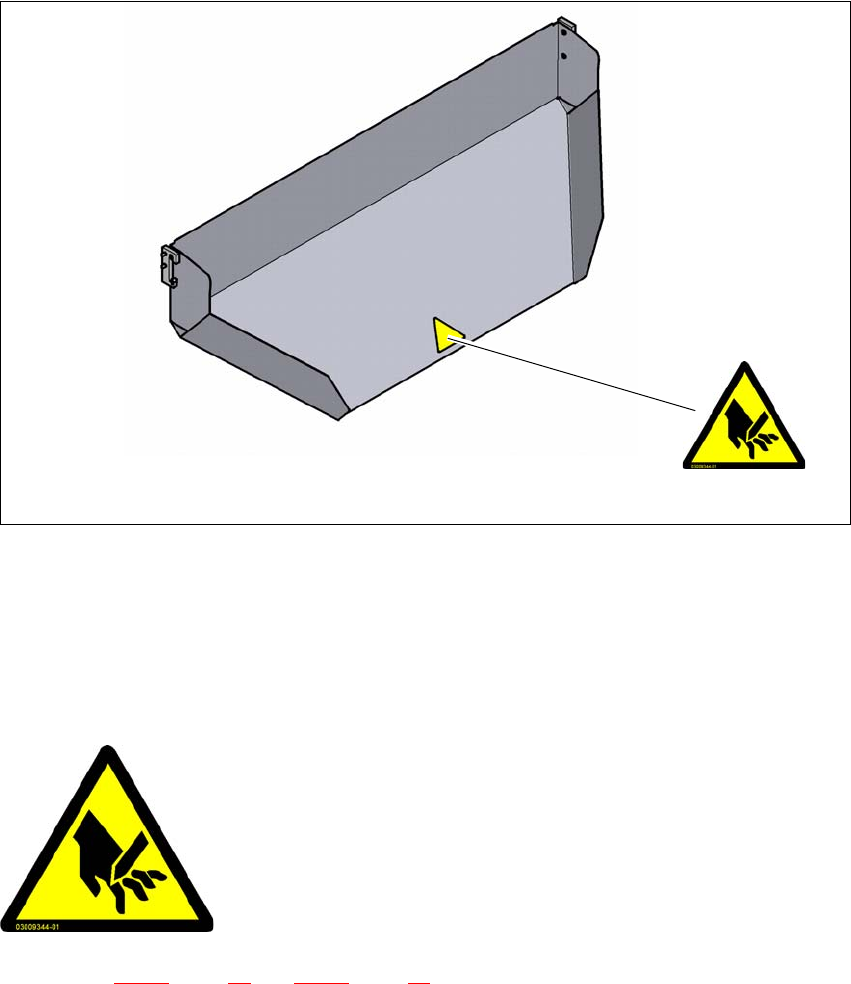

Fig. 2.2 - 7 Warn label W 205 on the used tape chute
Item W 205, item no. 03009344-01
2.2.6.2 Warning label W 205
Warning labels on tape cutter and used tape chute
2
W 205 in fig. 2.2 - 6, page 49 and 2.2 - 7, page 50, item no. 03009344-01 (quantity per placement
machine: 4)
W 205
2
2
2
2
2
2
2
2
RISK OF CUTTING!
There is still a risk of getting cut when the placement machine is
switched off
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
51
2.2.7 Warning labels on the power supply
2
W 012 in fig. 2.2 - 8, page 51 item no. 03009345-01 (quantity per placement machine: 3).
W 012 in fig. 2.2 - 10
, page 53 item no. 03009345-01 (quantity per placement machine: 2).
Fig. 2.2 - 8 Warning label W 012, cover for power supply
Item W 012, on the side cover to the power supply unit
Item W 012 on the lower cover
Item W 012 cover on the vacuum pump installation position
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off
and the mains plug has been disconnected.
Disconnect the placement machine from the mains before servic-
ing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W 012
