6 Station extensions
For the relevant configurations and other options, refer to the individual specifications for the SI-
PLACE placement machines.
6
6.1 Nozzle changer
The magazines are seated on a common support. They are centered with two parallel pins and
fixed in place with 4 push buttons. The exact position is determined with two fiducials on each
magazine. The correct seat of the magazines on the basic nozzle changer body is monitored by
microswitches, to prevent a collision of the placement head with any magazines projecting up-
wards. All magazine locations must be filled since the safety circuit stops the placement machine
in response to missing magazines or magazines that are not seated correctly.
PLEASE NOTE
When using the SIPLACE Smart Pin Support option, the maximum number of nozzle
changer magazines is reduced
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.1 Nozzle changer From software version SC.713.1 Edition 12/2020
292
6.1.1 Nozzle changer for the SIPLACE SpeedStar C&P20 P2 /C&P20 P
6.1.1.1 Nozzle changer with 4 magazines
Item no. 03147925-xx Nozzle changer for CPx, short
Item no. 03101503-xx Nozzle magazine 60xx/40xx with 20 garages
Item no. 03218226-02 Nozzle magazine type 40xx assy. / NCS
6

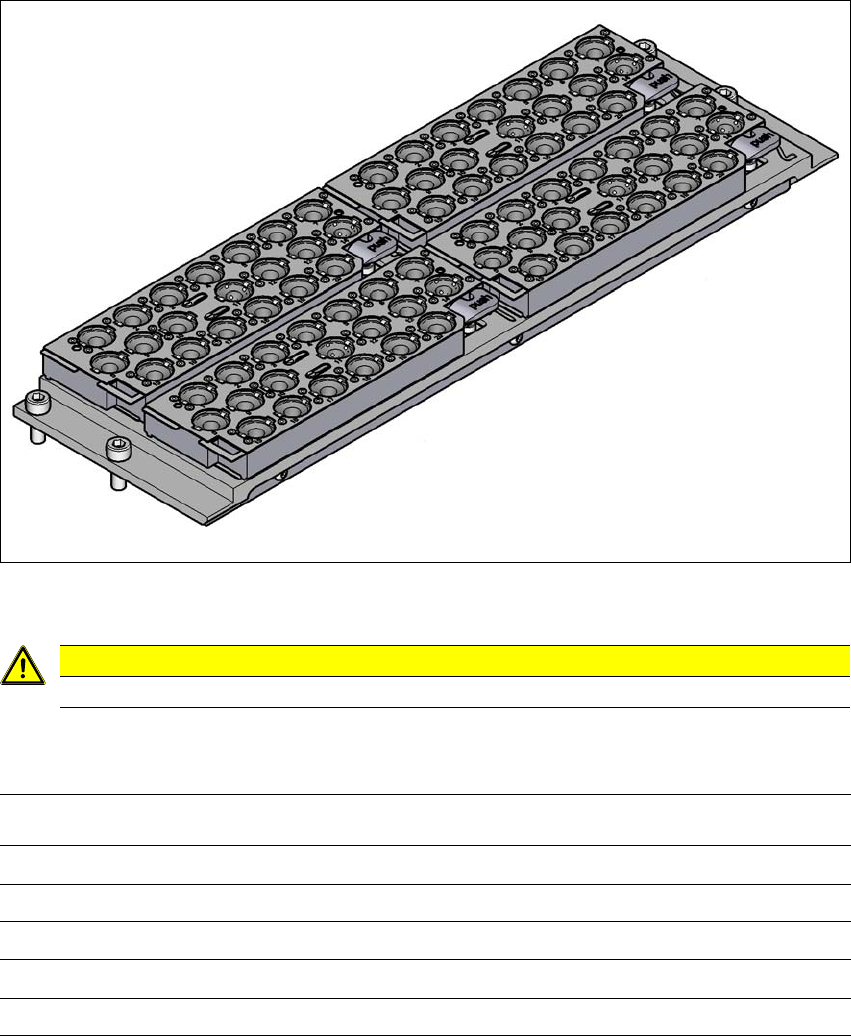

Fig. 6.1 - 1 Nozzle changer for the SIPLACE SpeedStar C&P20 P2 / C&P20 P with 4 magazines
6
6.1.1.2 Technical data
6
CAUTION
Only use the magazine for the SIPLACE SpeedStar together with the SpeedStar.
Nozzle changer for the SIPLACE SpeedStar
Dimensions (length x width x height) 314 mm x 94.5 mm x 68.6 mm
Number of nozzle holders 80
Number of nozzle magazines 4
Nozzle types C&P20 P2 60xx/40xx
Nozzle types C&P20 P 40xx
