Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine From software version SC.713.1 Edition 12/2020 5.15 Docking the c omponent trolley in or out 285 5 Fig. 5.15 - 3 Component trolley - s…

5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3

5.15 Docking the component trolley in or out From software version SC.713.1 Edition 12/2020

284

5.15.2 Docking out the component trolley

 Go to the main view of the station software and select the Feeder module... icon and

then the

Locations icon.

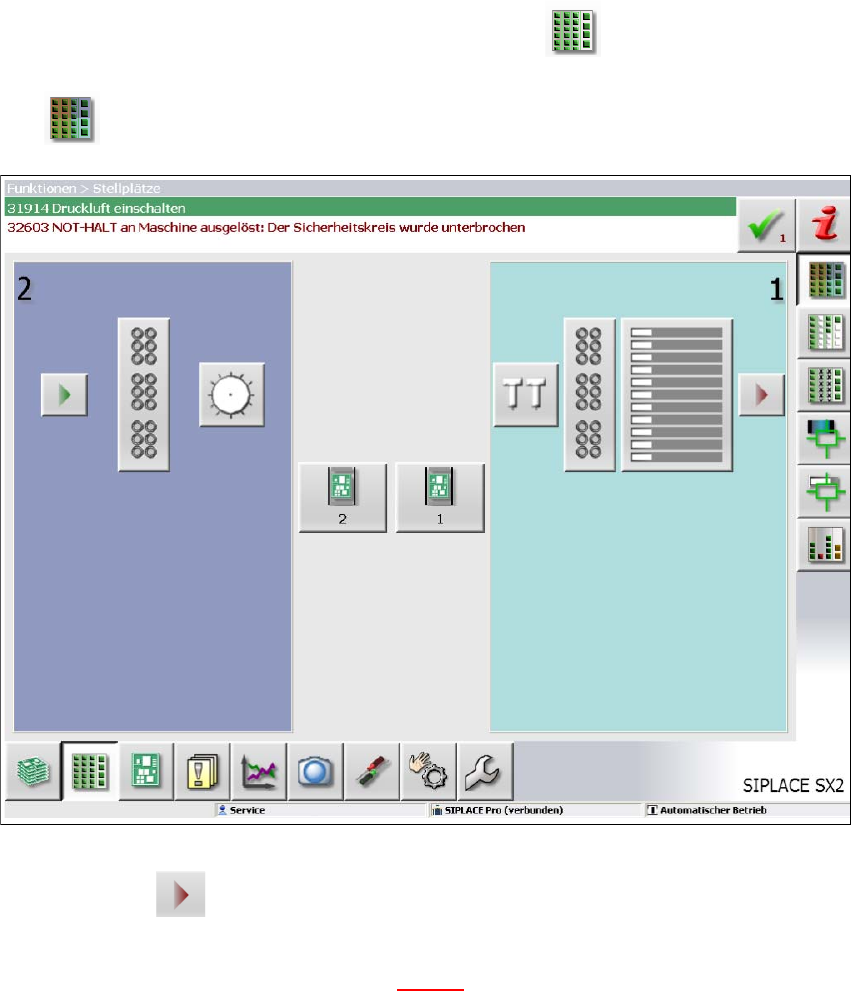

Fig. 5.15 - 2 SC GUI - locations

 Click on the icon to release the respective location and wait until the locking device

opens. For further information, refer to the station software Online Help.

 Swivel the two handles up (item 1 in fig. 5.15 - 3).

Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine

From software version SC.713.1 Edition 12/2020 5.15 Docking the component trolley in or out

285

Fig. 5.15 - 3 Component trolley - swivel handles up to push

 With both hands on the handles, pull the component trolley out of the placement machine.

5.15.3 Safety instructions for moving the component trolley

 Always hold the handles with both hands when you want to move the component trolley.

 Remember that a component trolley with the full complement of feeder modules can tip over

sideways or forward on gradients of 20° or more.

 Make sure that the surface on which the trolley is moved has a significantly smaller gradient.

 The floor underneath the placement machine may not exceed an incline of 0.63%. This cor-

responds to an incline of 5 mm over a distance of 800 mm (e.g. the width of a changeover

table).

 Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast

enough.

WARNING

Avoid accidents!

To prevent accidents, ALWAYS follow the rules listed below when you move the compo-

nent trolley.

5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3

5.15 Docking the component trolley in or out From software version SC.713.1 Edition 12/2020

286

5.15.4 Docking the component trolley

Fig. 5.15 - 4 Docking the component trolley

(1) Locking latches

(2) Height setting for fine adjustment to the machine height

CAUTION

Pushing in component trolley!

 When pushing the component trolley into the placement machine, make sure that

you do not hit obstacles with the locking latches.

(2)

(1)
