Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station e xtensi ons From software version SC.713.1 Edition 12/2020 6.3 Input conveyor extension 307 6.3 Input conveyor extension Item no. 00520560.xx Input conveyor…
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.2 PCB barcode scanner From software version SC.713.1 Edition 12/2020
306
6.2 PCB barcode scanner
6.2.1 Description
The PCB barcode reader is used to automatically record and decode barcodes on PCBs. The
PCB barcode scanners are installed on the input conveyor extension on the input side of the
placement machine on the PCB conveyor. Depending
on the position of the barcode strips, the barcode scanner can be attached in a few simple
steps so that the strips can be read parallel to or across the PCB transport direction.
When using single conveyors, two board barcode readers can be retrofitted. These can either
scan the top or bottom of the boards.
When using dual conveyors, four board barcode readers can be retrofitted. These can scan both
the top or bottom of the boards on both conveyor lanes.
The following barcode readers are available:
– 2D board code reader
This code reader processes barcodes and matrix codes. Matrix code is primarily used when
there is
not enough space for barcode labels.
6
6.2.2 Technical data - 2D code reader
6
Dimensions (L x W x H)
55 x 42 x 22 mm
3
Weight 125 grams
Code types 2D Data Matrix ECC 0, 50, 80, 100, 140 and 200
Data Matrix ECC200
QR Code, MicroQR Code
Barcode length
Single conveyor
Dual conveyor, asynchronous
Dual conveyor, synchronous
Max. 40 characters
Max. 40 characters
Max. 40 characters
Data interface RS232, USB 2.0
Electrical connection 15-pin D-Sub HD plug
Operating voltage 5 V- to 24 V-
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.3 Input conveyor extension
307
6.3 Input conveyor extension
Item no. 00520560.xx Input conveyor extension for single conveyor
Item no. 00520561.xx Input conveyor extension for dual conveyor
6.3.1 Description
The PCB barcode scanners can be fitted to the input conveyor extension.
6

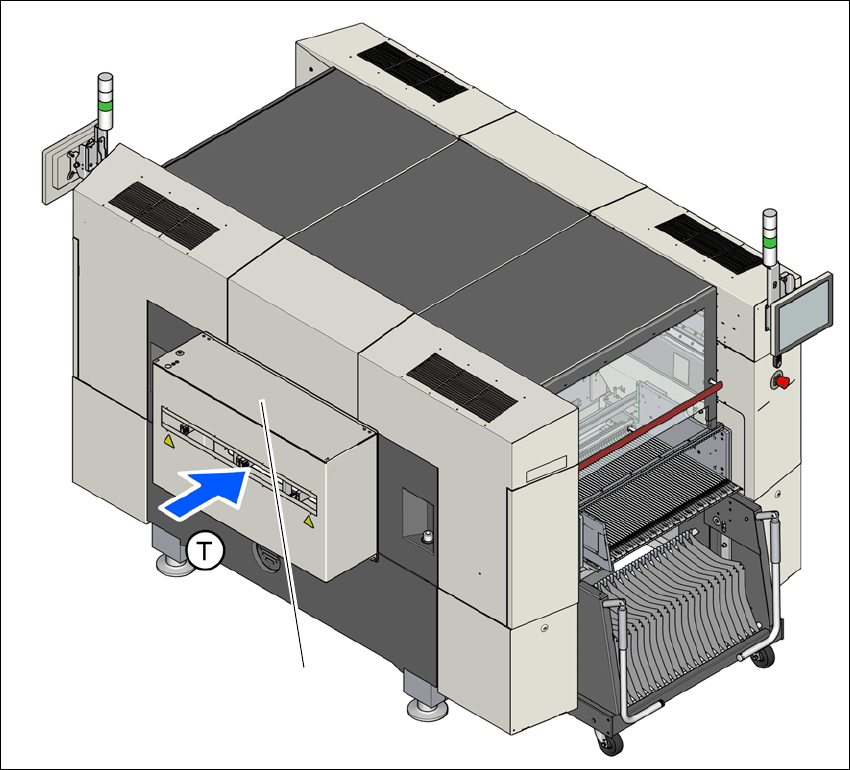

Fig. 6.3 - 1 Input conveyor extension for the SIPLACE SX1/SX2
(1)
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.4 Waffle pack changer (WPC5/WPC6) From software version SC.713.1 Edition 12/2020
308
6.4 Waffle pack changer (WPC5/WPC6)
The functionality and the technical data for the WPC5 are largely identical to those for the WPC6.
However, the WPC6 also has a non-stop module.
6.4.1 Description
The waffle pack changer makes components available in the waffle pack trays, to avoid unneces-
sary loss of time during storage and automatic changing of the waffle pack trays. The individual,
programmable access to up to 28 waffle pack trays also increases the range of components avail-
able.
The waffle pack changer has an integral chassis, and is easy to move to other locations. It is sup-
plied with the PCB conveyor height set for the customer-specific placement machine but can be
quickly and easily adapted to conveyor heights of 900, 930, and 950 mm. The changeover table
with 30 locations needs to be set up on the remaining location.
