6 Station extensions Instructio n manual SIPLACE SX1/SX2 Edition V2 and V3 6.1 Nozzle changer From software version SC.713.1 Edition 12/2020 294 6.1.2 Nozzle changer for th e SIPLACE MultiSt ar CPP 6.1.2.1 Nozzle changer…
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.1 Nozzle changer
293
6.1.1.3 Position of the nozzle changer for the SIPLACE SpeedStar
6

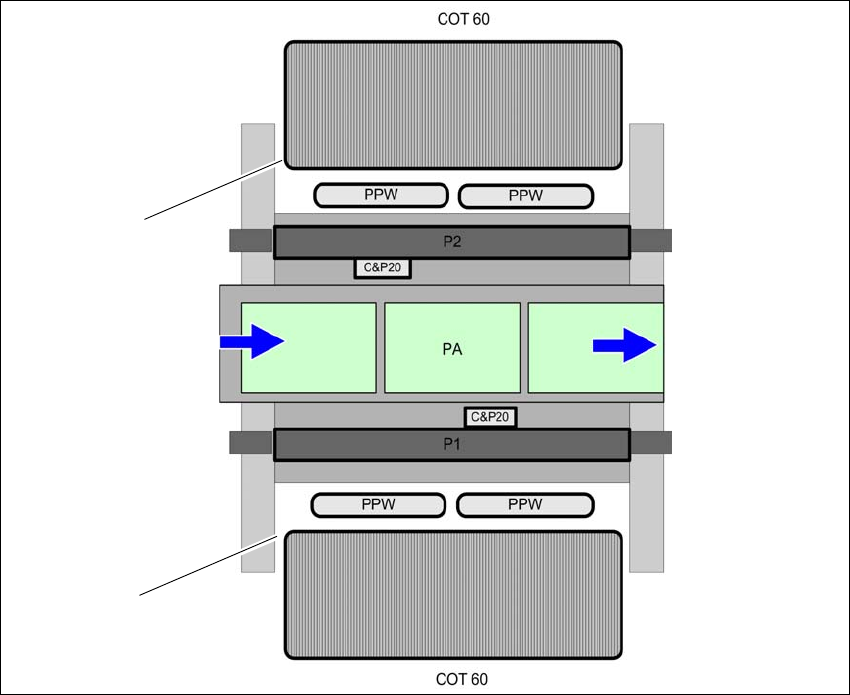

Fig. 6.1 - 2 Position of nozzle changer for the SIPLACE SpeedStar - example
(1) Component trolley in the inner position
(NC) Nozzle changer
(PA) Placement area
(1)
(1)
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.1 Nozzle changer From software version SC.713.1 Edition 12/2020
294
6.1.2 Nozzle changer for the SIPLACE MultiStar CPP
6.1.2.1 Nozzle changer with 4 magazines
Item no. 03147925-xx Nozzle changer for CPx, short
Item no. 03135469-xx Nozzle magazine 20xx with 20 garages
Item no. 03065782-xx Nozzle magazine 28xx with 9 garages
Item no. 03226630-01 Nozzle magazine type 20xx with 20 garages and 3 fiducials
6

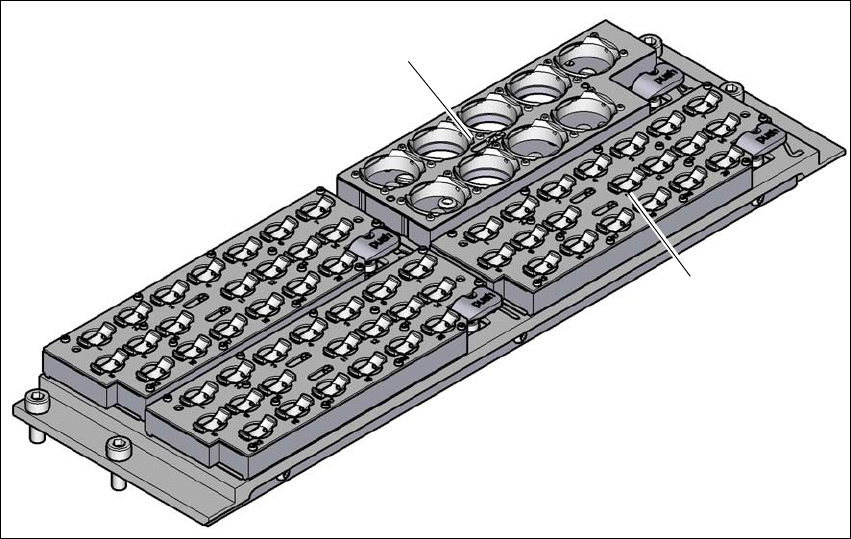

Fig. 6.1 - 3 Nozzle changer for the SIPLACE MultiStar with 4 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
(1)
(2)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.1 Nozzle changer
295
6.1.2.2 Nozzle magazine with 20 garages for 20xx nozzles
6

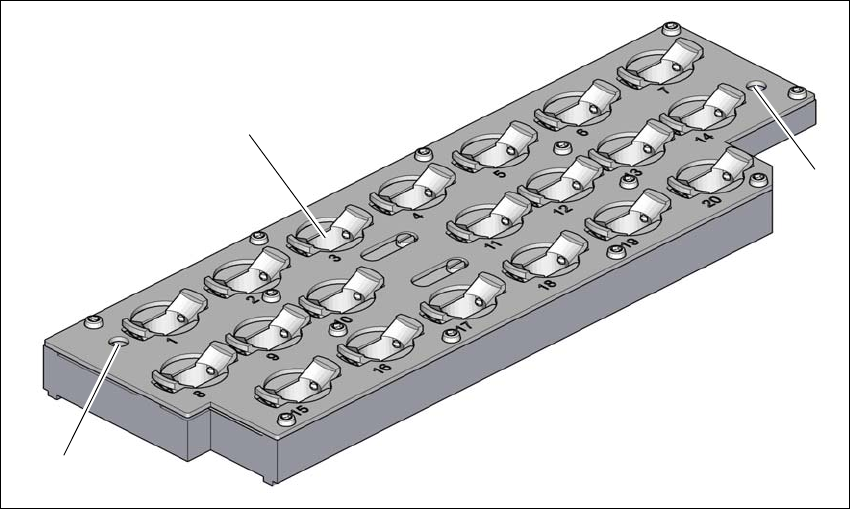

Fig. 6.1 - 4 Nozzle magazine for 20xx nozzles with 20 garages - locking plate open
(1) 20 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(2)
(1)
(2)
