Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.6 Safety features
79
Adjust the height on the outer plate for each product so that nobody can reach into the board
conveyor from below.
Adjust the height on the outer plate for each product so that nobody can reach into the board
conveyor from above.
Adjust the height so that the board with the components can be transported safely through
the conveyor system.
2
PLEASE NOTE
Maximum height of board
Observe the maximum height of the board with the highest component.
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.6 Safety features From software version SC.713.1 Edition 12/2020
80
2.6.3 Switches and buttons on the placement machine
2.6.3.1 Position of switches and buttons on the placement machine
2

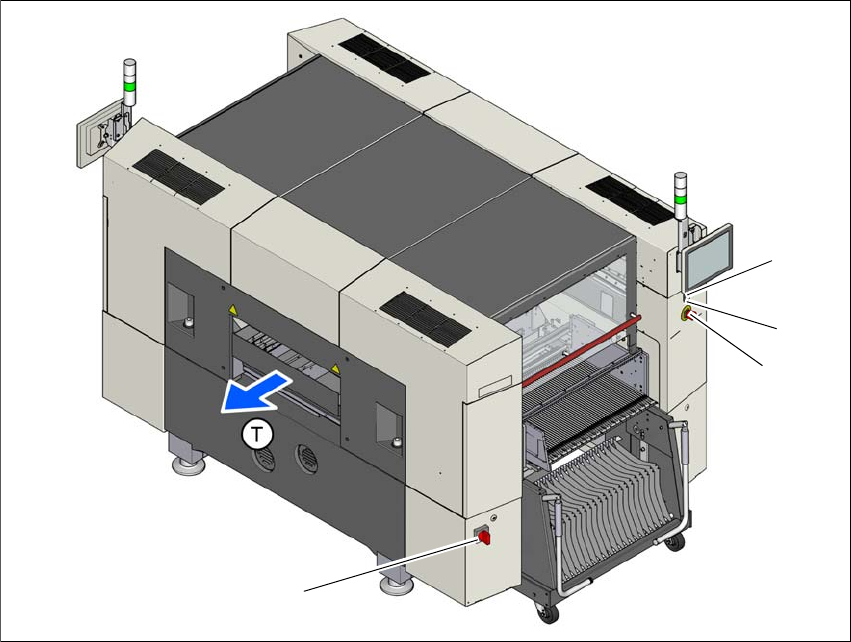

Fig. 2.6 - 4 Position of switches and buttons - View of the PCB output side
(1) Main switch
(2) Start button (white)
(3) Stop button (black)
(4) EMERGENCY STOP button
(T) PCB transport direction
(2)
(1)
(3)
(4)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.6 Safety features
81
2
Fig. 2.6 - 5 Position of switches and buttons - View of the PCB input side
(1) EMERGENCY STOP button
(2) Start button (white)
(3) Stop button (black)
(T) PCB transport direction
(2)
(1)
(3)
