2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.5 Safety instructions for operating the SX1/SX2 placement machine From software version SC.713.1 Edition 12/2020
74
2.5.11 Safety instructions for emptying the waste tape container
The waste tape container must be pulled out of the component trolley for emptying. There is a risk
of catching your thumbs as you do so. To prevent this, observe the safety instructions in section
5.8.2
, page 260.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.6 Safety features
75
2.6 Safety features
2.6.1 Protective covers
The protective hoods and covers serve as protective devices which prevent unauthorized access
to the inside of the placement machine.
2
2

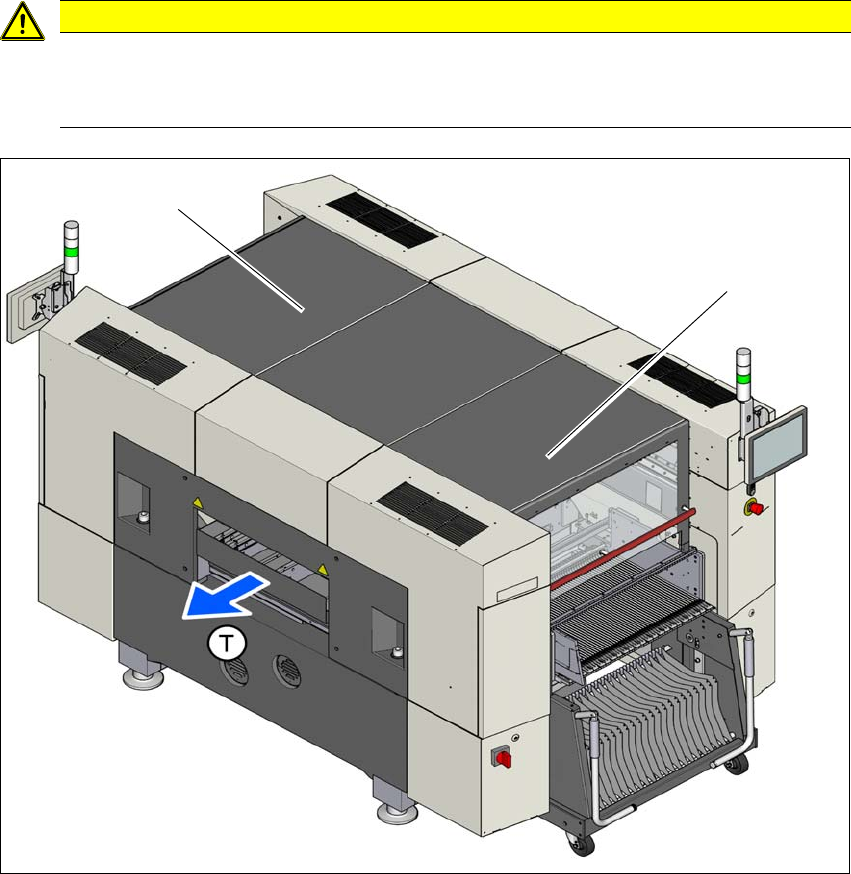

Fig. 2.6 - 1 Protective covers
(1) Protective cover location 1
(2) Protective cover location 2
The travel range of the gantries is protected with two covers which can be opened (items 1 and 2).
CAUTION
Risk of damage!
The protective covers and other covers could be damaged if too much force is exerted.
Do not stand on or climb up the protective covers and other covers.
(1)
(2)
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.6 Safety features From software version SC.713.1 Edition 12/2020
76
Function 2
If one of the protective covers is opened upwards, the power supply to the gantry axes will be im-
mediately interrupted. The gantry axes stop moving. The message "Close cover" is displayed on
the screen.
Close the protective covers and press the START button (item 1 in fig. 2.6 - 2), to continue
placement.
2
Fig. 2.6 - 2 Position of start-stop button on the placement machine
(1) Start button (white) on the placement machine
(2) Stop button (black) on the placement machine
(2)
(1)
