2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2.5 Safety instructions for operating the SX1/SX2 placement mac hine From software version SC.713.1 Edition 12/2020 70 2.5.6 Safety instructions f…
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.5 Safety instructions for operating the SX1/SX2 placement machine
69
(2) If the cover foil tears, the operator must remove any components remaining on the tape.
To prevent tantalum capacitors which were not picked up from causing the tape material to burn
when it is cut, the user interface has been extended to include the option "Stop immediately on
pickup error". This option must be enabled in SIPLACE Pro. On the placement machine, the com-
ponent that was not picked up is paced forward again until it is ready for removal from the com-
ponent tape. The track is deactivated and the operator is sent an error message to remind him to
pick up the tantalum component from the tape.
2
2.5.4 Information about ESD safety of placement machine
2
2.5.5 Safety instructions for correct fitting of the reject bin
Observe the following instructions to avoid risk of collision between the placement head and com-
ponent or the nozzle reject bin:
Make sure, that the reject bin is seated correctly in its mount.
Check that the reject bin does not project over the mount.
2
PLEASE NOTE
Manual removal of tantalum capacitors not picked up
A description of how the operator can manually remove those tantalum capacitors which
were not picked up can be found in section 3.10.1.2
, page 155.
PLEASE NOTE
Conditions for ESD safety of the placement machine
Only use nozzles that are identified as conductive.
PLEASE NOTE
A sensor (see section 6.8, page 325) which indicates the correct position of the reject bin
can be retrofitted for each reject bin.
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.5 Safety instructions for operating the SX1/SX2 placement machine From software version SC.713.1 Edition 12/2020
70
2.5.6 Safety instructions for using the nozzle changer
Observe the following instructions to avoid risk of collision between the placement head and the
nozzle changer.
2
2
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
WARNING
Risk of head crashes with protruding lever!
A lever which projects above the magazine could lead to a placement head crash.
You should therefore make sure that the lever does not protrude over the magazines.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.5 Safety instructions for operating the SX1/SX2 placement machine
71
2.5.7 High temperatures on the X feeder modules during continuous operation
2

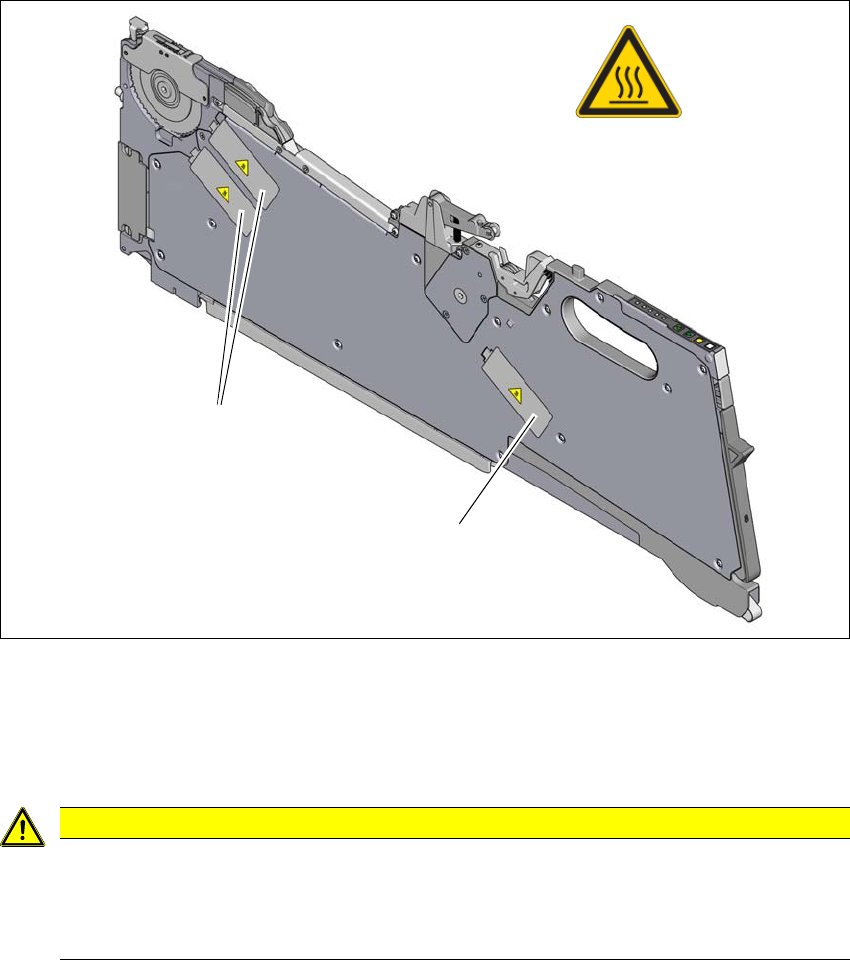

Fig. 2.5 - 2 High temperatures on the X feeder modules during continuous operation
(1) Temperature label, item no. 03031926-01
(2) Stepping motor
CAUTION
Risk of burns due to high temperatures!
The stepping motors can become very hot during continuous operation and in an ambient
temperature in excess of 22 °C.
Be careful when touching the motors.
(1)
(2)
(2)
