Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
45

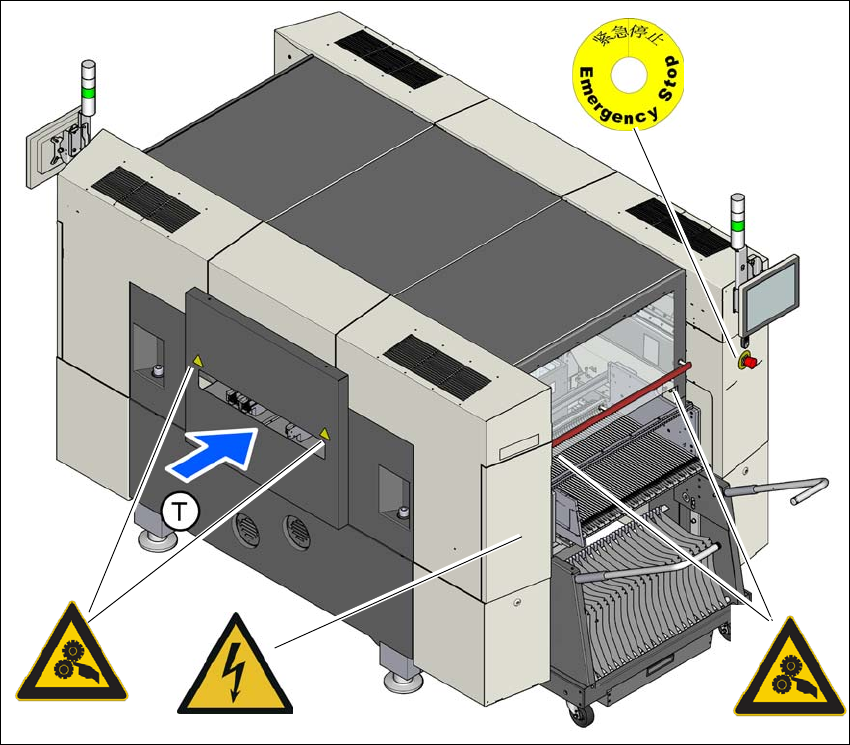

Fig. 2.2 - 4 Warning labels on the placement machine - location 2 - labels for China
Item W 204-CN, item no. 03149290-01
Item W 209-CN, item no. 03149080 -01
Item W 012, item no. 03155378-01
(T) Direction of PCB transport
W 204-CN
W 204-CN
W 209-CN
W 012
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
46
2.2.4 Meaning and description of warning labels (label for China)
The following labels for Chinese customers look different to the standard labels (rest of world).
2.2.4.1 Warning label W 210-CN
2
Item W 209-CN in fig. 2.2 - 3, page 2.2 - 3 and 2.2 - 4, page 2.2 - 4, item no. 03149080-01
(Quantity per placement machine: 2)
2.2.4.2 Warning label W 204-CN
2
Item W 204 in fig. 2.2 - 3, page 44 and 2.2 - 4, page 45, item no. 03149290-01 (quantity per place-
ment machine: 8)
2.2.4.3 Warning label W 004-CN with laser text label
2
Item W 004-CN in fig. 2.2 - 3, page 44, item no. 03155348-01 (quantity per placement machine: 1)
Laser text label in fig. 2.2 - 3
, page 44, item no. 03155432-01 (quantity per placement machine: 1)
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
2
2
2
Warning about hand injuries
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the running placement machine.
Do not reach into the inside of the adjacent placement ma-
chine
2
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
47
2.2.5 Warning labels in the placement machine
Fig. 2.2 - 5 Warning labels in the placement machine
2
Item W 006, item no. 03155812-01 (on the side panel, center, above the Y gantry)
Item W 006-P007, item no. 03155831-01 (front and back on X gantry)
W 006
W 006-P007
W 006-P007
