Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.7 Indicator lamps with horn
257
5.7.2.3 Configuration of two-color indicator lamp and audio signal

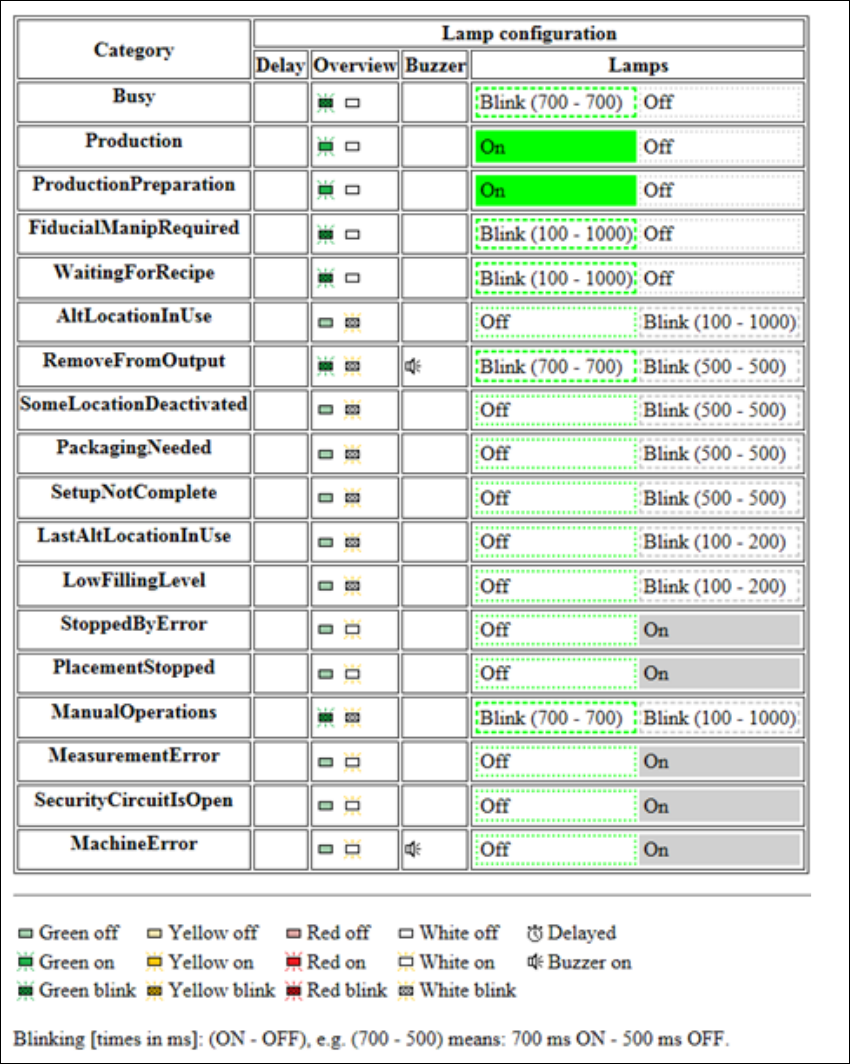

Fig. 5.7 - 4 Configuration of two-color indicator lamp and audio signal
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.7 Indicator lamps with horn From software version SC.713.1 Edition 12/2020
258
5.7.2.4 Indicator lamp with audio signal - five color (optional for SIPLACE SX1/SX2 V3)
The sequence of colors for the indicator lamps L1 to L5 can be configured as wished: These lamps
are used to signal operating statuses and malfunctions of the placement machine. See also
Sec-
tion 5.7 on page 254
.

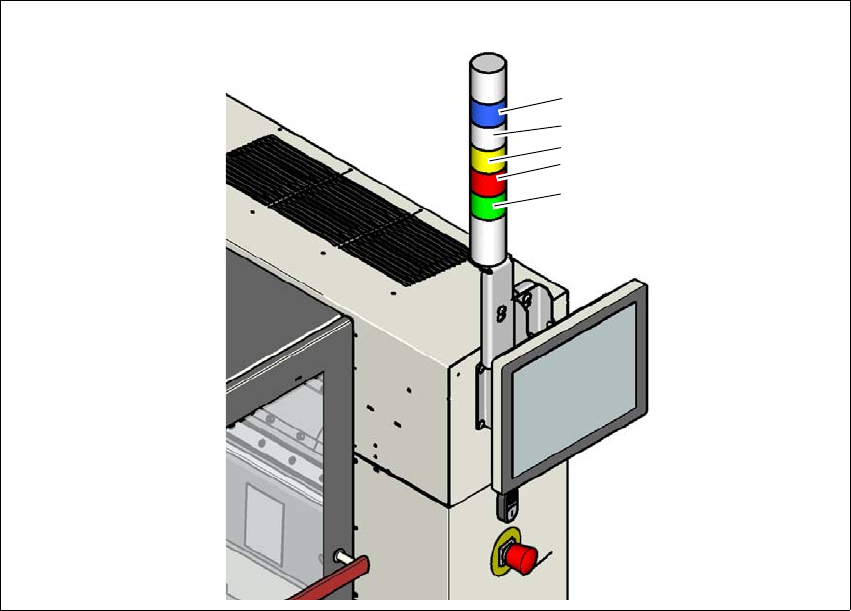

Fig. 5.7 - 5 Indicator lamps for operating states
5
(L2)
(L1)
(L3)
(L4)
(L5)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.8 Shift changeover
259
5.8 Shift changeover
5.8.1 Shift changeover tasks
Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift
starts. This minimizes extended down times.
At the shift change, pass important information on to the next operator. This includes, for in-
stance, changes to the placement program. Also read through the list of the descriptions of
the steps to take in section 5.12
, page 279.
Carry out a setup check.
Make sure that the feeder modules are equipped with the correct components, that they are
at the correct locations in the component trolley and that the conveyor increment is set cor-
rectly.
Clean the following line assemblies:
Empty the reject bin and carefully vacuum the area around the reject bin.
Carefully vacuum the nozzle changer, feeder modules and the component trolley.
Empty the waste tape container. Follow the safety instructions given in section 5.8.2, page
260
.
Empty the tray for the machine cover.
