Pull the cover foil at the side of the pick-up window forward and out underneath the pick-up
window.
Fold the cover foil back until it lies against the pull-off edge (item 3 in fig. 5.10 - 5, page 273).
5
Push the lever (item 5 in fig. 5.10 - 5, page 273) back to lower the pickup window.
Guide the cover foil over the cover foil rocker (item 2 in fig. 5.10 - 7) until it reaches the foil
packing wheels (item 1 in fig. 5.10 - 7
).
5

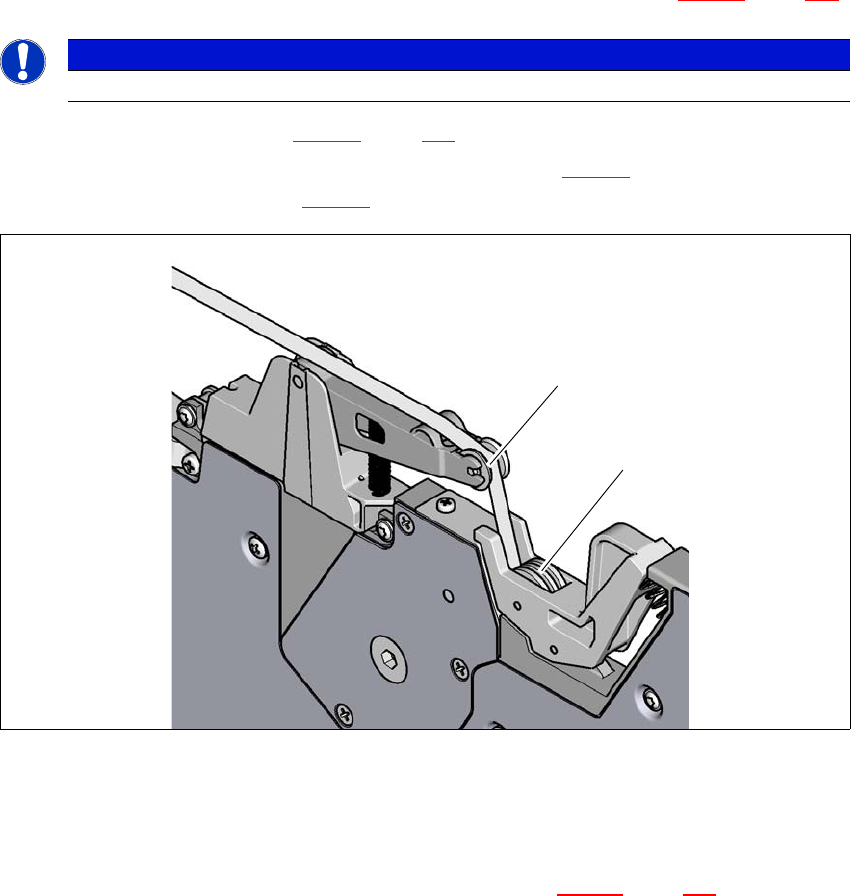

Fig. 5.10 - 7 Guiding the cover foil to the foil packing wheels
(1) Cover foil packing wheels
(2) Cover foil
5
On the operator panel, press the FOIL button (item 3 in fig. 5.10 - 6, page 273) until the cover
foil is tensioned. The cover foil rocker points down and stops the drive motor.
Cut the component tape flush with the front end of the feeder module.
PLEASE NOTE
Do not lower the pick-up window until the cover foil is lying against the pull-off edge.
(1)
(2)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.10 Setting up the feeder modules
275
5.10.4.4 Splice sensors
Splice sensors can be retrofitted to the SIPLACE SmartFeeder.
SIPLACE SmartFeeders with a splice sensor already installed can also be supplied (see section
3.10
, from page 155).
5.10.5 Configuring components on the SIPLACE Smart Feeder
The operation and setting up is described in the SIPLACE SmartFeeder X /Xi job guides.
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.11 Observing displays on the feeder module From software version SC.713.1 Edition 12/2020
276
5.11 Observing displays on the feeder module
5
Fig. 5.11 - 1 SIPLACE SmartFeeder X
(1) Operating panel - LED display
(2) Status display
(2)
(
1)
