Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine From software version SC.713.1 Edition 12/2020 5.7 Indicator lamp s with horn 255 5.7.2.1 Configuration of three-color indicator lamp …
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.7 Indicator lamps with horn From software version SC.713.1 Edition 12/2020
254
5.7 Indicator lamps with horn
5.7.1 Overview
These indicator lamps are used to signal operating statuses and malfunctions of the placement
machine. The horn indicates when an alert has occurred. The indicator lamp can be configured to
have two or three colors. The relevant indicator lamp system (two or three color) is set in the au-
toconfiguration for the station software.
5.7.2 Indicator lamp (standard)

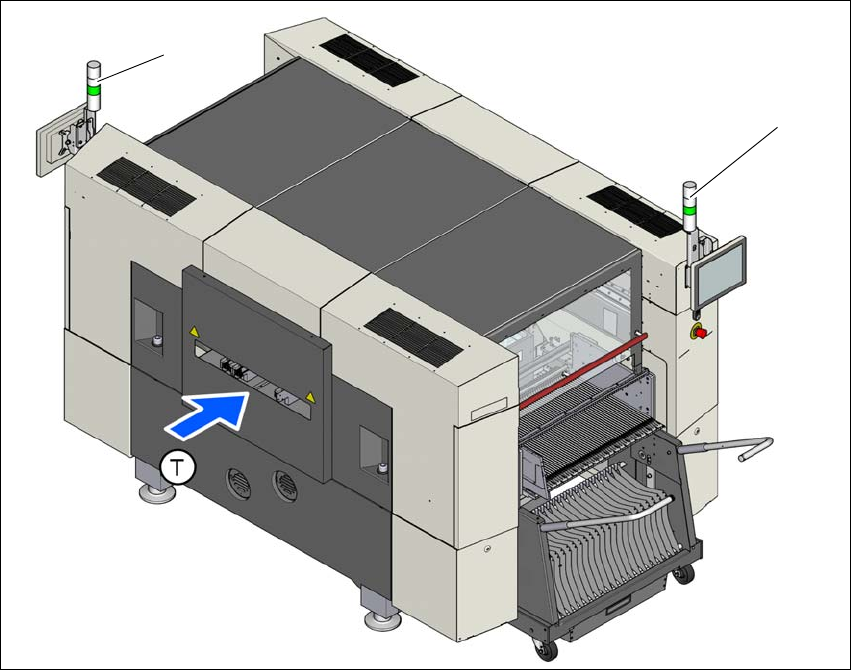

Fig. 5.7 - 1 Indicator lamps for operating states
L1 left indicator lamp
L3 right indicator lamp
T Direction of PCB transport
(L1)
(L2)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.7 Indicator lamps with horn
255

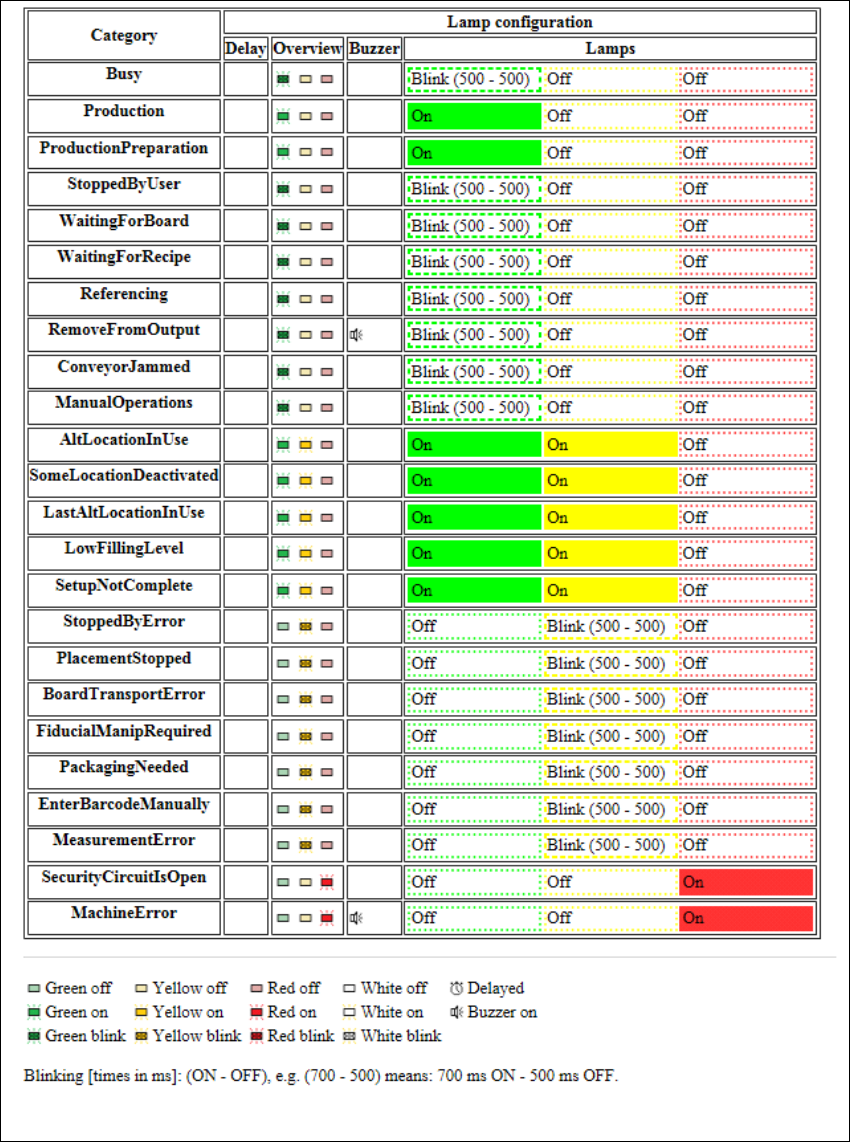

5.7.2.1 Configuration of three-color indicator lamp and audio signal
Fig. 5.7 - 2 Configuration of three-color indicator lamp and audio signal
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.7 Indicator lamps with horn From software version SC.713.1 Edition 12/2020
256

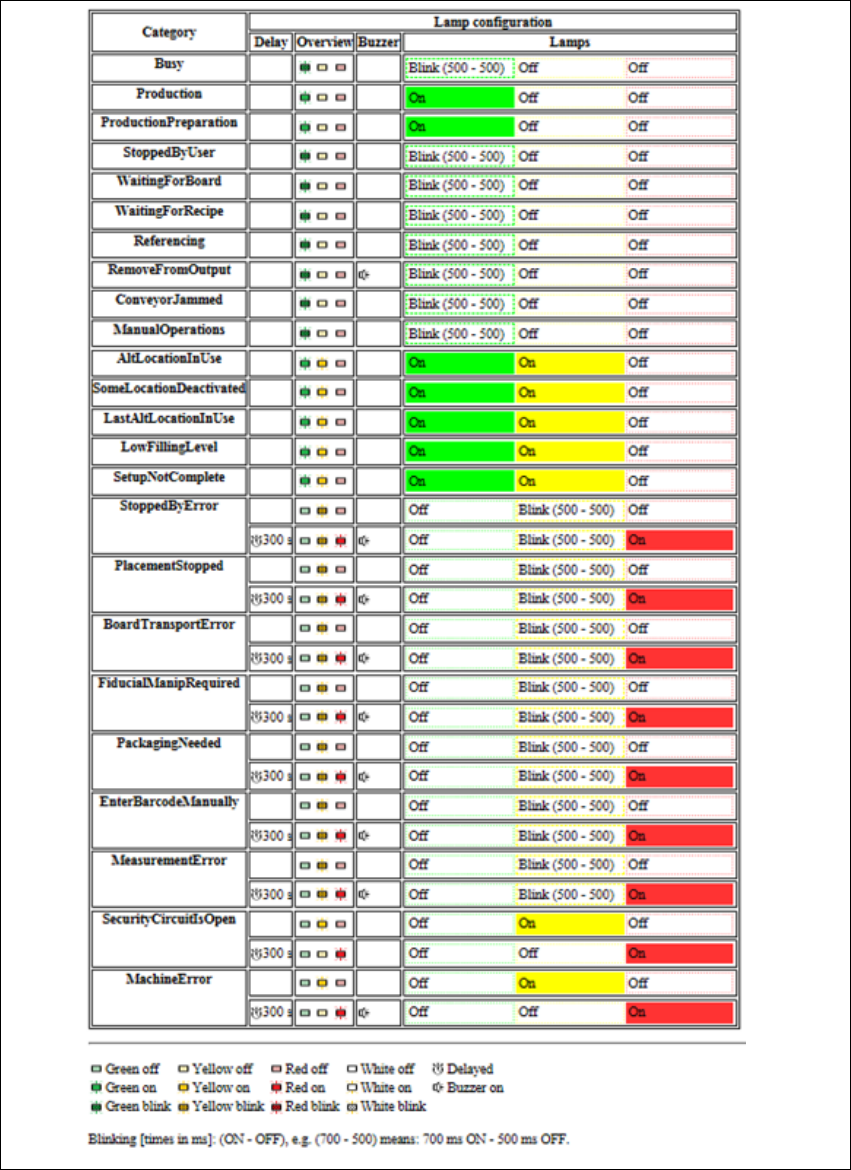

5.7.2.2 Configuration of three-color indicator lamp with delay and audio signal
Fig. 5.7 - 3 Configuration of three-color indicator lamp and audio signal
