5.5 The user interface

The user interface is divided into the following areas.

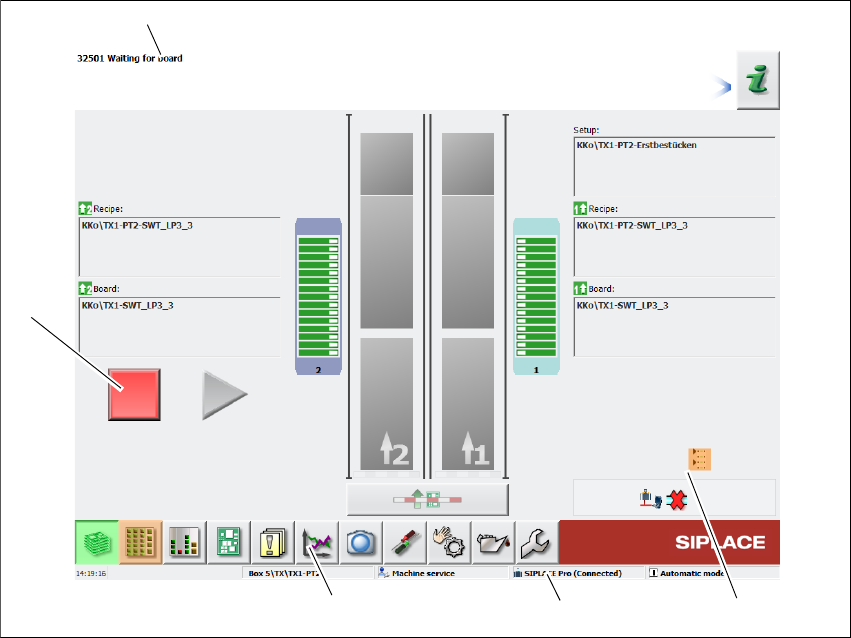

The user interface with the "Production" view for the SX placement machine is shown as an ex-

ample.

Fig. 5.5 - 1 User interface components in the "Production" (example of SIPLACE SX shown) view

Legend

(1) Status field (status and error display)

(2) Processing area / display area

(3) Toolbar

(4) Information line

(5) View of changed configurations and additional options e.g. barcode mode

(1)

(2)

(3)

(4)

(5)

Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine

From software version SC.713.1 Edition 12/2020 5.5 The user interface

243

5.5.1 Status field

The status field shows the current machine status, the error which occurred most recently and the

action to be performed.

The right-hand side of the status field shows the status with the following icons:

(Green) Starts the context-sensitive Online Help function for the current view. All operating con-

trols for the current view are explained

(Red) Starts the help system, showing the possible causes of the current errors and suitable solu-

tions (see section 5.6.1

, page 251).

Opens a dialog box in which the error source, error message text and the error date with time are

shown (see section 5.6.1

, page 251). The help function for the current error can also be opened

from here.

Opens a detailed view for the current error. Troubleshooting measures can be directly opened

from this view (only shown for certain error messages).

Deletes the error currently shown from the status field.

5.5.2 Display and processing area

This area shows the buttons for setting/deleting functions, general information about the board,

setup, recipes and other information.

Animated and color-coded items helps explain processes or states (e.g. editing, empty location

etc.).

For an overview of all buttons and information, refer to the Online Help.

5.5.3 Toolbar

The toolbar contains buttons for the main station software functions.

These enable you to switch the user interface over to other views and to use the functions avail-

able there (see section 5.5.5

, page 248).

Fig. 5.5 - 2 Toolbar

5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3

5.5 The user interface From software version SC.713.1 Edition 12/2020

244

The buttons vary according to your individual configuration and the operator level set. Some views

are only available in higher operator levels.

The following table briefly describes the buttons and main functions.

Icon View Description

Production

(main view)

Shows the machine status for the most frequently performed tasks

during production.

Shows the operating states, see section 5.5.2

, page 243.

Shows locations, name of setup, name of recipe, configuration

changes and additional options.

Feeder modules,

components and

nozzles

The setup can be individually opened for each of the 4 locations.

Allows you to check and configure feeder modules, components

and nozzles.

Allows you to teach component shapes and component pocket

shapes.

Shows the component level indicator.

Filling level view During placement, the operator is shown at all times when the

individual feeders will run empty and need to be filled up again.

PCBs Shows the boards and placement positions list.

Allows you to check and configure boards and components.

Allows you to teach fiducials.

Notifications Shows notifications about current and previous events. The notifi-

cations vary according to their type. Individual tables can be viewed

for track errors, conveyor errors, machine errors, general errors and

linked error messages (see section 5.6

, page 250).

Statistics Shows the statistics for performance, quality and rejected material.

Shows the machine and board performance.

Starts the OIS (Operator Information System), for more information

refer to the OIS documentation.

Live image during

placement

Shows the individual live camera images.

Only available from operator level "Advanced Production" :

Allows you to view and save the Vision dump.

Maintenance sta-

tus

Contains information about the maintenance status for the place-

ment machine.

Refer to the maintenance guide for further information.

Settings Contains all the settings and options.

Allows you to set the operator level and the user interface language.

Allows you to display and edit the machine settings, user settings,

machine options and software options, see section 5.5.5

, page 248.
