2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
52
2.2.7.1 Warning labels W206, W250, W251 on the inside of the sector doors
2

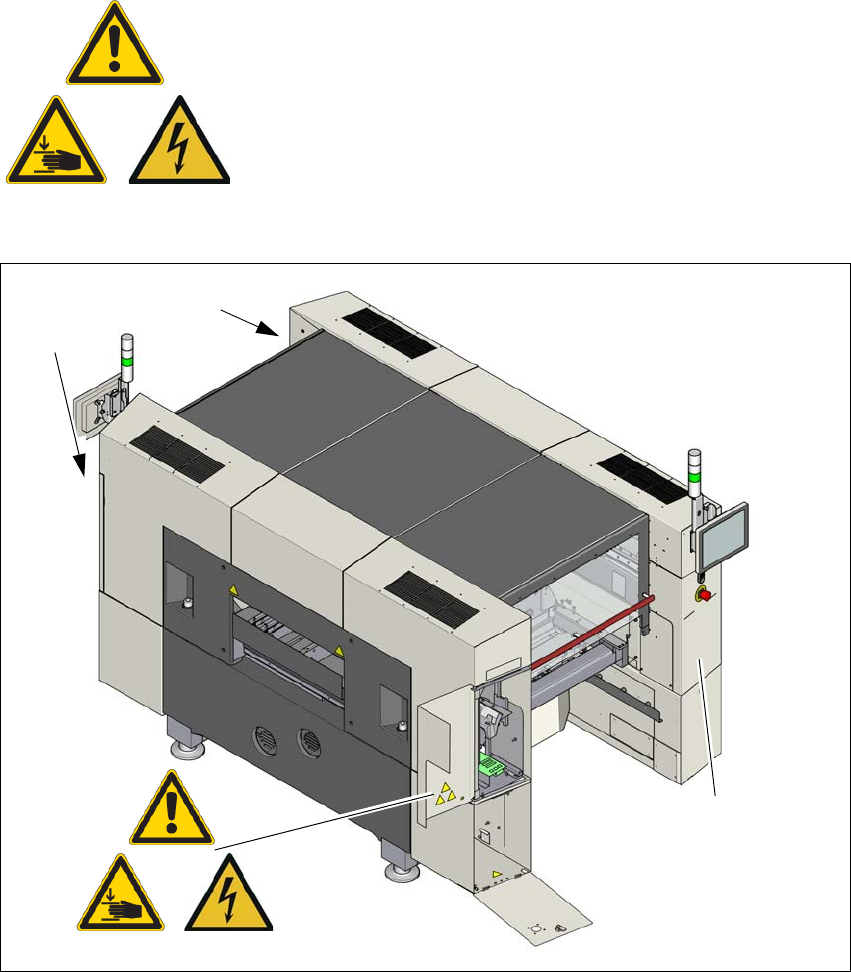

Fig. 2.2 - 9 Warning labels on the inside of the sector doors
Item W 001, on the inside of the sector doors, item no. 03131410-xx
Item W 024, on the inside of the sector doors, item no. 03155346-xx
Item W 012, on the inside of the sector doors, item no. 03155378-xx
The placement machine may only be started when the stopper is
fitted and the door is closed.
(W 024)
(W 012)
(W 001)
W 001, W 012, W 024
on the door, inside
W 001, W 012, W 024
on the door, inside
(W 024)
(W 012)
(W 001)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
53
2.2.7.2 Warning labels on the power supply unit
2
W 220 in fig. 2.2 - 10, page 53, item no. 03114591-01 (quantity per placement machine: 3).

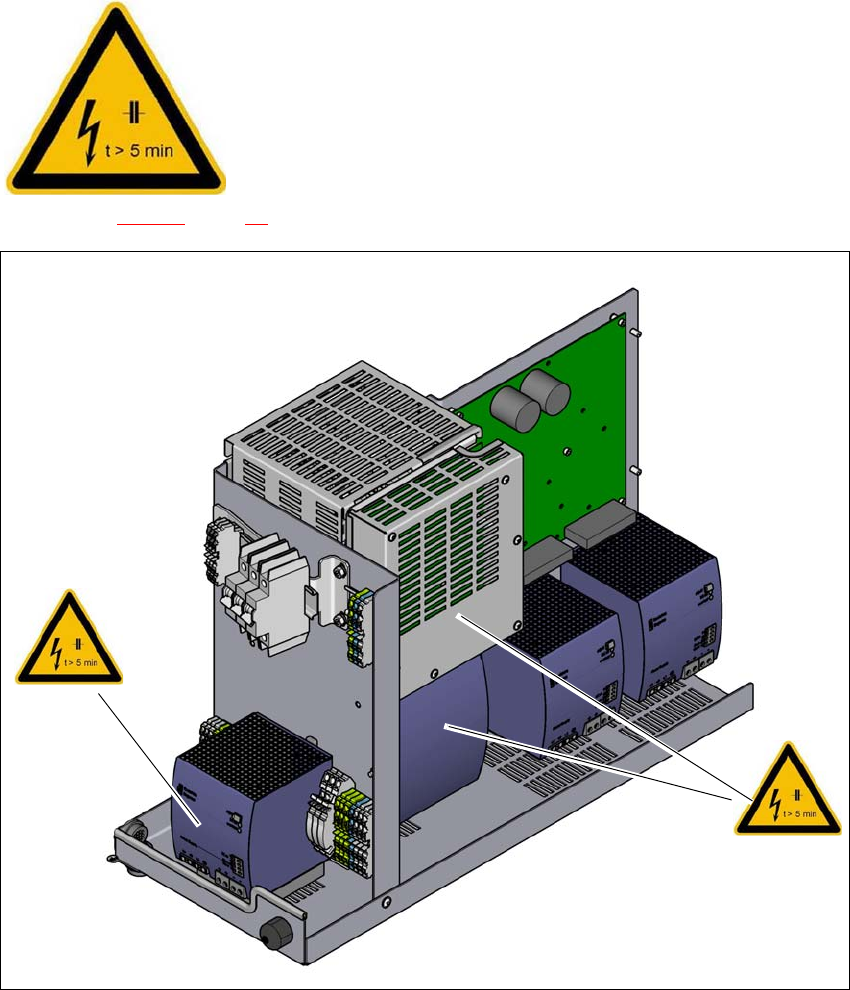

Fig. 2.2 - 10 Warning label W 220 on the power supply
– W 220 on the capacitor battery PCS417
– W 220 on the power supply AC/DC converter (160 V DC /300 V DC).
– W 220 on the cover of the safety cutoff (CSB)
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch, unplug the power supply and
wait 5 minutes until the capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W 220
W 220
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
54
2.2.8 Warning labels on the SIPLACE SpeedStar C&P20 P2
2
2
Fig. 2.2 - 11 Warning labels on the SIPLACE SpeedStar C&P20 P2
(1) Temperature label, item no. 03031926-01
(2) Housing for the star motor
(3) Handle
(4) Warning label - risk group 2
Item laser mark - risk class 2, item no. 03155298-01
PLEASE NOTE
Only for SIPLACE SX1/SX2 V3
The SIPLACE SpeedStar C&P20 P2 is only present in the SIPLACE SX1/SX2 V3.
(1)
(3)
(2)
(4)
Laser mark, risk class 2
