Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies
From software version SC.713.1 Edition 12/2020 3.7 Placement head
135
3.7.5.7 SIPLACE MultiStar CPP in advanced Pick&Place mode
In advanced Pick&Place mode with limited rotation, the SIPLACE MultiStar CPP can place the en-
tire component spectrum from 01005 to 50 mm x 40 mm. The large components are picked up
last, optically centered and then placed as first components.
3

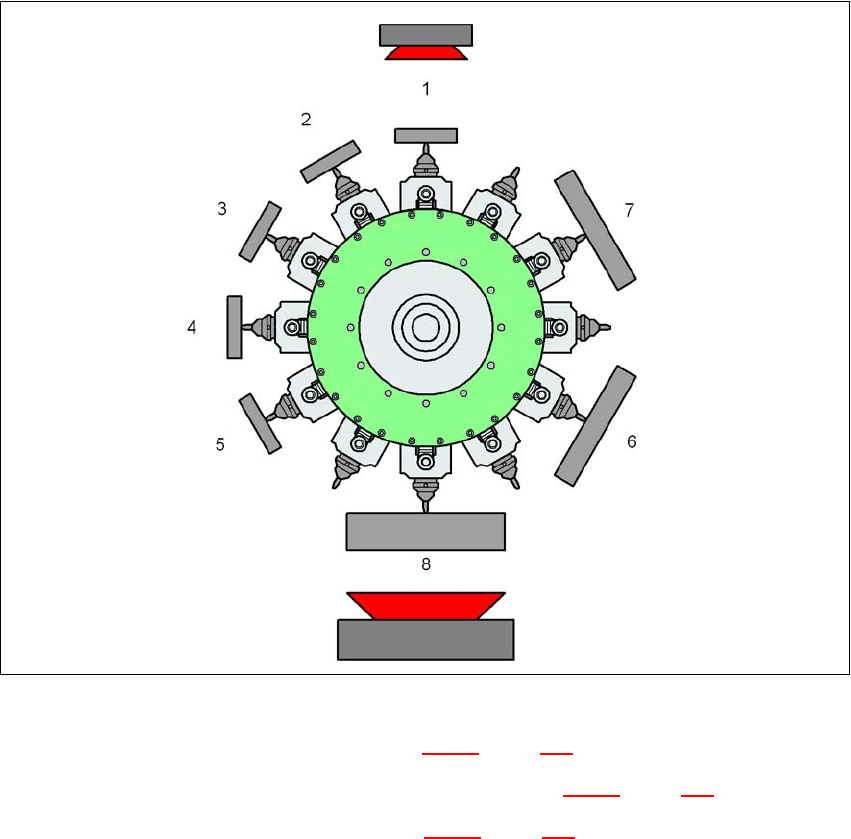

Fig. 3.7 - 10 SIPLACE MultiStar CPP - mixed mode
K_BE Small component (see table 3.7 - 1, page 131)
M_BE_2 Medium sized component, type 2 (see table 3.7 - 1
, page 131)
G_BE Large component (see table 3.7 - 1
, page 131)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
3
Neighboring segments of the SIPLACE MultiStar CPP head are not able to take up components
of types M_BE_2 and G_BE if the diagonal length of these components is longer than 39.8 mm.
Type 30
K_BE
G_BE
Type 33
M_BE_2
3 Technical data and assemblies Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
3.7 Placement head From software version SC.713.1 Edition 12/2020
136

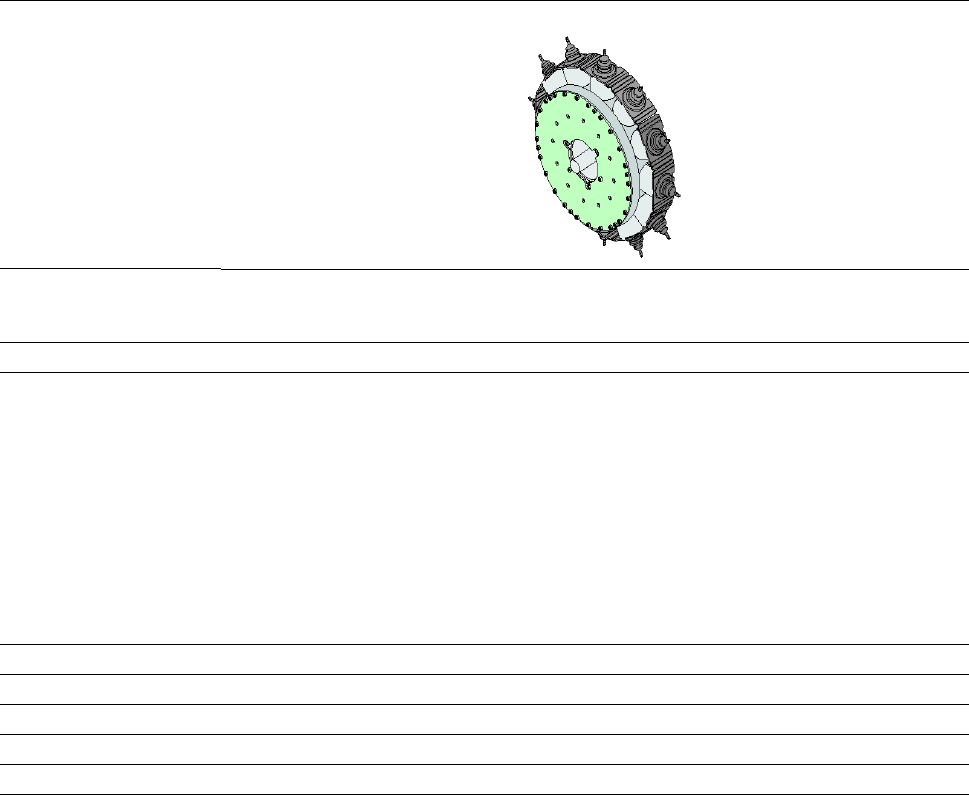

3.7.5.8 Technical data for SIPLACE MultiStar (CPP) on the SIPLACE SX2/SX2 V3
3
SIPLACE MultiStar (CPP)
with component camera
type 30
With component camera
type 45
with component camera
type 33
(stationary camera)
Component range
*a
01005 to 27 mm x 27 mm 01005 to 15 mm x 15 mm 0402 to 50 mm x 40 mm
*b
Component spec.
Max height
*c
Max. height
*d
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
6.0 mm
8.5 mm
250 µm
100 µm
*e
/ 200 µm
*f
250 µm*
e
/ 350 µm*
f
140 µm*
e
/ 200 µm*
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
*g
6.0 mm
8.5 mm
250 µm / 120 µm
*h
50 µm
140 µm
70 µm
0.11 mm x 0.11 mm
15 mm x 15 mm
4 g
*g
11.5 mm / 15.5 mm*
i
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
50 mm x 40 mm
8 g
*g
Set-down force 1.0 - 15 N
*i
Nozzle types 20xx, 28xx 20xx, 28xx 20xx, 28xx
X/Y accuracy
*j
± 38 µm/3σ ± 38 µm/3σ ± 30 µm/3σ
Angular accuracy ± 0.20° / 3σ
*k
, ± 0.38° / 3σ
*l
± 0.38° / 3σ
*k
± 0.12° / 3σ
Illumination level 5 5 6
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards, the
component packaging tolerances and the component tolerances.
*)b A diagonal of 69 mm is possible during multiple measurements (e.g. 64 mm x 10 mm).
*)c CPP head: In low installation position (stationary component camera not possible).
*)d CPP head: In high installation position
*)e For components < 18 mm x 18 mm.
*)f For components ≥ 18 mm x18 mm.
*)g 20 g in "Pick&Place" mode
*)h Only possible for components which are within the focal range of the camera of ± 1.3 mm.
*)i With OSC package
*)j The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
*)k Component dimensions between 6 mm x 6 mm and 27 mm x 27 mm.
*)l Component dimensions smaller than 6 mm x 6 mm.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies
From software version SC.713.1 Edition 12/2020 3.7 Placement head
137

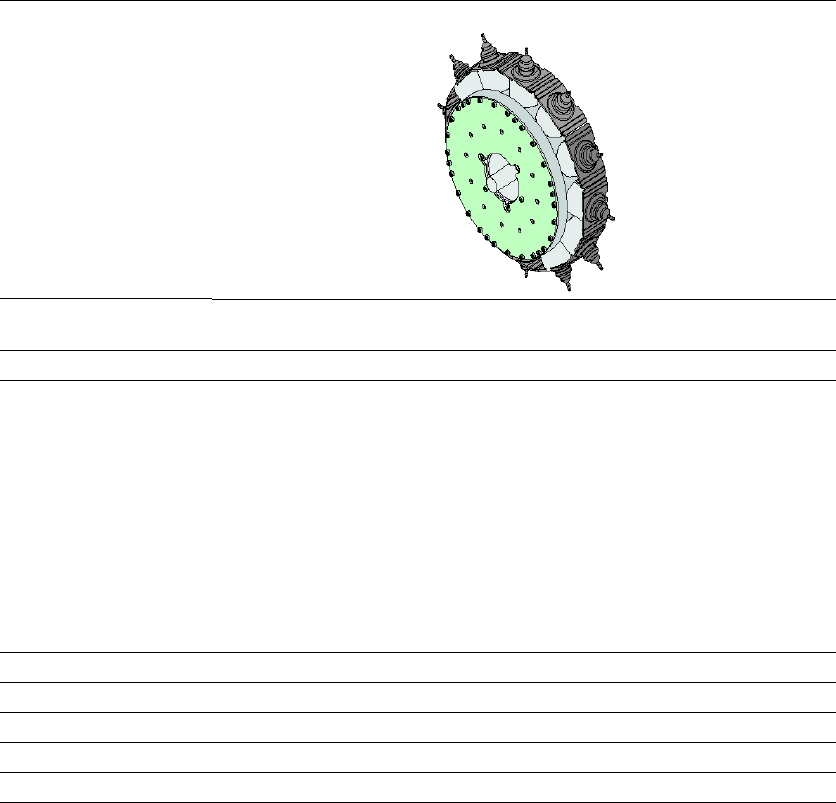

3.7.5.9 Technical data SIPLACE MultiStar (CPP) on the SIPLACE SX2/SX2 V2
3
3
SIPLACE MultiStar (CPP)
with component camera type
30
with component camera type 33
(stationary camera)
Component range
*a
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-spe-
cific standards, the component packaging tolerances and the component tolerances.
01005 to 27 mm x 27 mm 0402 to 50 mm x 40 mm
*b
*)b A diagonal of 69 mm is possible during multiple measurements (e.g. 64 mm x 10 mm).
Component spec.
Max height
*c
Max. height
*d
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
*)c CPP head: In low installation position (stationary component camera not possible).
*)d CPP head: In high installation position
6.0 mm
8.5 mm
250 µm
100 µm
*e
/ 200 µm
*f
25.0 µm
*e
/ 350 µm
*f
140 µm
*e
/ 200 µm
*f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
*g
*)e For components < 18 mm x 18 mm.
*)f For components ≥ 18 mm x18 mm.
*)g 20 g in "Pick&Place" mode
11.5 mm / 15.5 mm
*h
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
50 mm x 40 mm
8 g
*g
Set-down force 1.0 - 15 N
*h
*)h 15.5 mm in high assembly position only, with OSC package and restrictions.
Nozzle types 20xx, 28xx 20xx, 28xx
X/Y accuracy
*i
*)i The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
± 41 µm/3σ ± 34 µm/3σ
Angular accuracy ± 0.20° / 3σ
*j
, ± 0.38° / 3σ
*k
*)j Component dimensions between 6 mm x 6 mm and 27 mm x 27 mm.
*)k Component dimensions smaller than 6 mm x 6 mm.
± 0.14° / 3σ
Illumination level 5 6
