Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station e xtensi ons From software version SC.713.1 Edition 12/2020 6.1 Nozzle changer 299 6 6 Fig. 6.1 - 7 Nozzle changer for t he C&P/CPP - changing the magazi…
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.1 Nozzle changer From software version SC.713.1 Edition 12/2020
298
6.1.3 Assembling the nozzle changer C&P20 P / C&P20 P2 / CPP
The nozzle changers are fixed to the COT insert.
Align the nozzle changer so that the sloping side points towards the COT insert.
6
6.1.3.1 Notes on operation
When you fill a magazine with a certain nozzle type for the first time, attach an adhesive label
to identify the type.
6
Open the locking plate and place the nozzles in the nozzle holders.
Close the locking plate so that the nozzles cannot drop out of the magazines.
6
6
Programming the nozzle changer is described in the SIPLACE Pro instruction manual.
6.1.3.2 Changing the magazine
Press the lever (item 1 in fig. 6.1 - 7, page 299), to release the magazine from the balls of the
snap fasteners (item 5 in fig. 6.1 - 7
, page 299). Lift the magazine off the base.
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
PLEASE NOTE
6
Fill the magazines outside the placement machine and only replace complete mag-
azines.
CAUTION
Filling up magazines!
Before you fill magazines, make sure that all the nozzles on the Collect&Place head
have
been returned to their magazines.
PLEASE NOTE
Risk of jamming!
If components fall onto magazines, there is a risk that the locking plate could jam.
Do not allow components to drop onto the magazines.
You should therefore regularly clean the magazines and free locations.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.1 Nozzle changer
299
6
6

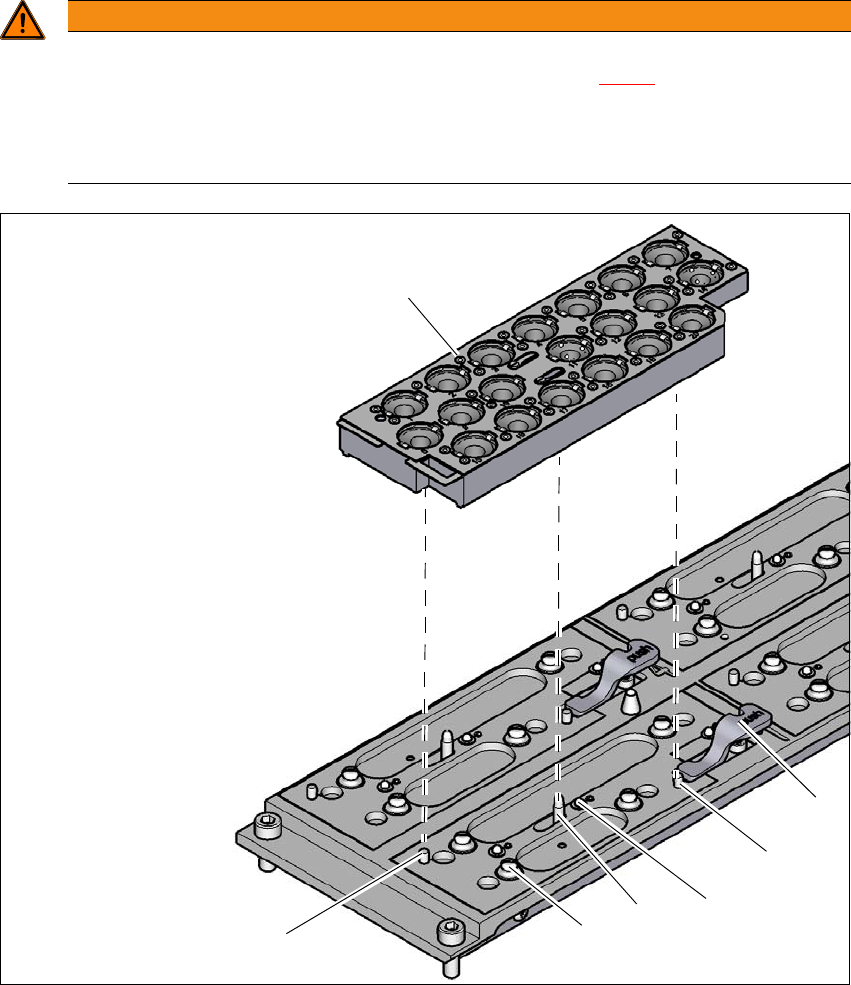

Fig. 6.1 - 7 Nozzle changer for the C&P/CPP - changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) spring pin for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "magazine locked" position
WARNING
Risk of head crashes with protruding lever
Any lever that is protruding over the magazine (item 1 in fig 6.1 - 7) can result in a head
crash.
You should therefore make sure that the lever does not protrude over the maga-
zines.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.1 Nozzle changer From software version SC.713.1 Edition 12/2020
300
6
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 7, page 299).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6.1.3.3 Position detection
Each nozzle changer magazine has two fiducials for determining the position.
6

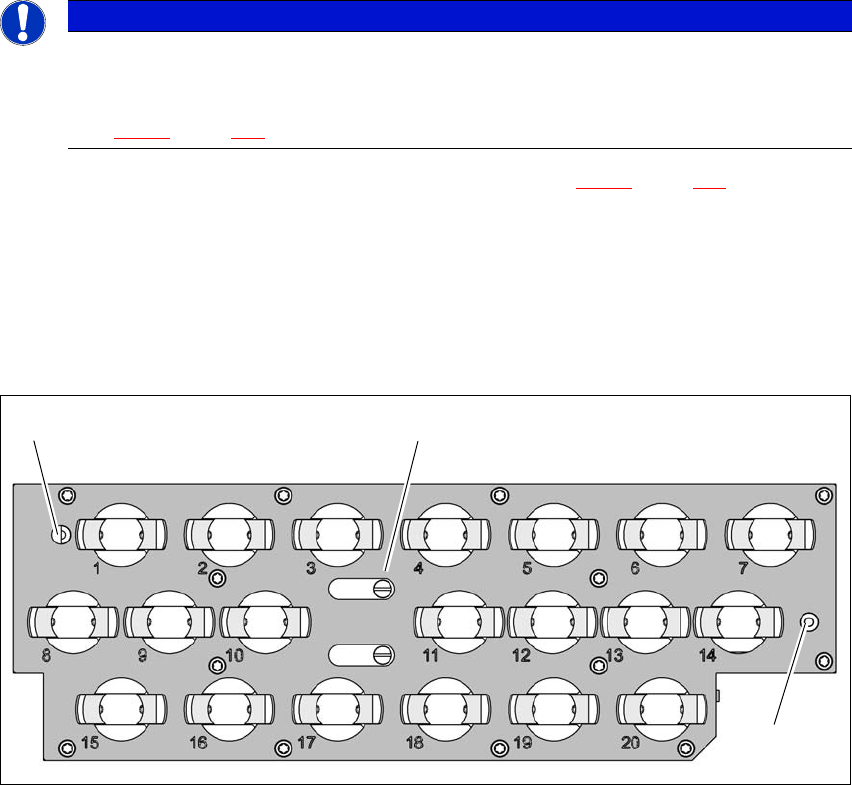

Fig. 6.1 - 8 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducial for determining the position
PLEASE NOTE
6
Move the locking plate into the "Magazine locked" position.
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
6.1 - 7
, page 299) slide into the centering holes and slot.
(1)
(2)
(2)
