1. Scope of Menus for System Setting

1.1 Composition of Menus for System Setting

When the [SYSTEM] button on the main menu bar is pressed, the "SYS-

TEM" window opens. This window has a submenu bar.

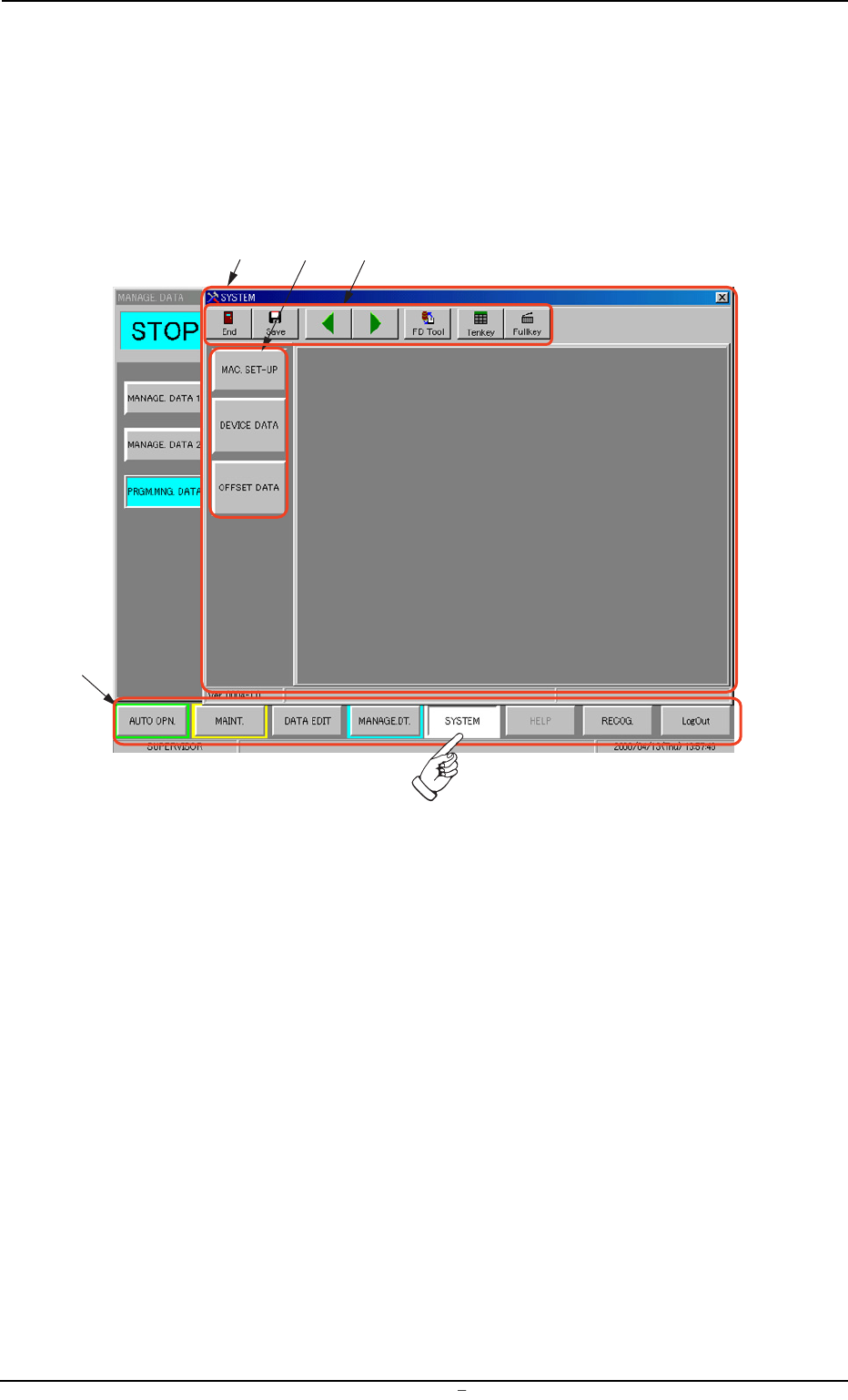

Fig. 3D1 "SYSTEM" Menu

• Window Composition

*1 Main Menu Bar

This bar is provided commonly for all operation windows. The but-

tons on the bar are used to select the main menus.

*2 "SYSTEM" Window

All the tab sheets are laid on top of each other so that the tab of

each is visible.

1. Scope of Menus for System Setting

0009-002 Chapter 1 4 2 AFU01EDTP

*3 Submenu Bar

This bar is treated as part of the "SYSTEM" window and has the

buttons to select the submenus.

When a button is selected, the corresponding initial tab sheet ap-

pears.

The "SYSTEM" window is provided with the following 3 submenu but-

tons.

SYSTEM

Submenus Reference Item Nos.

MAC. SET-UP 2.

DEVICE DATA 3.

OFFSET DATA 4.

Fig. 3D2

0009-002 Chapter 1 4 3 AFU01EDTP

1. Scope of Menus for System Setting
