3.2 "Prod. History" T ab Displayed is the history of the current model production. • Sheet Layout When the "Prod. History" tab is pressed in the "PRGM. MNG. DA T A" window (submenu), the fol…
*4 [PRGM. SELECT] Button
When this button is pressed, the model selected in *5 can be de-
termined as a current pattern program (the data to be displayed on
each tab sheet in the "PRGM. MNG. DATA" window (submenu)).
*5 [CURRENT PRGM. SELECT] Button
This button can be used to select one of the saved models as a
current one.
• Program Change Operation
(1) Use the button (*2 or *3) to re-arrange the program names
listed in *1.
(2) Select one of the models (program names listed in *1) to dis-
play the data.
The background color of the selected name turns navy blue.
(3) Press the [CURRENT PRGM. SELECT] button *5.
(4) Press the [PRGM. SELECT] button *4.
*6 [PTRN. PRGM. MNG. DATA CLEAR] Button
Use this button to select the model (one of the saved pattern pro-
grams) to be cleared.
• Information Clear Operation
(1) Use the button (*2 or *3) to re-arrange the program names
listed in *1.
(2) Select one of the models (program names listed in *1) to dis-
play the data.
The background color of the selected name turns navy blue.
(3) Press the [PTRN. PRGM. MNG. DATA CLEAR] button.

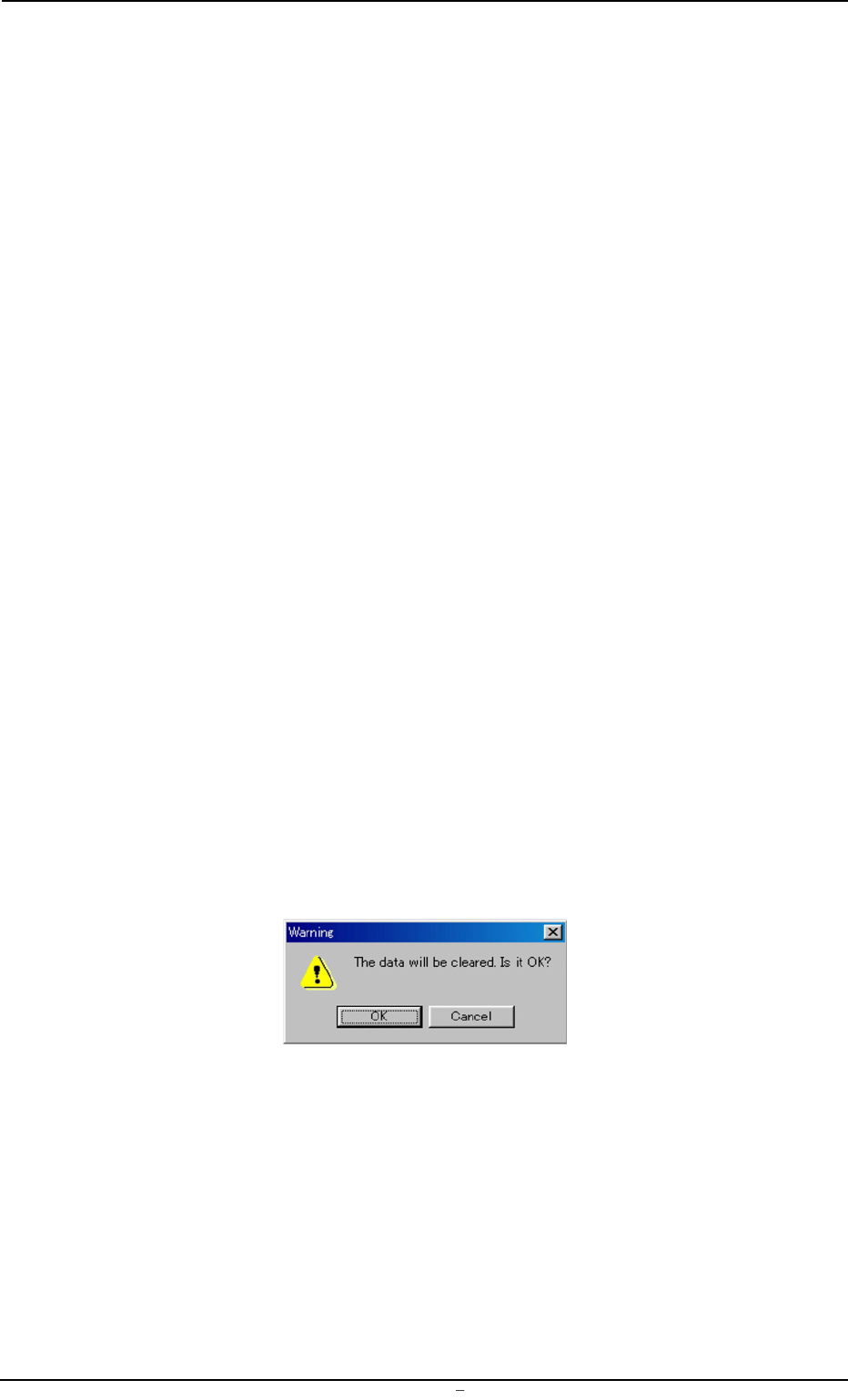

The following "Warning" dialog box opens.
Fig. 3C13
(4) When the [OK] button is pressed, the selected model (pattern
program) is deleted from the list *1.
0009-002 Chapter 1 3 18 AFU01EDTP
3.1
"
Prgm. Chg. & Clear
"
Tab Sheet
3.2 "Prod. History" Tab
Displayed is the history of the current model production.
• Sheet Layout
When the "Prod. History" tab is pressed in the "PRGM. MNG. DATA"
window (submenu), the following tab sheet appears.

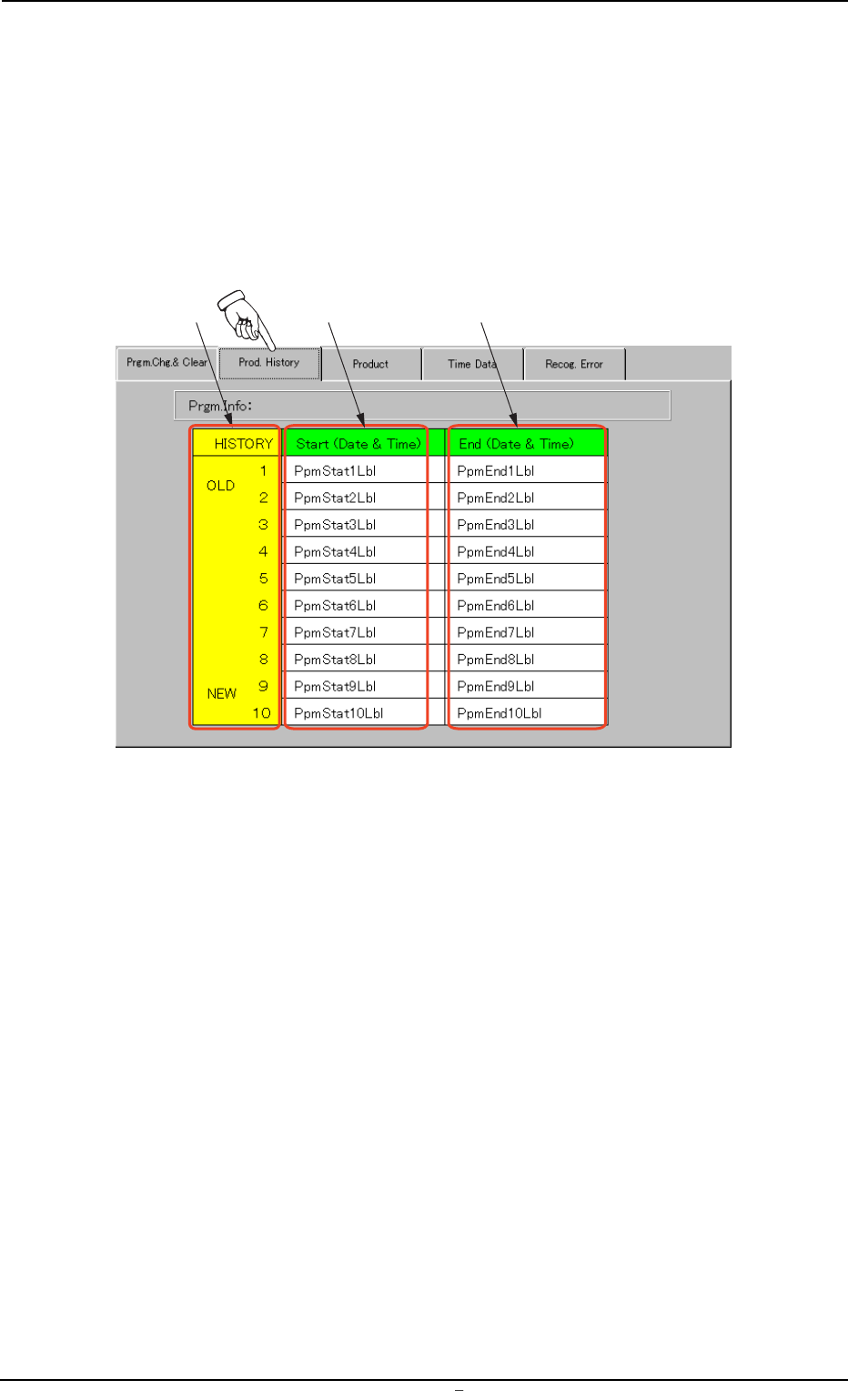

Fgi. 3C14 "Prod. History" Tab Sheet
• Sheet Composition
*1 HISTORY
Displayed in this column are 10 production history Nos. (the latest
ones) of the current model (the pattern program data to be dis-
played).
The oldest history comes first and the subsequent ones follow.
When more than 10 histories are derived, the older histories are
deleted one by one.
*2 Start (Date & Time)
Displayed in this column are the records of date and time when
machine operations were started, regarding the current pattern pro-
gram (model).
*3 End (Date & Time)
Displayed in this column are the records of date and time when
machine operations were ended, regarding the current pattern pro-
gram (model).
*1
*2
*3
0004-001 Chapter 1 3 19 AFU01EDTP
3.2
"
Prod. History
"
Tab
3.3 "Product" Tab
Displayed is the production data (results) of the current model.
• Sheet Layout
When the "Product" tab is pressed in the "PRGM. MNG. DATA" window
(submenu), the following tab sheet appears.

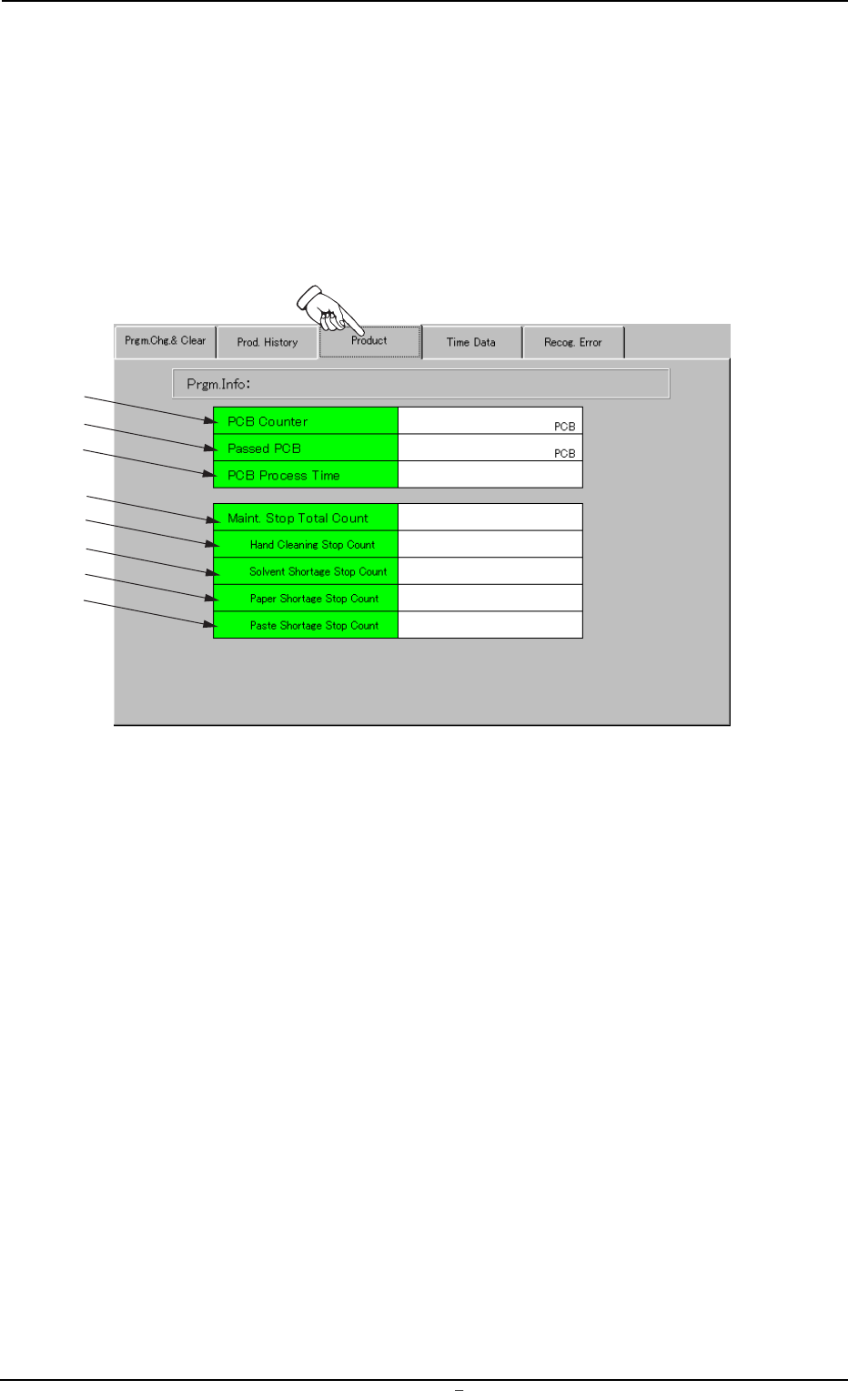

Fgi. 3C15 "Product" Tab Sheet
• Sheet Composition
*1 PCB Counter
This indicates the number of produced P.C.B.’s in "PRINT" mode
(operation mode).
The system counts the number of times the table was zeroed after
the end of each printing and the result is regarded as the number
of produced P.C.B.’s.
*2 Passed PCB
This indicates the number of P.C.B.’s that have been transferred
without being printed in the "PASS" mode (operation mode).
The system counts the number of times the P.C.B.’s were trans-
ferred from the table to the R conveyor and the result is regarded
as the number of passed P.C.B.’s.
*1
*2
*3
*4
*5
*6
*7
*8
0004-001 Chapter 1 3 20 AFU01EDTP
3.3
"
Product
"
Tab
