2.5 "Info. Clear" Tab
This tab sheet is provided with two buttons and each button is used to
clear the management data stored in memory.
• Sheet Layout
When "Info. Clear" tab is pressed in the "MANAGE. DATA 1" window
(submenu), the following tab sheet appears.
Fig. 3C8 "Info. Clear" Tab Sheet
• Sheet Composition
*1 [Management Data 1 Clear] Button
When the button is pressed, the following “Warning” dialog box
opens.
When the [OK] button is pressed, the contents of “Management
Data 1” are cleared and the date and time of the clear operation
are updated.
Fig. 3C9
0106-002 Chapter 1 3 13 AFU01EDTP
2.5
"
Info. Clear
"
Tab
*2 [Management Data 2 Clear] Button
When the button is pressed, the following “Warning” dialog box
opens.
When the [OK] button is pressed, the contents of “Management
Data 2” are cleared and the date and time of the clear operation
are updated.
Fig. 3C10
*3 “Auto Save Interval” Group Box
Set the interval time to automatically save the management data
of the selected pattern program on the hard disk.
When the management data is set to be downloaded from
the network terminal for this machine, it is updated at the
interval specified here.
0106-002 Chapter 1 3 14 AFU01EDTP
2.5
"
Info. Clear
"
Tab
3. "PRGM. MNG. DATA" Submenu
Displayed is the management data related to a specific model (a type of
P.C.B.’s).
Even if P.C.B.’s are produced intermittently, the accumulated data (re-
sults) is displayed as long as the same model is handled.
• Window Layout
When the [PRGM. MNG. DATA] button is pressed in the "MANAGE.
DATA" submenu bar, the following window appears.

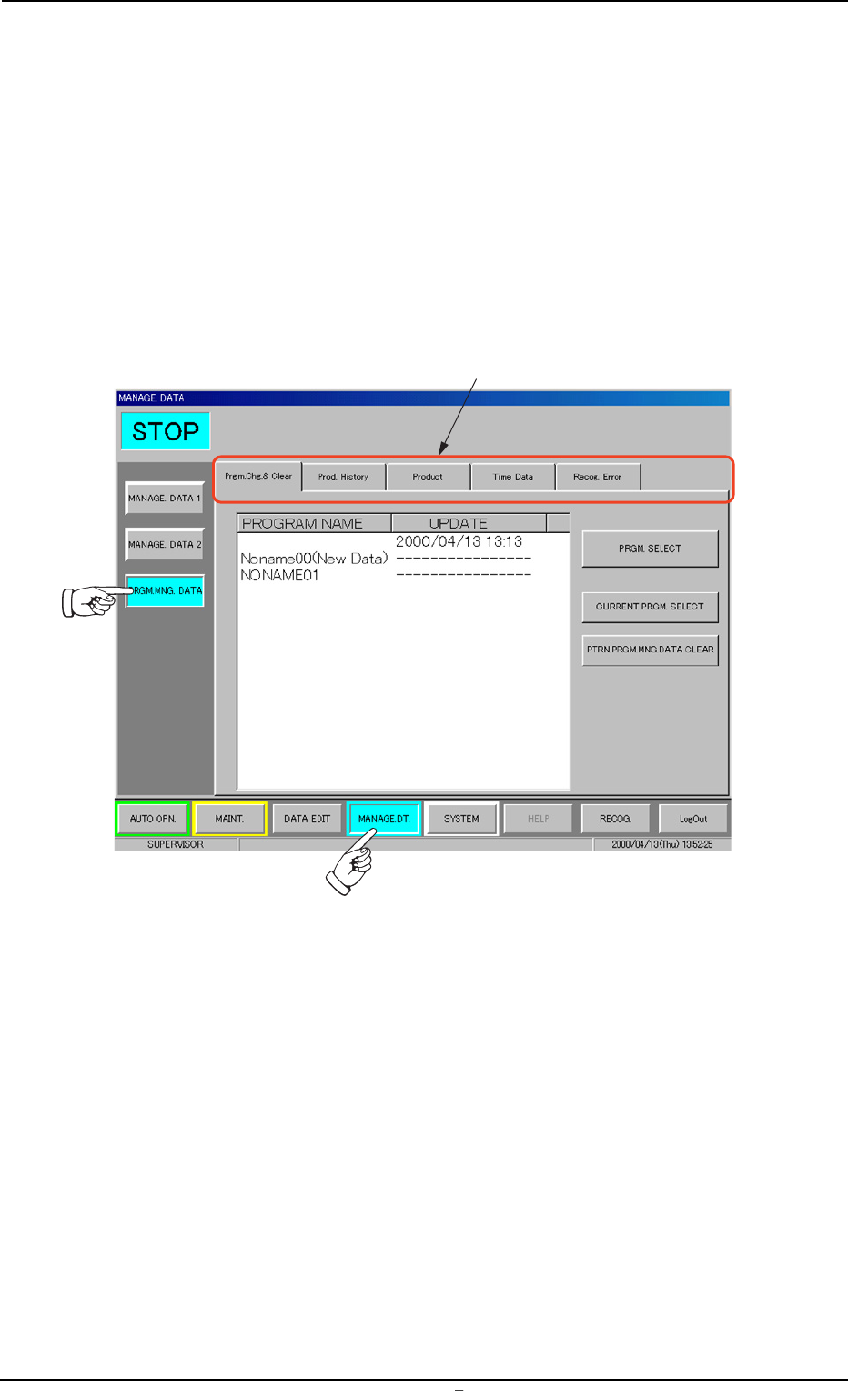

Fig. 3C11 "PRGM. MNG. DATA" Window (Submenu)
*1
0004-001 Chapter 1 3 15 AFU01EDTP
3.
"
PRGM. MNG. DATA
"
Submenu
