2.2 "Tower Lamp Buzzer" Tab
This tab sheet enables the operator to allocate the colors (red, yellow,
and green) of the tower lights and set alarm modes according to the
machine status.
• Sheet Layout
When the "Tower Lamp
Buzzer" tab is pressed in the "MAC. SET-UP"
window (submenu), the following tab sheet appears.

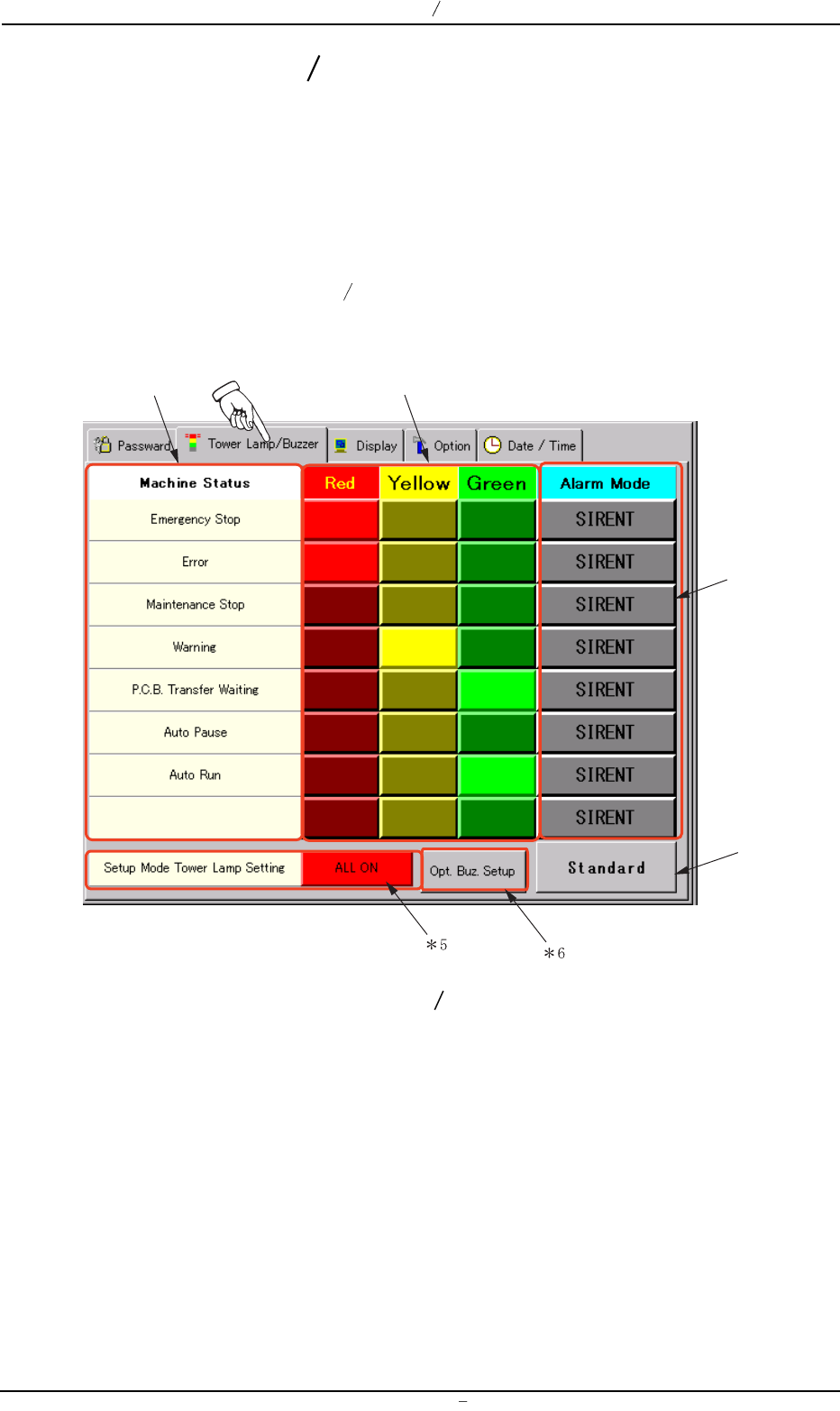

Fig. 3D8 "Tower Lamp
Buzzer" Tab Sheet
• Sheet Composition
*1 Classification of Machine Status
Each label indicates the condition of the machine in which the cor-
responding tower light illuminates and the buzzer sounds.
The labels are displayed in high order of emergency according to
the degree of danger.
*1
*4
*2
*3
0106-002 Chapter 1 4 11 AFU01EDTP
2.2
"
Tower Lamp Buzzer
"
Tab
*2 Tower Light Mode Buttons
These buttons can be classified by colors, indicating that the tower
lights can illuminate in the specified colors in accordance with each
machine status.
Every time a button is pressed, it is set in the order - "OFF" → "ON"
→ "ON and OFF".
When "ON and OFF" is set, the light flashes in the cycle
of 1 second (ON and OFF each for 0.5 seconds).
*3 Alarm Mode Buttons
These buttons are used to set alarm modes in accordance with
each machine status.
Every time a button is pressed, the label changes in the order -
"SILENT" → "CONTINUOUS" → "ON AND OFF". The background
color also changes in the order - "Gray" → "Red" → "Yellow".
*4 [Standard] Button
When this button is pressed, the standard modes are set for each
tower light and buzzer sound.
*5 [Setup Mode Tower Lamp Setting] Button
This button specifies the lighting mode of the tower lamps when
the [OPERATION/SET UP] switch set to the “SET UP” side.
Every time this button is pressed, the label “ALL ON” is changed to
“ALL OFF” or vice versa.
ALL ON : All lamps are turned ON.
ALL OFF : All lamps are turned OFF.
*6 [Opt. Buz. Setup] Button
When pressed, this button opens the window for designation of
optional buzzer sounds.
“ON” and “OFF” can be specified in a cycle of two seconds as a
buzzer sound.
“ON” can be changed over to “OFF” or vice versa by pressing one
block (unit: 0.25 seconds).

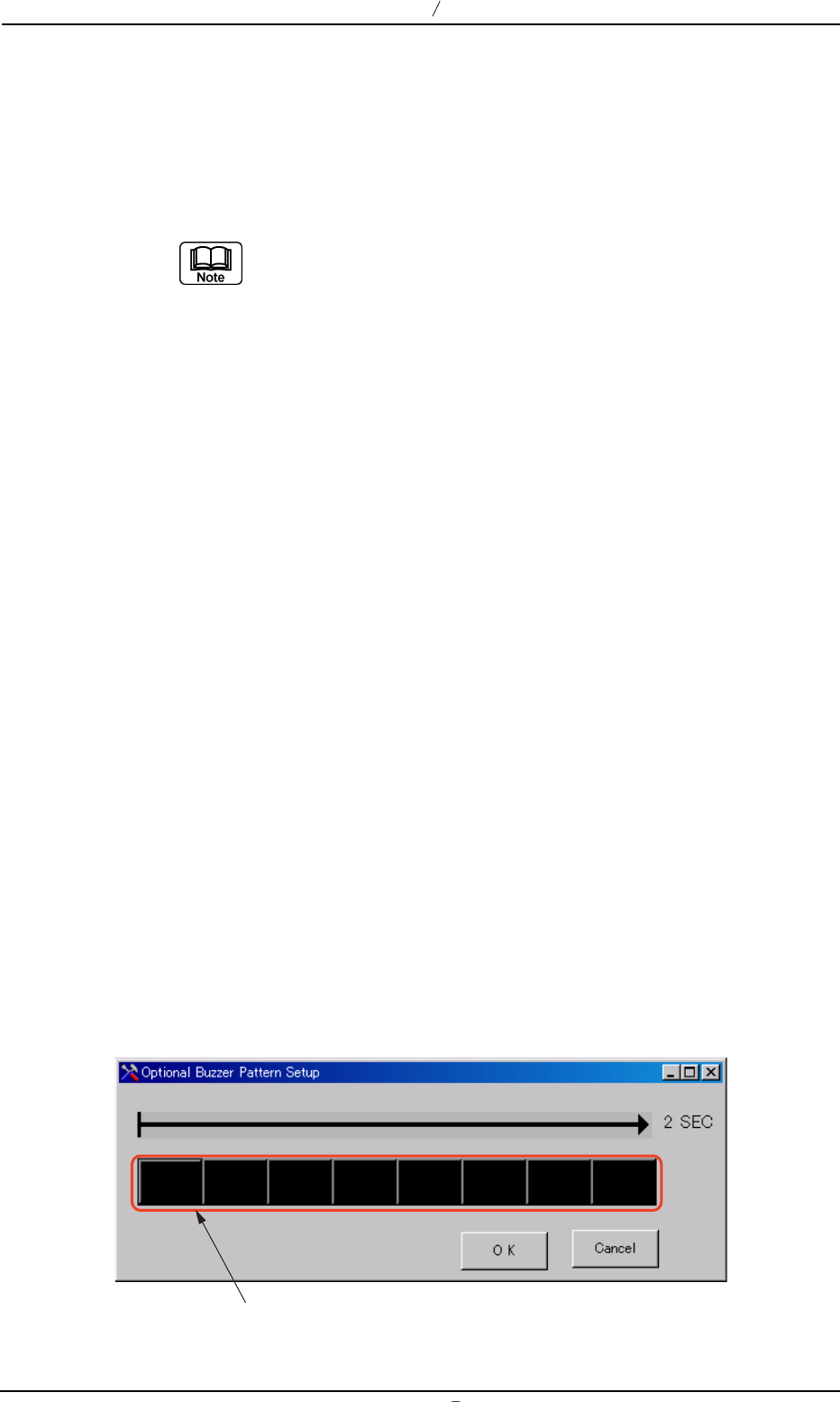

Fig. 3D8-1 “Optional Buzzer Pattern Setup” Window
0106-002 Chapter 1 4 12 AFU01EDTP
2.2
"
Tower Lamp Buzzer
"
Tab
Block
2.3 "Display Setting" Tab
When no operation on the touch screen is needed for a long period of
time, the monitor protection function can be activated to avoid burning
the screen.
(a) When you touch the surface of the touch screen or press
the [POWER OFF] button on the front operation panel, the
monitor protection mode is canceled and a window ap-
pears on the screen.
(b) When an error occurs or a management information mes-
sage should be issued, the monitor protection mode is
automatically canceled and a window appears on the
screen.
• Sheet Layout
When the "Display Setting" tab is pressed in the "MAC. SET-UP" win-
dow (submenu), the following tab sheet appears.

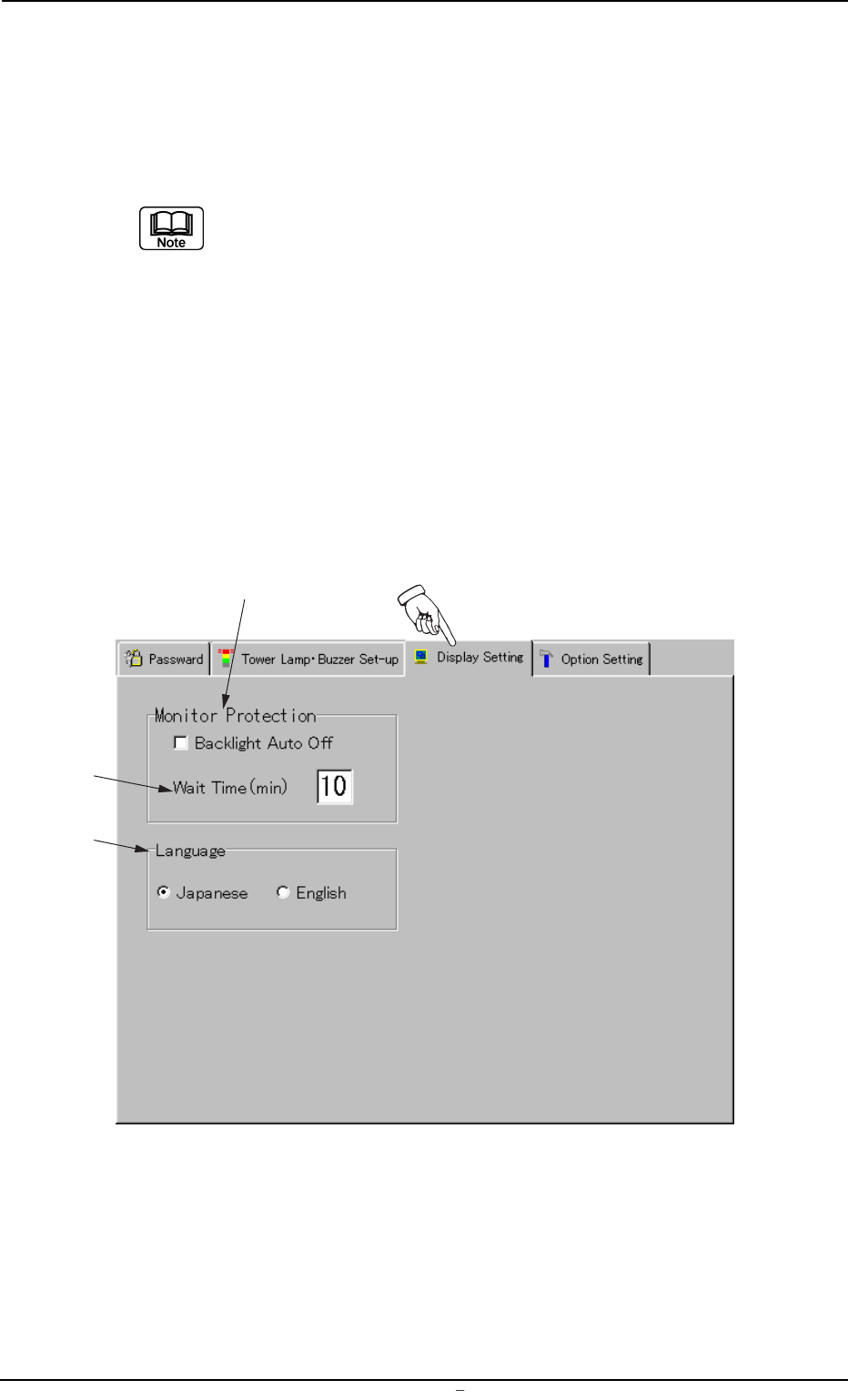

Fig. 3D9 "Display Setting" Tab Sheet
*1
*2
*3
0009-002 Chapter 1 4 13 AFU01EDTP
2.3
"
Display Setting
"
Tab
