Error ID Item Description 1801003 Fiducial Mark #1 [Camera Gain] exceeds the range of setting. 1801004 Fiducial Mark #1 [Camera Level] exceeds the range of setting. (Cause 1) The data has exceeded the allowable range. (R…
Error ID Item Description
1631000 Pattern Program Illegal pattern program
Data Error
(Cause 1) An illegal value is set in pattern program data.
(Remedy 1) Press the [PRGM. CHECK] button in the "ERROR" window and check
the contents. After that, set the correct value(s).
1701000 Squeegee Life Front squeegee exceeded life limit.
(Cause 1) The frequency of the front squeegee use has exceeded the limitation.
(Remedy 1) Change the front squeegee and select the "Printed" data field of the re-
placed squeegee in the "Auto Stop Info" tab sheet. After that, press the
[Counter Clear] button.
1702000 Squeegee Life Rear squeegee exceeded life limit.
(Cause 1) The frequency of the rear squeegee use has exceeded the limitation.
(Remedy 1) Change the rear squeegee and select the "Printed" data field of the re-
placed squeegee in the "Auto Stop Info" tab sheet. After that, press the
[Counter Clear] button.
1801000 Fiducial Mark #1
1801001 Fiducial Mark #1 [Camera ID] exceeds the range of setting.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
If the machine is not reset to its normal condition, shut down the power of
the machine once and power up the machine again. After that, re-start
the operation.
When the same error still occurs, contact our service personnel for de-
tails.
2.3 Error IDs and Remedial Procedures
0106-001 Chapter 2 2 59 AFU01ETRP
Error ID Item Description
1801003 Fiducial Mark #1 [Camera Gain] exceeds the range of setting.
1801004 Fiducial Mark #1 [Camera Level] exceeds the range of setting.
(Cause 1) The data has exceeded the allowable range.
(Remedy 1) Set correct parameters.
1801011 Fiducial Mark #1 [Mark Size D1] exceeds the range of setting.
1801012 Fiducial Mark #1 [Mark Size D2] exceeds the range of setting.
(Cause 1) The data has exceeded the allowable range.
(Remedy 1) Set correct parameters.
1801014 Fiducial Mark #1 [Mark Judge Level] exceeds the range of setting.
(Cause 1) The data has exceeded the allowable range.
(Remedy 1) Set correct parameters.
2.3 Error IDs and Remedial Procedures
0106-001 Chapter 2 2 60 AFU01ETRP

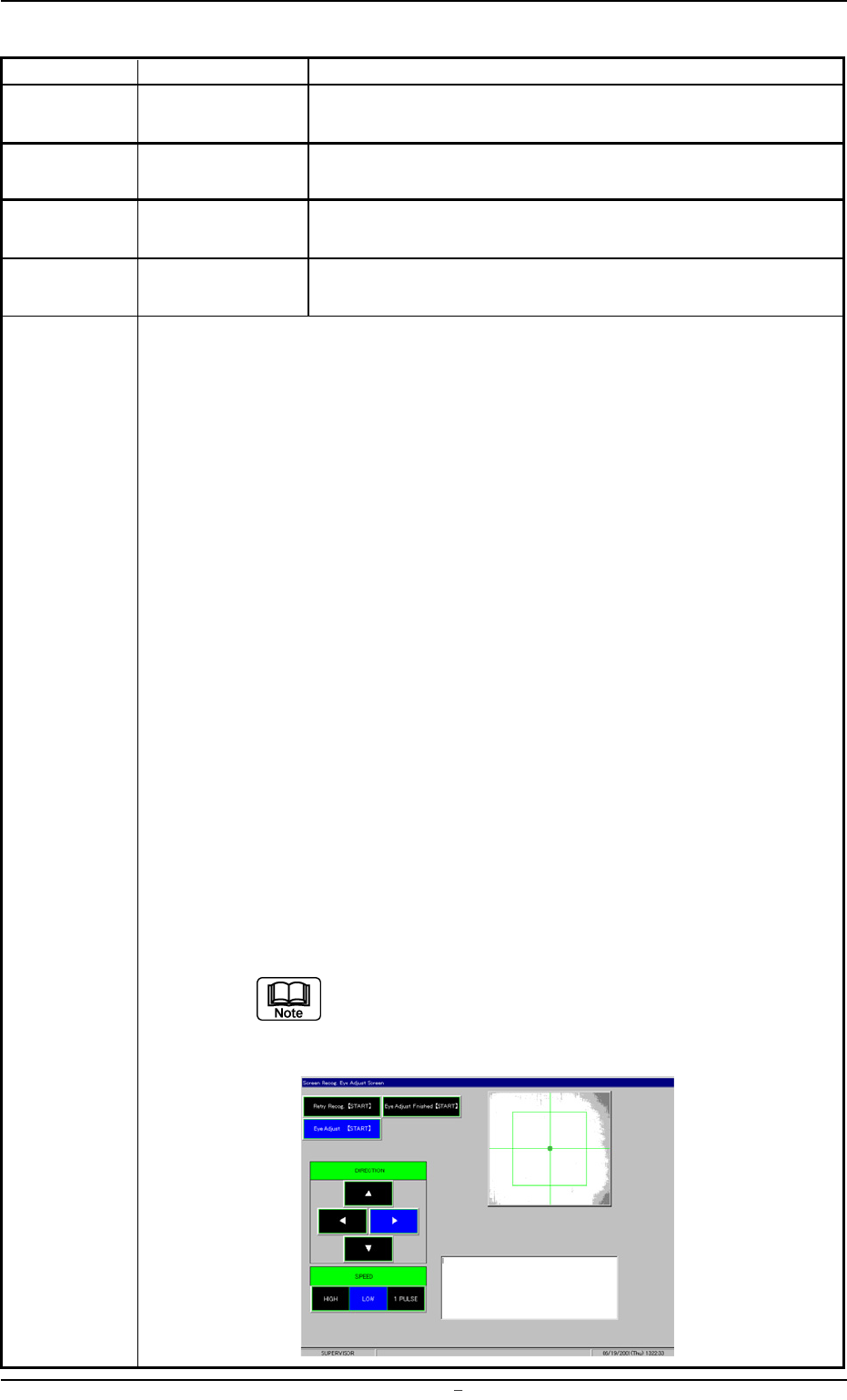

Error ID Item Description
1801029 Fiducial Mark #1 Image around fiducial mark was unstable.
1801030 Fiducial Mark #1 Error of mark figure similitude was extensive.
1801031 Fiducial Mark #1 Error of mark similitude or mark size was extensive.
1801032 Fiducial Mark #1 Specified mark was not found in window of recog.monitor.
(Cause 1) The fiducial marks do not conform to the coordinates X and Y of the fiducial
marks or the recognition mark data in the pattern program.
(Remedy 1) Follow the steps below to reset the machine to the normal condition.
(1) When the [RESET] button is pressed, the following window opens.
(2) When the actual fiducial mark is out of the recognition area, move
the camera such that the mark can enter the recognition area.
Select the [Eye Adjust [START]] button and press one of the arrow
buttons in the "DIRECTION" and "SPEED" boxes. While the [START]
button is being pressed, the camera keeps on moving.
(3) Select the [Retry Recog.[START]] button and press the [START] but-
ton.
When the recognition is completed successfully, this window auto-
matically closes.
(4) When the recognition still failed after the re-recognition operation,
move the camera such that the actual fiducial mark can stay at the
fiducial mark template (located at the center of the cross hair).
Note: Be sure to adjust the position of the fiducial mark as accu-
rately as possible because the printing accuracy is affected by
this adjustment.
(5) Select the [Eye Adjust Finished [START]] button and press the
[START] button.
The original window resumes.
If the [STOP] button is pressed while the "Eye Adjust" window is
active, the processing is interrupted and the original window re-
sumes.
