-Axis Ball Screw Apply grease with a brush or a spatula. Lubrication -Axis Linear Guide Apply grease to the grease nipple with a grease gun. Lubrication Fig. 5A24 T able Section Fig. 5A25 T able Section 8. Half-Y early M…
Fig. 5A23 Table Section
Fig. 5A23-1
8. Half-Yearly Maintenance
0106-003 Chapter 3 1 22 AFU01EINP
X-Axis Ball Screw
(1) Move the table Z axis up
to the printing position.
(2) Detach the cover located
at the front side of the
table.
(3) Apply grease with a brush
or a spatula.
Lubrication
X-Axis Linear Guide
Front Side: Apply grease
with a brush.
Rear Side: Apply grease
with a grease gun.
Lubrication

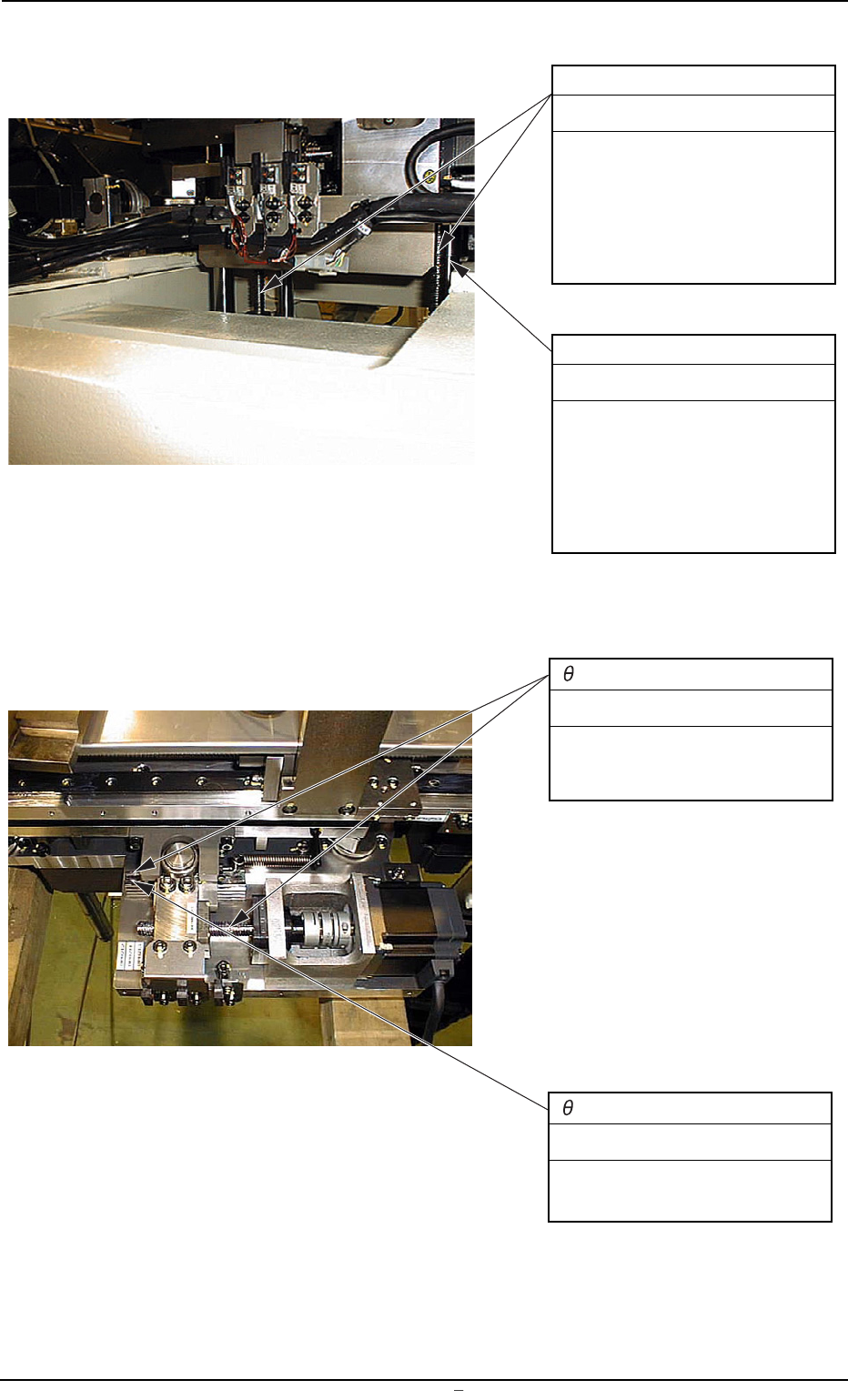

-Axis Ball Screw
Apply grease with a brush or
a spatula.
Lubrication
-Axis Linear Guide
Apply grease to the grease
nipple with a grease gun.
Lubrication
Fig. 5A24 Table Section
Fig. 5A25 Table Section
8. Half-Yearly Maintenance
0106-003 Chapter 3 1 23 AFU01EINP
Z-Axis Ball Screw
(1) Move the table Z axis up
to the printing position.
(2) Detach the cover located
at the front side of the table.
(3) Apply grease with a brush
or a spatula.
Lubrication
Z-Axis Guide Bushing
(1) Move the table Z axis up
to the printing position.
(2) Detach the cover located
at the front side of the table.
(3) Apply grease with a brush
or a spatula.
Lubrication
Backup Table Z-Axis Guide
Bushing
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication
Ball Screw for Chute Width
Adjustment
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication
Linear Guide for Chute Width
Adjustment
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication
Backup Table Z-Axis Ball
Screw
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication
Fig. 5A26 Chuck Section
8. Half-Yearly Maintenance
0009-002 Chapter 3 1 24 AFU01EINP
