*3 Submenu Bar
This bar is treated as part of the "SYSTEM" window and has the
buttons to select the submenus.
When a button is selected, the corresponding initial tab sheet ap-
pears.
The "SYSTEM" window is provided with the following 3 submenu but-
tons.
SYSTEM
Submenus Reference Item Nos.
MAC. SET-UP 2.
DEVICE DATA 3.
OFFSET DATA 4.
Fig. 3D2
0009-002 Chapter 1 4 3 AFU01EDTP
1. Scope of Menus for System Setting
*4 Toolbar
A collection of command buttons are arranged on the tool bar, mak-
ing the common tools for all the tab sheets easily accessible.

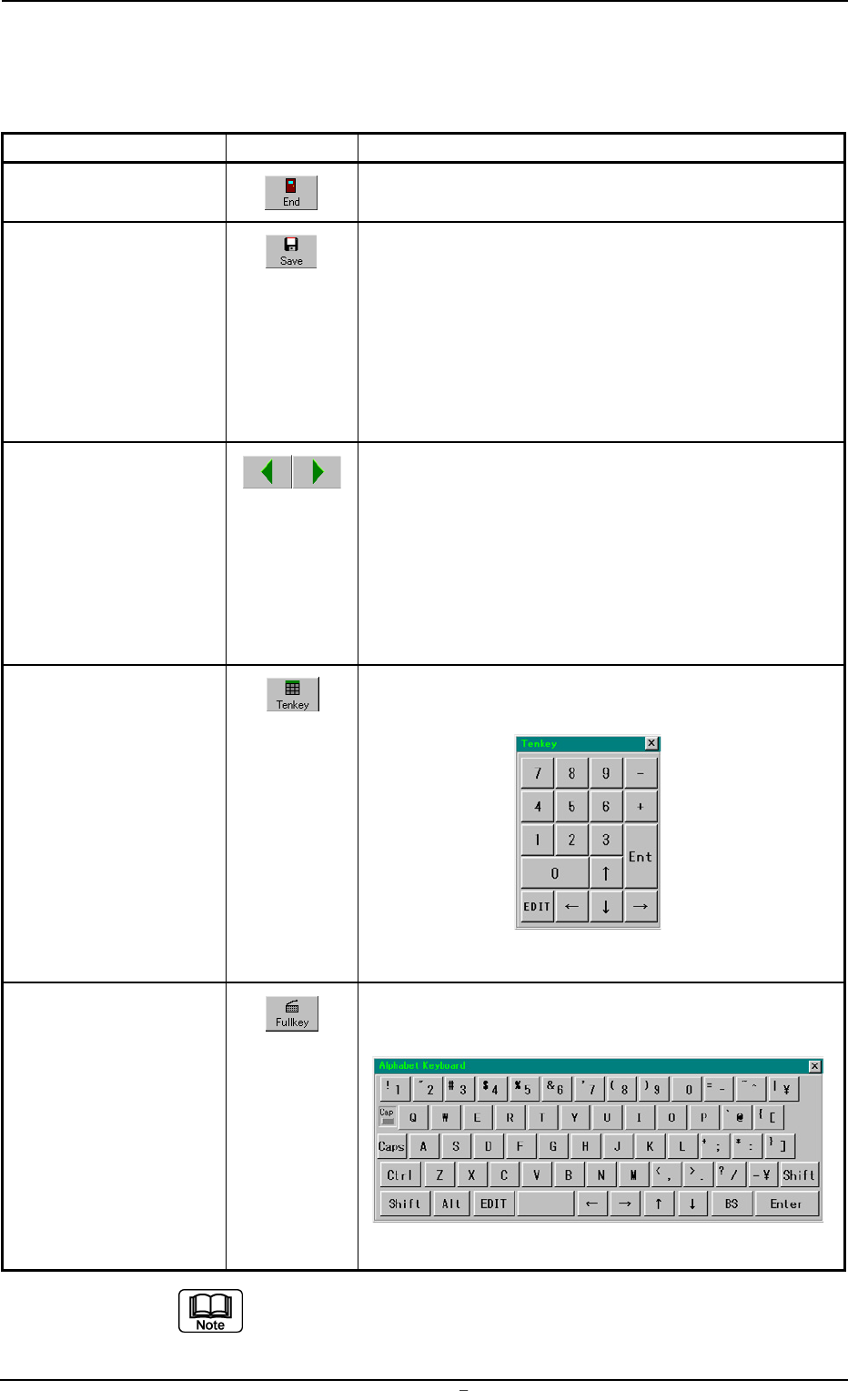

Table 3D1
Command Buttons Icons Functions
[End] Button This button closes the "SYSTEM" window.
[Save] Button This button saves the contents of the tab sheets on
the hard disk of the machine.
Note: If the [Save] button is not pressed, the set-
tings are not saved on the hard disk of the
machine.
When a tab sheet is provided with a [SET] but-
ton, be sure to press the [Save] button after
the [SET] button.
Item Selection These buttons can be used to select an item on a tab
Buttons sheet.
Every time the right arrow button is pressed, an item
is selected from down to up or right to left. The left
arrow button works in reverse order.
Note: Pressing the [Ent] key on the ten-key window
also selects an item from down to up or right
to left (or vice versa).
[Tenkey] Button This button makes the ten-key window appear, mak-
ing it possible to enter numerical values.
Fig. 3D3
[Fullkey] Button This button makes the virtual keyboard appear, mak-
ing it possible to enter alphanumerics.
Fig. 3D4
The ten-key window and virtual keyboard cannot be made
visible at the same time.
0004-001 Chapter 1 4 4 AFU01EDTP
1. Scope of Menus for System Setting
2. "MAC. SET-UP" Submenu
• Window Layout
When the [MAC. SET-UP] button is pressed in the "SYSTEM" submenu
bar, the following window appears.

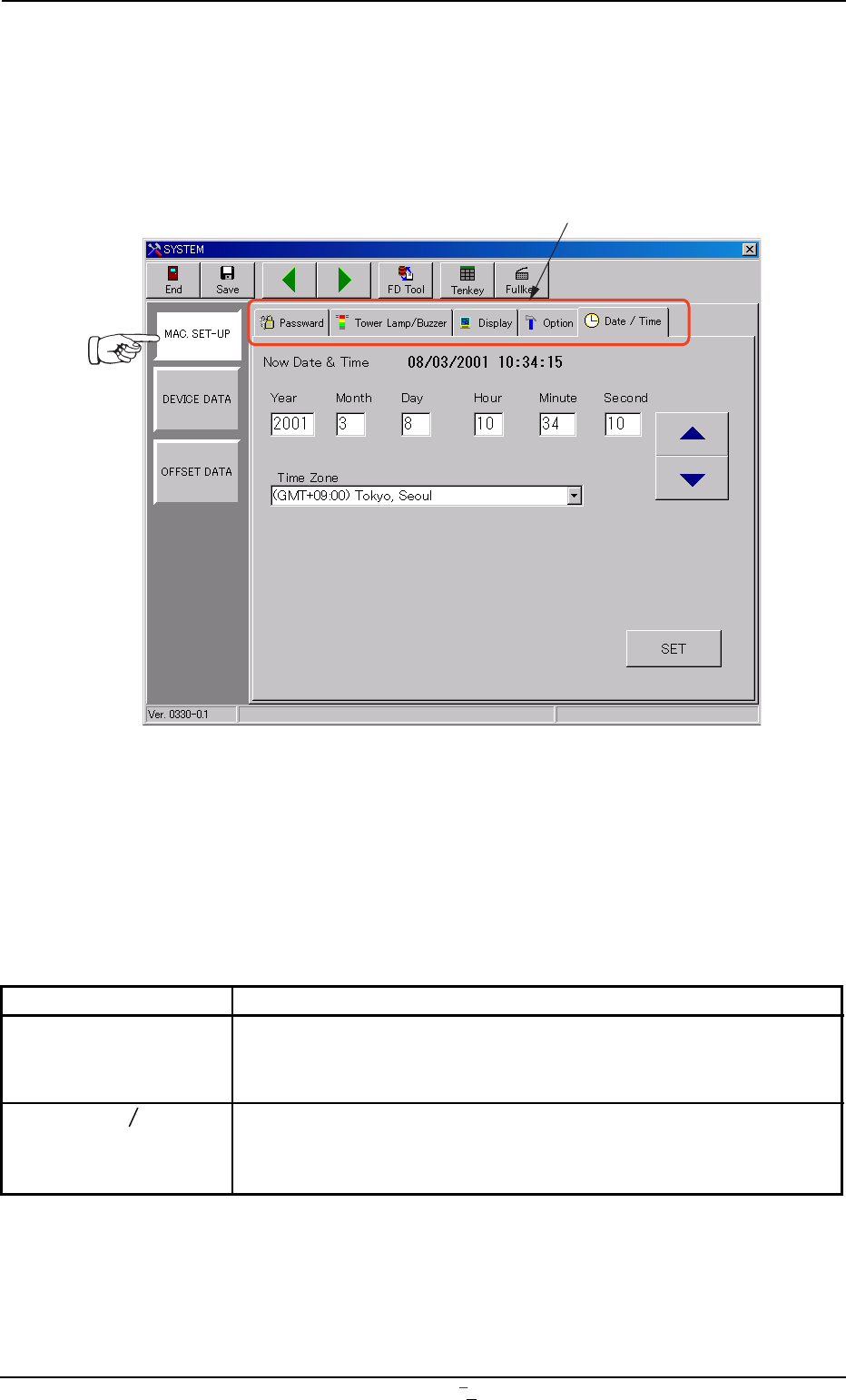

Fig. 3D5 "MAC. SET-UP" Window (Submenu)
• Window Composition
*1 Tabs
The "MAC. SET-UP" window (submenu) is provided with 5 tab
sheets.
Every time a tab is pressed, the corresponding tab sheet appears.
Table 3D2
Tabs Description
Password Three kinds of passwords and an effective range of each password
can be set for the operators in charge. (Security Levels: "Supervi-
sor", "Operator #1", and "Operator #2")
Tower Lamp
This tab sheet enables the operator to allocate the colors (red,
Buzzer yellow, and green) of the tower lights and set alarm modes accord-
ing to the machine status.
*1
0106-003 Chapter 1 4 5 AFU01EDTP
2.
"
MAC. SET-UP
"
Submenu
