8. Half-Yearly Maintenance
DE1: DAPHNE EPONEX GREASE No. 1
Table 5A8
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Name
DWG
Nozzles,
No.
etc.
Table Section X-Axis Ball Screw 5A23 Lubrication DE1 Brush,
Spatula
X-Axis Linear Guide 5A23 Lubrication DE1 Grease Gun,
-1 Brush
Z-Axis Ball Screw 5A24 Lubrication DE1 Brush,
Spatula
Z-Axis Guide 5A24 Lubrication DE1 Brush,
Bushing Spatula
-Axis Ball Screw 5A25 Lubrication DE1 Brush,
Spatula
-Axis Linear 5A25 Lubrication DE1 Grease Gun
Guide
Chuck Section Ball Screw for Chute 5A26 Lubrication DE1 Brush,
Width Adjustment Spatula
Linear Guide for 5A26 Lubrication DE1 Brush,
Chute Width Spatula
Adjustment
Backup Table Z-Axis 5A26 Lubrication DE1 Brush,
Guide Bushing Spatula
Backup Table Z-Axis 5A26 Lubrication DE1 Brush,
Ball Screw Spatula
Linear Guide for 5A27 Lubrication DE1 Brush,
P.C.B. Clamping Spatula
P.E.C. Recogni- P.C.B. Stopper 5A28 Lubrication DE1 Brush
tion Section Guide Bushing
X-Axis Linear Guide 5A28 Lubrication DE1 Brush,
Spatula
Y-Axis Ball Screw 5A29 Lubrication DE1 Brush,
Spatula
Y-Axis Linear Guide 5A29 Lubrication DE1 Brush
X-Axis Ball Screw 5A29 Lubrication DE1 Brush,
Spatula
8. Half-Yearly Maintenance
0106-003 Chapter 3 1 20 AFUQ01EINP
8. Half-Yearly Maintenance
Table 5A9
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Name
DWG
Nozzles,
No.
etc.
Squeegee Squeegee Head 5A30 Lubrication DE1 Brush,
Head Section Y-Axis Ball Screw Spatula
Squeegee Head 5A30 Lubrication DE1 Grease Gun
Y-Axis Linear Guide
Screen Recognition 5A32 Lubrication DE1 Brush,
X-Axis Ball Screw Spatula
Screen Recognition 5A32 Lubrication DE1 Grease Gun
X-Axis Linear Guide
Guide Bushing for 5A31 Lubrication DE1 Brush,
Squeegees Up/Down Spatula
Movement
Screen Holder Y-Axis Ball Screw 5A33 Lubrication DE1 Brush
Section Y-Axis Linear Guide 5A34 Lubrication DE1 Brush
L Conveyor Spline Shaft for 5A35 Lubrication DE1 Brush,
Section Width Adjustment Spatula
Ball Screw for Width 5A35 Lubrication DE1 Brush,
Adjustment Spatula
Guide Bushing for 5A35 Lubrication DE1 Brush,
Width Adjustment
Spatula
R Conveyor Spline Shaft for 5A36 Lubrication DE1 Brush,
Section Width Adjustment Spatula
Ball Screw for 5A36 Lubrication DE1 Brush,
Width Adjustment Spatula
Guide Bushing for 5A36 Lubrication DE1 Brush,
Width Adjustment Spatula
Cover Section Front Safety Door 5A36 Lubrication DE1 Brush
Gas Damper (Upper) -1
Front Safety Door 5A36 Lubrication DE1 Brush
Gas Damper (Lower) -2
Rear Safety Door 5A36 Lubrication DE1 Brush
Gas Damper (Upper) -3
Rear Safety Door 5A36 Lubrication DE1 Brush
Gas Damper (Lower) -4
0106-003 Chapter 3 1 21 AFU01EINP

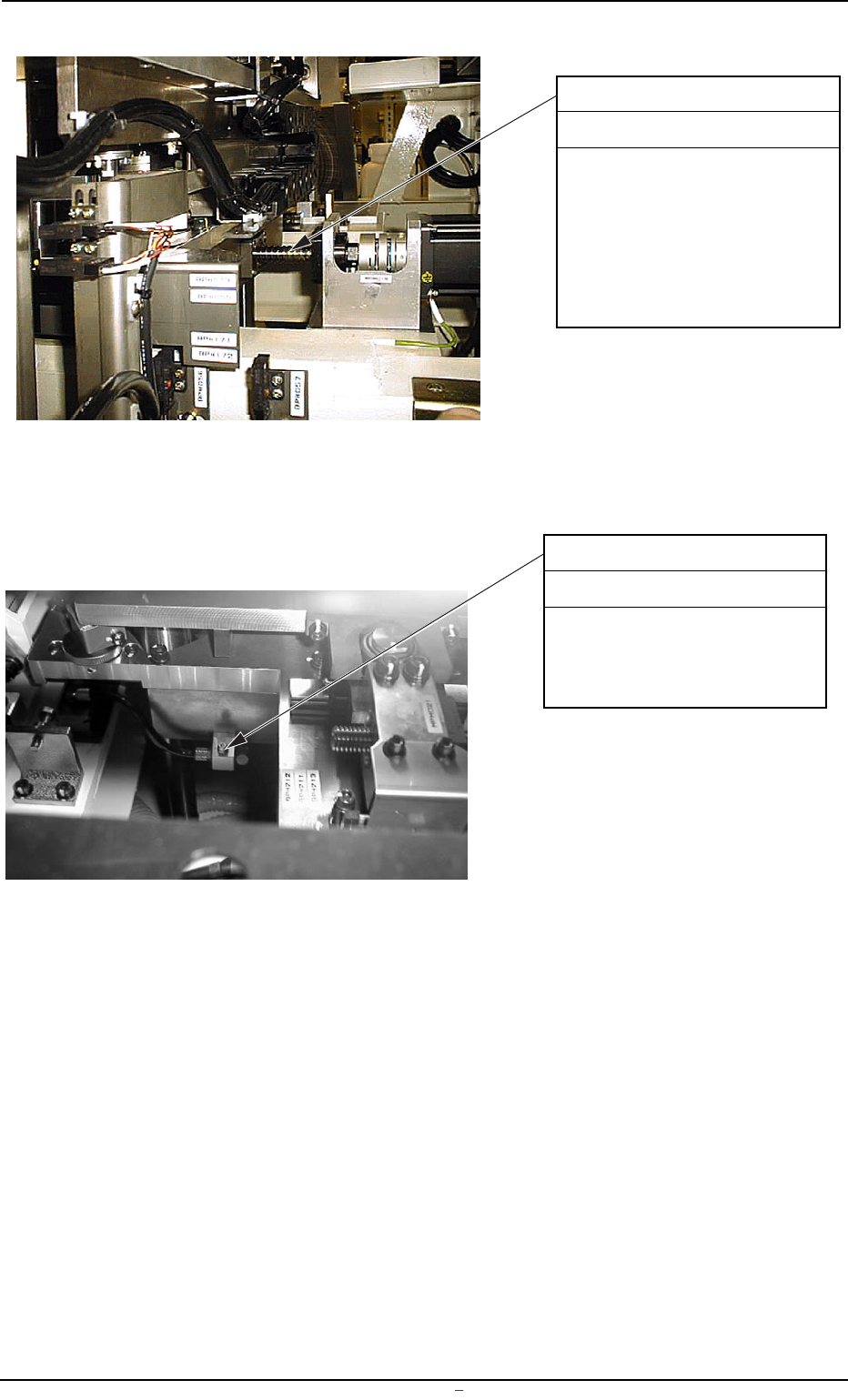

Fig. 5A23 Table Section
Fig. 5A23-1
8. Half-Yearly Maintenance
0106-003 Chapter 3 1 22 AFU01EINP
X-Axis Ball Screw
(1) Move the table Z axis up
to the printing position.
(2) Detach the cover located
at the front side of the
table.
(3) Apply grease with a brush
or a spatula.
Lubrication
X-Axis Linear Guide
Front Side: Apply grease
with a brush.
Rear Side: Apply grease
with a grease gun.
Lubrication
