2.3 "Recog. Error" Tab
This indicates the data related to the recognition errors.
• Sheet Layout
When the "Recog. Error" tab is pressed in the "MANAGE. DATA 1"
window (submenu), the following tab sheet appears.

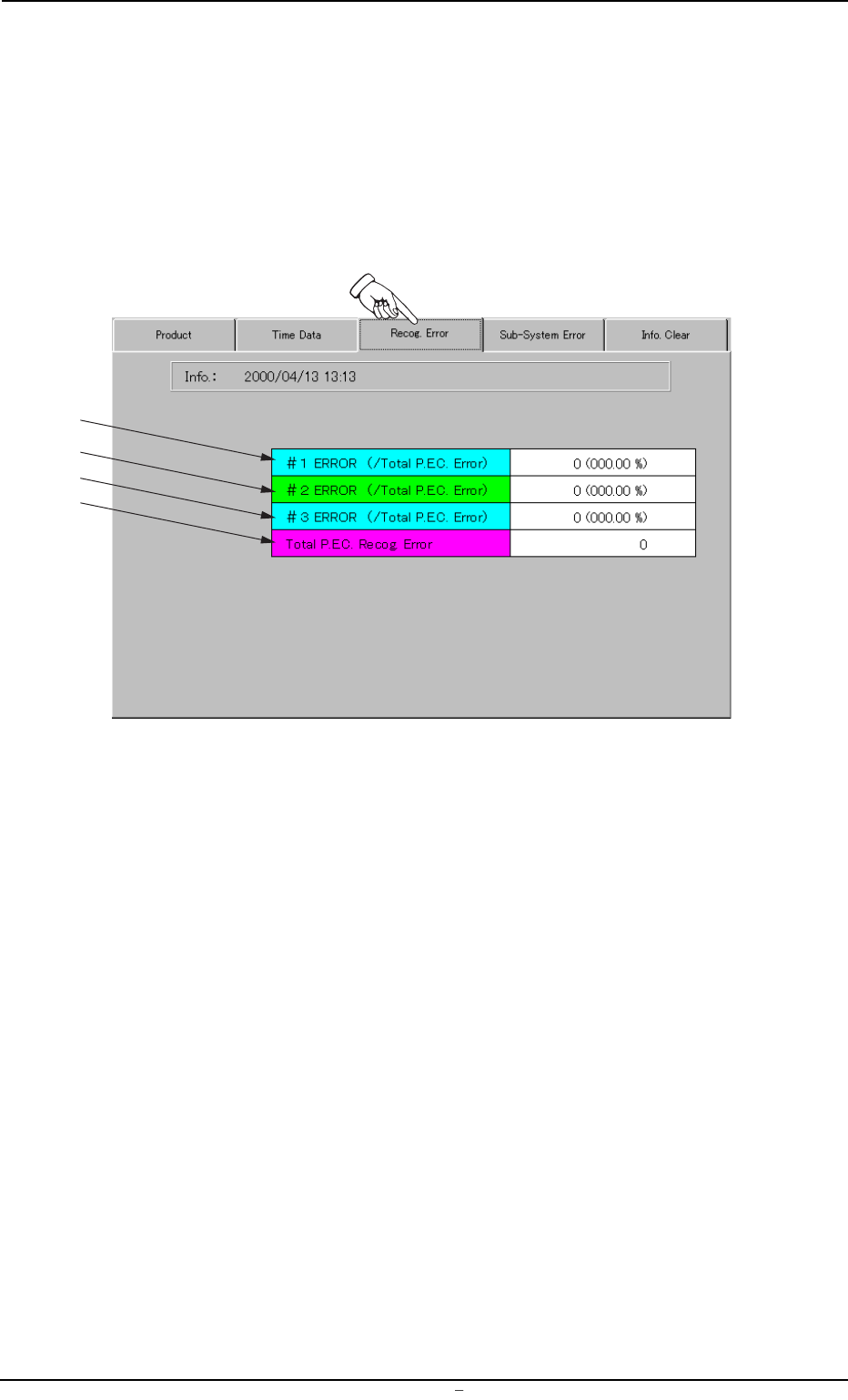

Fgi. 3C6 "Recog. Error" Tab Sheet
• Sheet Composition
*1 #1 ERROR (/Total P.E.C. Error)
This indicates the total number of errors on the first fiducial mark
and the ratio based on the total number of P.E.C. recognition er-
rors.
*2 #2 ERROR (/Total P.E.C. Error)
This indicates the total number of errors on the second fiducial
mark and the ratio based on the total number of P.E.C. recognition
errors.
*3 #3 ERROR (/Total P.E.C. Error)
Not Available
*4 Total P.E.C. Recog. Error
This indicates the total number of errors that were detected in P.E.C.
recognition processing.
*2
*1
*3
*4
0106-002 Chapter 1 3 11 AFU01EDTP
2.3
"
Recog. Error
"
Tab
2.4 "Sub-System Error" Tab
This indicates the error data on each individual units.
• Sheet Layout
When the "Sub-System Error" tab is pressed in the "MANAGE. DATA
1" window (submenu), the following tab sheet appears.
Fig. 3C7 "Sub-System Error" Tab Sheet
• Sheet Composition
*1 Unit Selection Buttons
These buttons are used to select the units.
When a button is pressed, the indications in "*3 Contents of Er-
rors" change.
*2 Total Numbers of Errors on Each Individual Units
The indicated values represent the total numbers of errors on each
individual units.
*3 Contents of Errors
Displayed are the contents of errors on each individual units.
*4 Total Numbers of Errors
The indicated values represent the numbers of errors classified
according to the contents of errors on each individual units.
*1
*2 *3
*4
0004-001 Chapter 1 3 12 AFU01EDTP
2.4
"
Sub-System Error
"
Tab
*1
*2
*3
2.5 "Info. Clear" Tab
This tab sheet is provided with two buttons and each button is used to
clear the management data stored in memory.
• Sheet Layout
When "Info. Clear" tab is pressed in the "MANAGE. DATA 1" window
(submenu), the following tab sheet appears.
Fig. 3C8 "Info. Clear" Tab Sheet
• Sheet Composition
*1 [Management Data 1 Clear] Button
When the button is pressed, the following “Warning” dialog box
opens.
When the [OK] button is pressed, the contents of “Management
Data 1” are cleared and the date and time of the clear operation
are updated.
Fig. 3C9
0106-002 Chapter 1 3 13 AFU01EDTP
2.5
"
Info. Clear
"
Tab
