(2) Entry of Numerical Values
When the "Tenkey" icon
on the toolbar is pressed, the follow-
ing tenkey window appears.
Fig. 3B78 "Tenkey" Window
When you double-push a text box quickly in which a numerical
value should be entered, the parameter in the text box is high-
lighted, indicating that a numerical value should be entered. Enter
a value, using the number keys on the tenkey window and press
the [Ent] key.
(3) Entry of Alphabetic Characters
When a pattern program must be loaded or saved or a file name
must be entered, the following virtual keyboard appears.
Fig. 3B79 Virtual Keyboard
Use the alphabetic keys to enter a parameter and press the [Enter]
key.
0106-002 Chapter 1 2 30 AFU01EDTP
2.1 Navigations in “Pattern Program” Edit Window
(4) Selection of Set Value
A combo box is like a text box and a list box combined and pro-
vided to make it easier to select a specific value from a list of pre-
defined values.
Step 1
When you double-push a text box quickly, the text box is changed
to a combo box that has a down arrow on the right side.

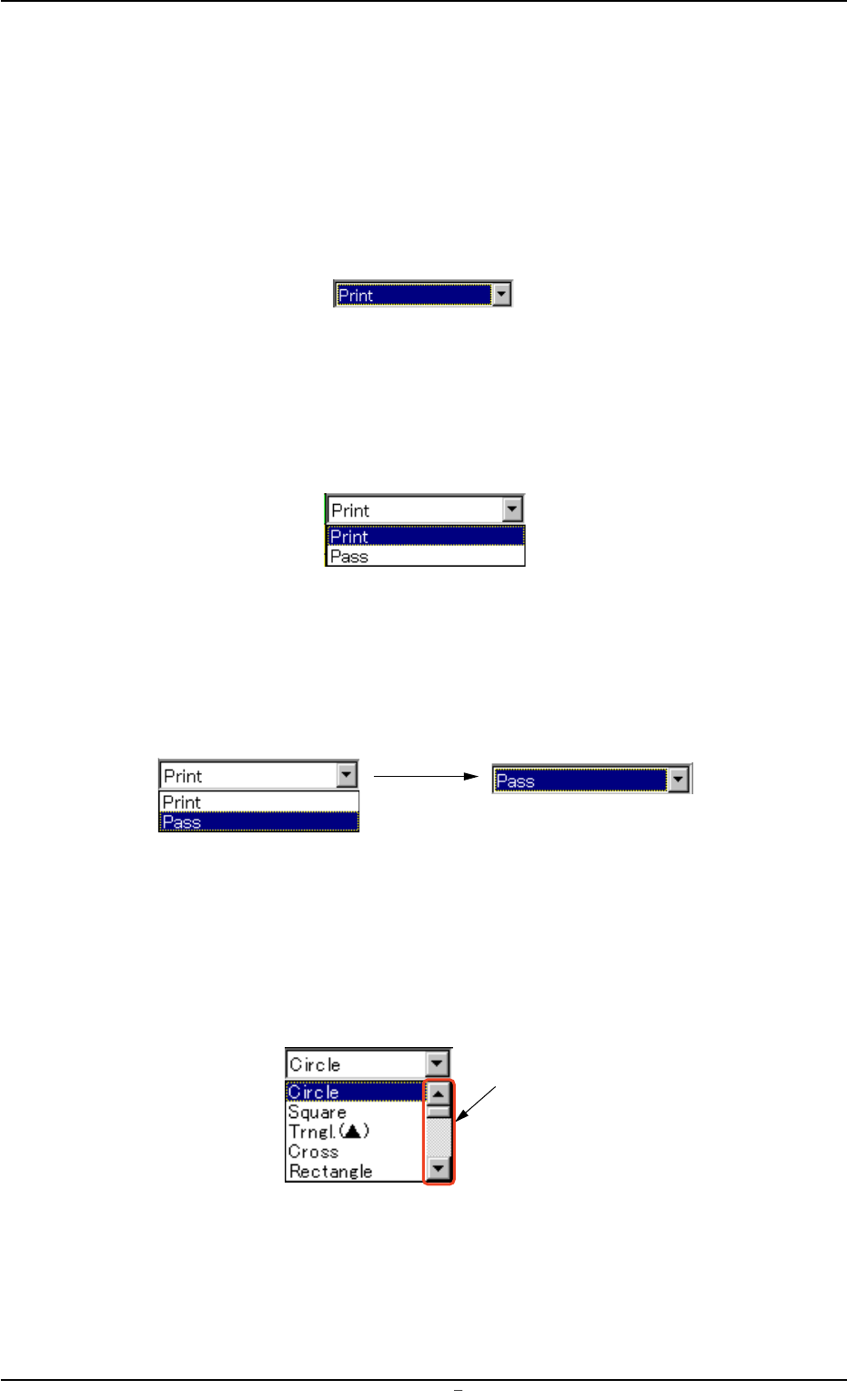

Fig. 3B80
Step 2
When you push the down arrow, a drop-down list box opens, show-
ing the rows of data to be selected.
Fig. 3B81
Step 3
When you push the desired data in the list, it is reflected in the text
box.
Fig. 3B82
When too many options are in the list box, a scrollbar appears on
the right side of the list box. Scroll the list and select the desired
option.
Fig. 3B83
Step 4
When another text box is selected, the combo box is changed to a
text box.
2.1 Navigations in “Pattern Program” Edit Window
0106-002 Chapter 1 2 31 AFU01EDTP
Scrollbar
2.1.3 Saving a Pattern Program
This session describes how to save a newly created or an edited
pattern program.
• Operation Procedure
(1) Click "File" on the menu bar. The pull-down menu opens. Select
"Save" or "Save As..." from the pull-down menu.
Save : Select this to replace the source pattern program with
the edited one.
Save As... : Select this to save a newly created pattern program
or an edited pattern program as another one (differ-
ent from the source program).
(2) When you select "Save", the active pattern program is saved with
the same name (model name) as that of the source pattern pro-
gram. The source pattern program is replaced with the active one.
When the program is saved, a "File save complete" message ap-
pears on the status bar of the "Pattern Program" window.
(3) When you select "Save As...", the "Virtual Keyboard" (Fig. 3B74)
and the following "Save" window open.

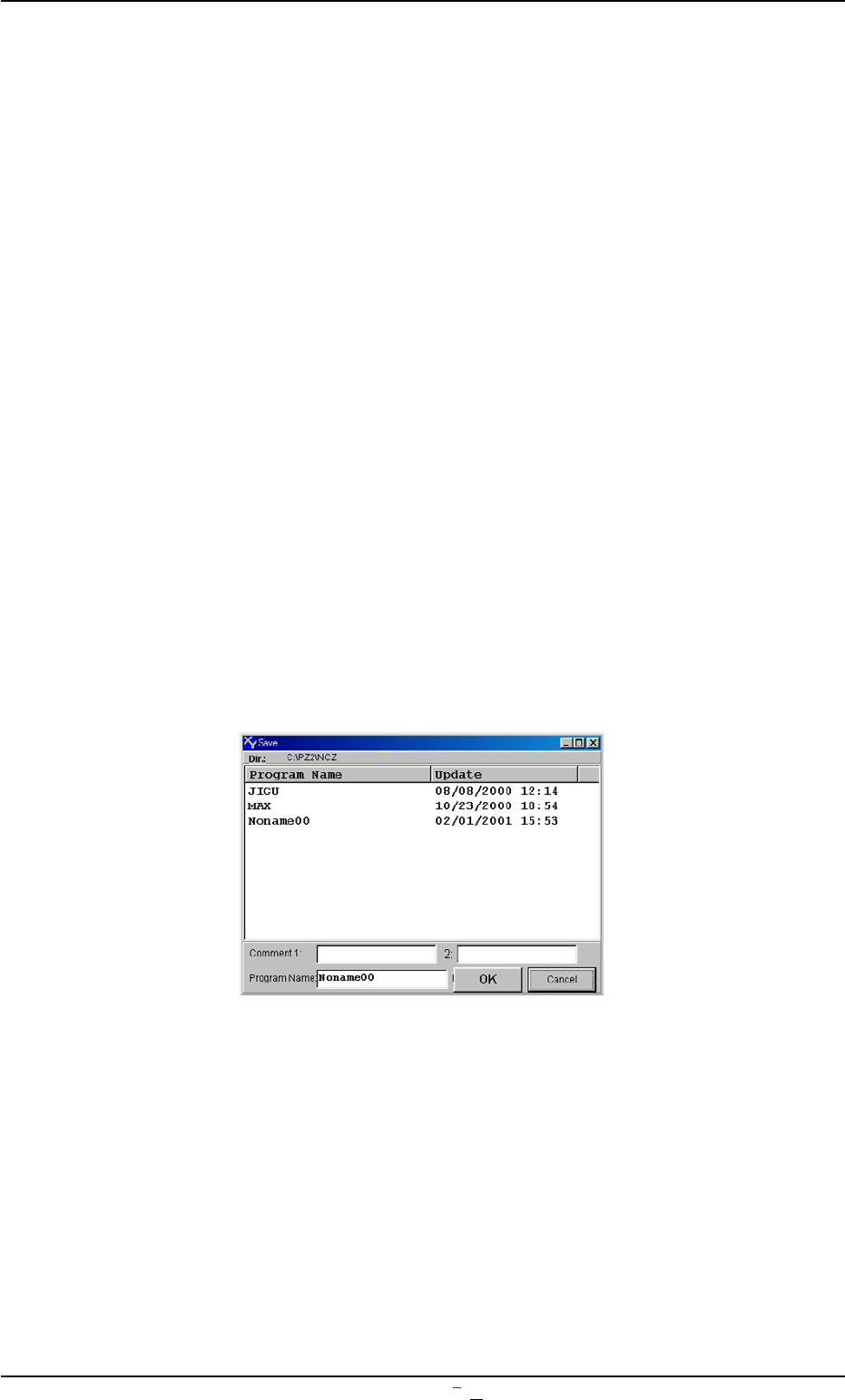

Fig. 3B84 "Save" Window
(4) Enter a comment (up to 16 characters) on the selected program in
the "Comment 1" and "Comment 2" text boxes and the program
name (up to 32 characters) in the "Program Name" text box, using
the "Virtual Keyboard" .
0106-002 Chapter 1 2 32 AFU01EDTP
2.1 Navigations in “Pattern Program” Edit Window
