T able 5C4 Symbols Name MPM023 P .C.B. U/D Pulse Motor MPM025 Pulse Motor for Rail Width Adjustment SVS052 Pressure Switch YSV058 P .C.B. Horizontal Clamping Solenoid V alve (Outward) YSV059 P .C.B. Horizontal Clamping S…
Fig. 5C5
Table 5C3
Symbols Name
BPH050 P.C.B. Horizontal Clamping Forward Limit
BPH051 Width Error Detection (Light Emitting Side)
B05F Width Error Detection (Light Receiving Side)
SVS052 Vacuum Switch
BPH055 Table Z-Axis Interlock
BPH056 Table X-Axis Interlock (+)
BPH057 Table X-Axis Interlock (-)
BPH171 Table Z-Axis Origin
BPH172 Table Z-Axis Limit (+)
BPH173 Table Z-Axis Limit (-)
BPH191 Table X-Axis Origin
BPH192 Table X-Axis Limit (+)
BPH193 Table X-Axis Limit (-)
BPH211 Table
-Axis Origin
BPH212 Table
-Axis Limit (+)
BPH213 Table
-Axis Limit (-)
BPH231 P.C.B. U/D Axis Origin
BPH232 P.C.B. U/D Axis Limit (+)
BPH233 P.C.B. U/D Axis Limit (-)
BPH251 Rail Axis Limit (+)
ASMD017 Table Z-Axis Servomotor
MPM019 Table X-Axis Pulse Motor
MPM021 Table
-Axis Pulse Motor
0106-002 Chapter 3 3 48 AFU01EMTP

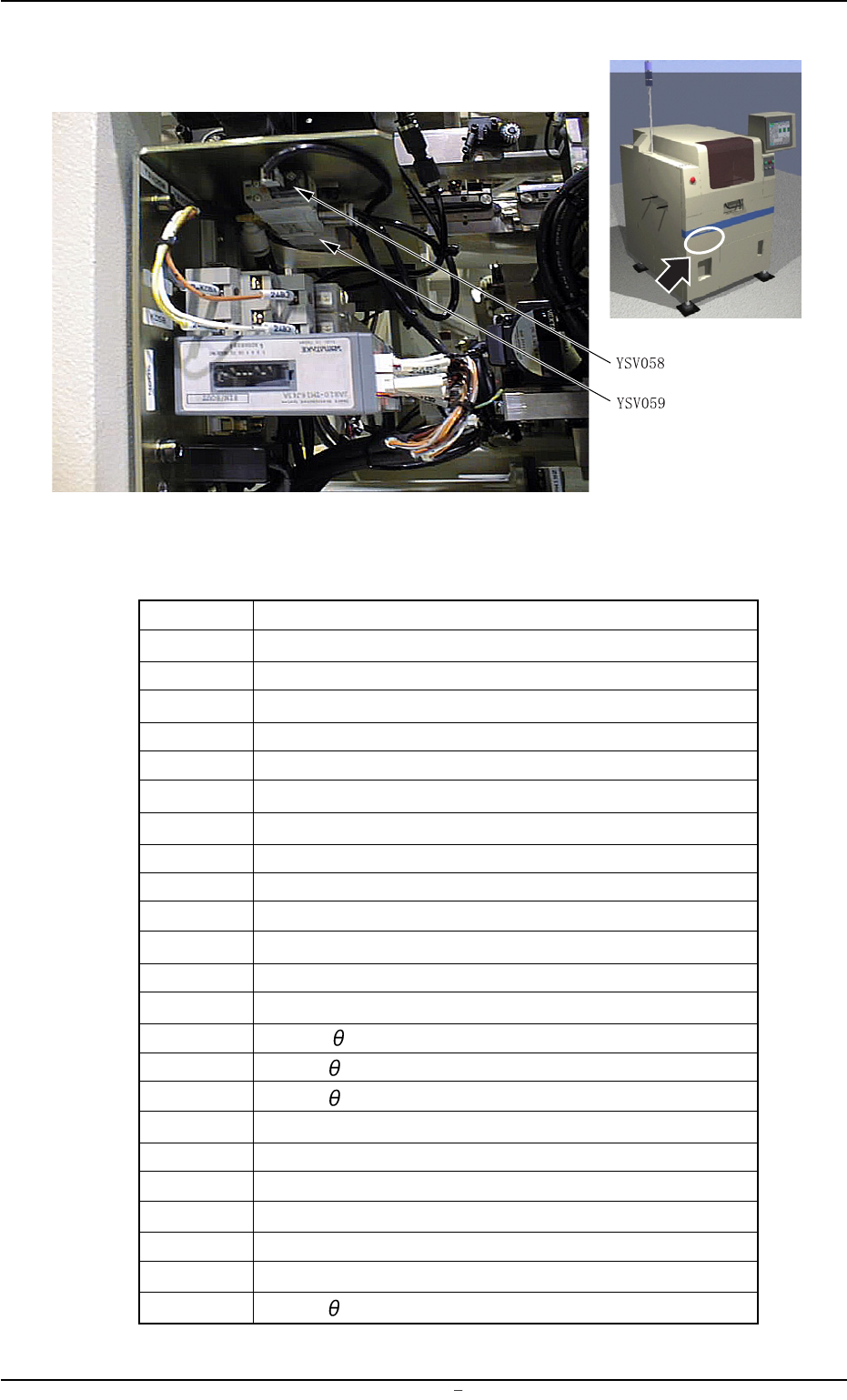

3.2 Location of Sensors in Table Section
Table 5C4
Symbols Name
MPM023 P.C.B. U/D Pulse Motor
MPM025 Pulse Motor for Rail Width Adjustment
SVS052 Pressure Switch
YSV058 P.C.B. Horizontal Clamping Solenoid Valve (Outward)
YSV059 P.C.B. Horizontal Clamping Solenoid Valve (Backward)
0106-002 Chapter 3 3 49 AFU01EMTP
3.2 Location of Sensors in Table Section
0106-002 Chapter 3 3 50 AFU01EMTP

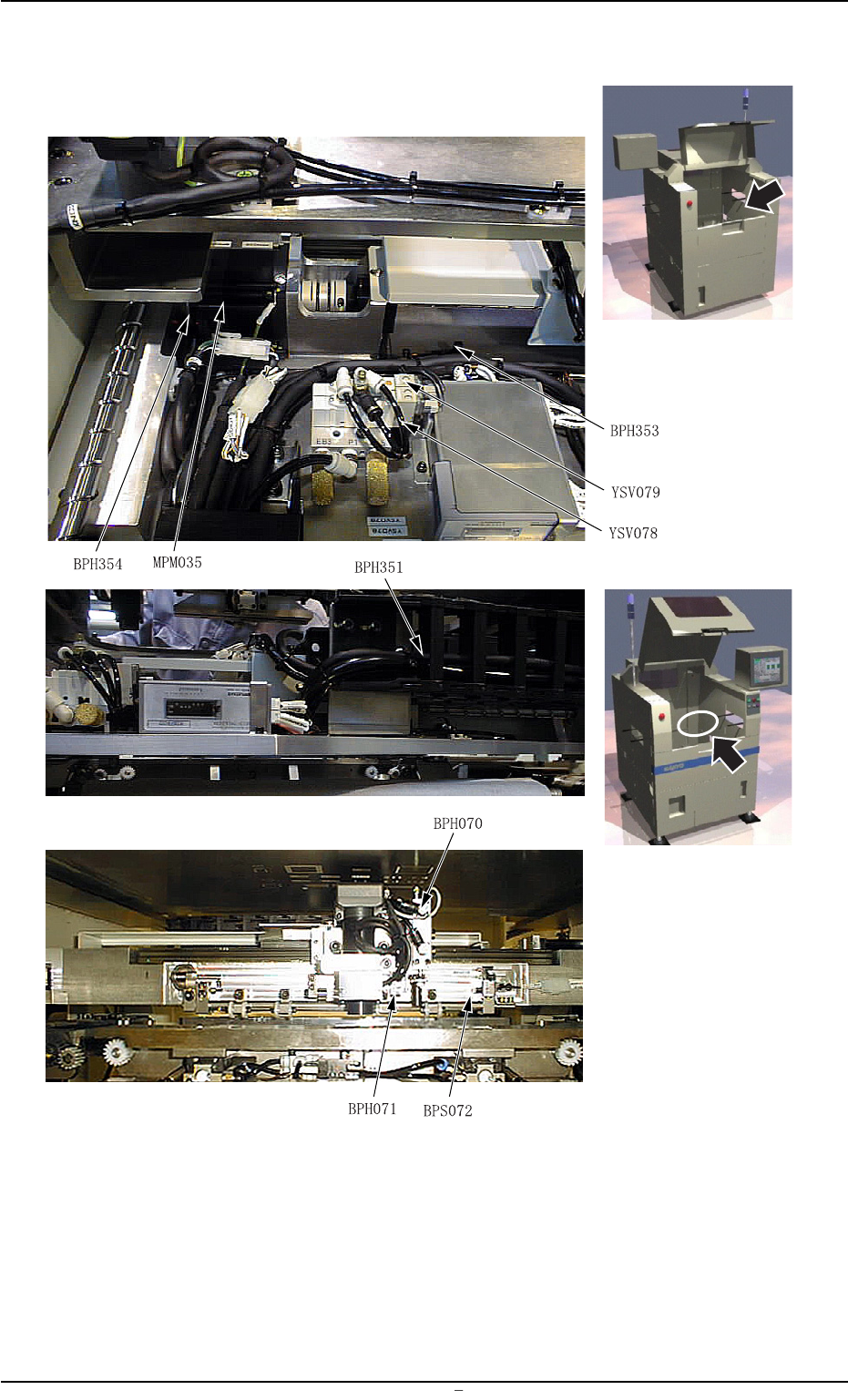

3.3 Location of Sensors for P.E.C. Recognition
3.3 Location of Sensors for P.E.C. Recognition
Fig. 5C6
