Regulations regarding Mark Surroundings • A fiducial mark should make ample contrast with the surroundings. (Preven- tion of False Recognition) • The shape of P .C.B. (a cutout, a punched hole), the external elements (li…

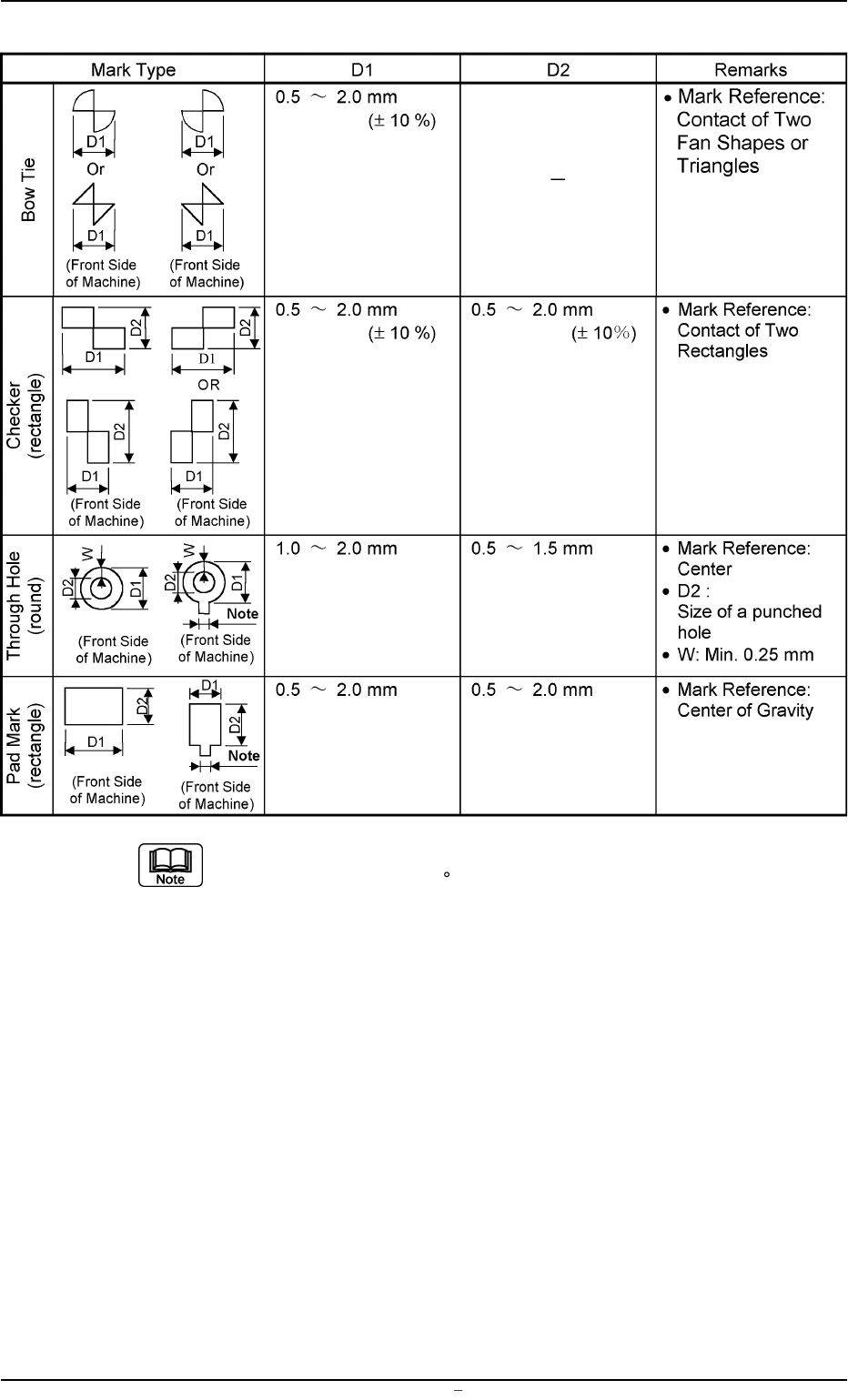

Table 3B3

A through hole or a pad mark should have only one lead which is di-

rected in increments of 45 .

Consult our marketing department for details such as dimensions, etc.

0009-002 Chapter 1 2 16 AFU01EDTP

1.2 Operation Data

Regulations regarding Mark Surroundings

• A fiducial mark should make ample contrast with the surroundings. (Preven-

tion of False Recognition)

• The shape of P.C.B. (a cutout, a punched hole), the external elements (light

reflected from a structure, light emitted from an external device, etc.,) may

sometimes interfere with recognition.

(Consult our marketing department for details.)

• A copper leaf, a resist, a coating, a silk print, and a punched hole should not

exist in the range of 1.0 mm in both X and Y directions from the outermost

edges of a fiducial mark. They may cause false recognition.

Fig. 3B50

• Anything resembling a pattern similar to a fiducial mark should not exist in

the designated recognition area. If one exists, it may cause false recogni-

tion.

Refer to "Chapter 2" in "Volume 1" for the material of the screen

plate and the settings of screen fiducial marks.

Specification of Lines extended from a Pad Mark or a Through Hole

Unit: mm

Fig. 3B52

0009-002 Chapter 1 2 17 AFU01EDTP

1.2 Operation Data

1.2.7 Setup Data

It can be determined whether or not each unit should be set up.

The settings can be changed using the menus in the "ALL

PROD. CHG." window.

(1) All Conveyor Setup

It can be determined whether or not the L conveyor width, the

table chute conveyor width, and the R conveyor width should be

set up according to the P.C.B. dimension Y (vertical).

OFF : Each conveyor width is not set up.

ON : Each conveyor width is set up.

(2) Two Camera Auto Calib.

It can be determined whether or not the two camera automatic

calibration should be performed, using the "ALL PROD. CHG."

menu.

OFF : The machine does not perform the setup operation for the

two camera automatic calibration.

ON : The machine performs the setup operation for the two cam-

era automatic calibration.

The two camera automatic calibration function works to

automatically correct the positional coordinates of the

P.E.C. and screen recognition cameras.

(3) Screen Recog

It can be determined whether or not the screen recognition should

be performed, using the "ALL PROD. CHG." menu.

OFF : The machine does not perform any setup operation for

screen recognition.

ON : The machine performs the setup operation for screen rec-

ognition.

Screen Recog

Fig.3B55

0009-002 Chapter 1 2 18 AFU01EDTP

1.2 Operation Data

All Conveyor Setup

Fig.3B53

Two Camera Auto Calib.

Fig.3B54
