Fig. 5A34 Screen Holder Section Fig. 5A35 L Conveyor Section 0009-002 Chapter 3 1 29 AFU01EINP 8. Half-Y early Maintenance Y -Axis Linear Guide Apply grease with a brush. Lubrication Guide Bushing for Width Adjustment Lu…

Fig. 5A32 Squeegee Head Section

Fig. 5A33 Screen Holder Section

0009-002 Chapter 3 1 28 AFUQ01EINP

8. Half-Yearly Maintenance

Screen Recognition X-Axis

Linear Guide

Inject grease into the grease

nipple with a grease gun.

Lubrication

Screen Recognition X-Axis

Ball Screw

Apply grease with a brush or a

spatula.

Lubrication

Apply grease with a brush.

Note: If a large amount of

grease is applied to the

ball screw, it may be

dispersed over a P.C.B.

and the screen. After

applying grease to the

ball screw, brush the

surface until a small

amount of grease

remains.

Lubrication

Y-Axis Ball Screw

Fig. 5A34 Screen Holder Section

Fig. 5A35 L Conveyor Section

0009-002 Chapter 3 1 29 AFU01EINP

8. Half-Yearly Maintenance

Y-Axis Linear Guide

Apply grease with a brush.

Lubrication

Guide Bushing for Width

Adjustment

Lubrication

Apply grease with a brush or

a spatula.

Ball Screw for Width

Adjustment

Lubrication

Apply grease with a brush or

a spatula.

Spline Shaft for Width

Adjustment

Lubrication

Apply grease with a brush or

a spatula.

Spline Shaft for Width

Adjustment

Apply grease with a brush or

a spatula.

Lubrication

Ball Screw for Width

Adjustment

Apply grease with a brush or

a spatula.

Lubrication

Guide Bushing for Width

Adjustment

Apply grease with a brush or

a spatula.

Lubrication

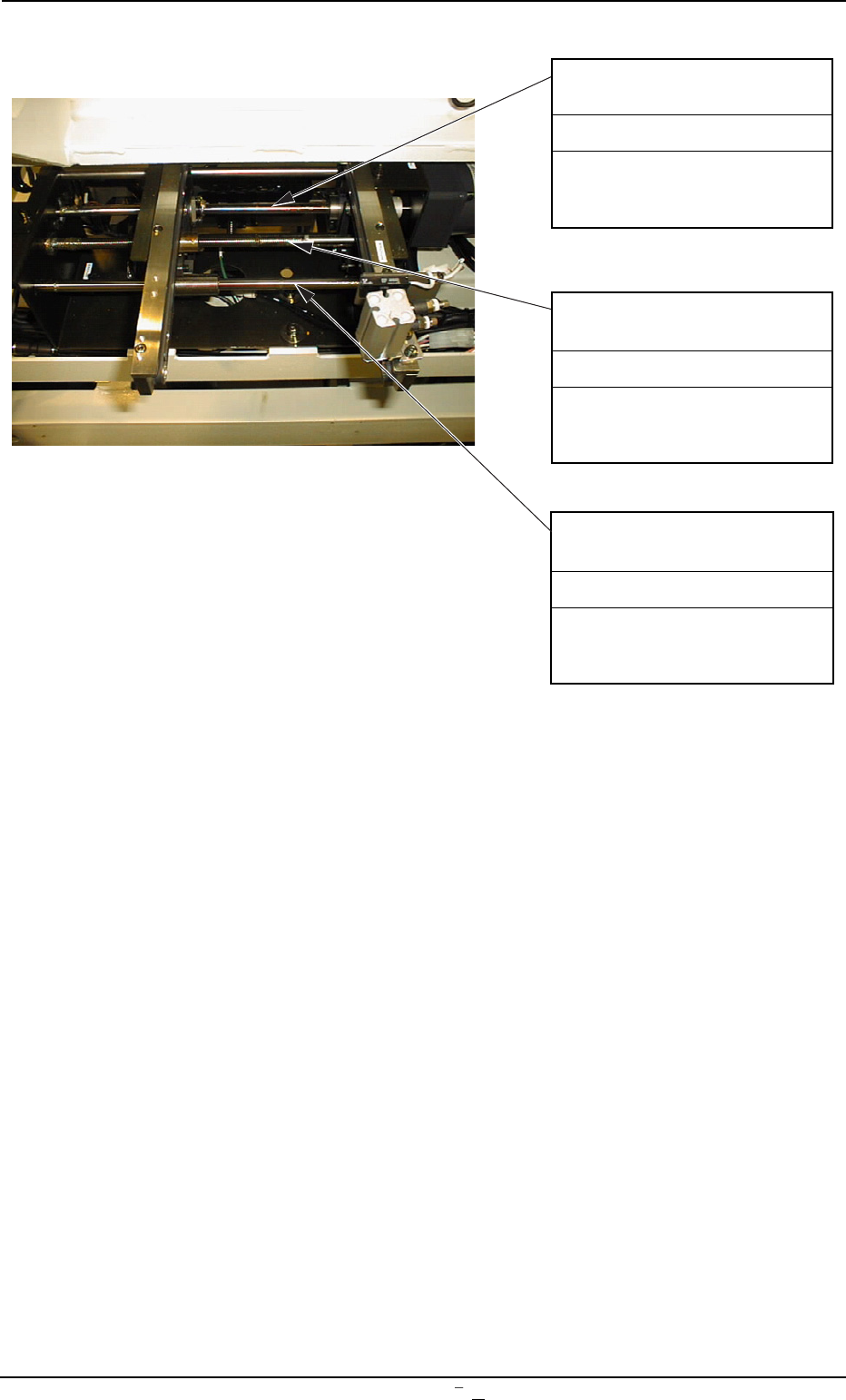

Fig. 5A36 R Conveyor Section

8. Half-Yearly Maintenance

0106-003 Chapter 3 1 30 AFU01EINP
