0106-002 Chapter 3 3 52 AFU01EMTP 3.4 Location of Sensors for Screen Holding 3.4 Location of Sensors for Screen Holding Fig. 5C8 T able 5C5 Symbols Name BPH047 Screen Y-Axis Interlock BPH291 Screen Y-Axis Origin BPH294 S…
0106-002 Chapter 3 3 51 AFU01EMTP
Fig. 5C7
Table 5C4
Symbols Name
BPH046 P.C.B. Recognition Y-Axis Interlock
BPS070 P.C.B. Stopper Upper Limit
BPH071 P.C.B. Check
BPH072 (Overlapped P.C.B. Detection)
BPH331 P.E.C. Recognition Y-Axis Origin
BPH334 P.E.C. Recognition Y-Axis Rotational Origin
BPH351 P.E.C. Recognition X-Axis Origin
BPH353 P.E.C. Recognition X-Axis Limit (-)
BPH354 P.E.C. Recognition X-Axis Rotational Origin
MPM035 P.E.C. Recognition X-Axis Pulse Motor
MPM033 P.E.C. Recognition Y-Axis Pulse Motor
YSV078 P.C.B. Warpage Top Holding Upper Limit Solenoid Valve
YSV079 P.C.B. Stopper Solenoid Valve
3.3 Location of Sensors for P.E.C. Recognition
0106-002 Chapter 3 3 52 AFU01EMTP
3.4 Location of Sensors for Screen Holding
3.4 Location of Sensors for Screen Holding
Fig. 5C8
Table 5C5
Symbols Name
BPH047 Screen Y-Axis Interlock
BPH291 Screen Y-Axis Origin
BPH294 Screen Y-Axis Rotational Origin
MPM029 Screen Y-Axis Pulse Motor
0106-002 Chapter 3 3 53 AFU01EMTP

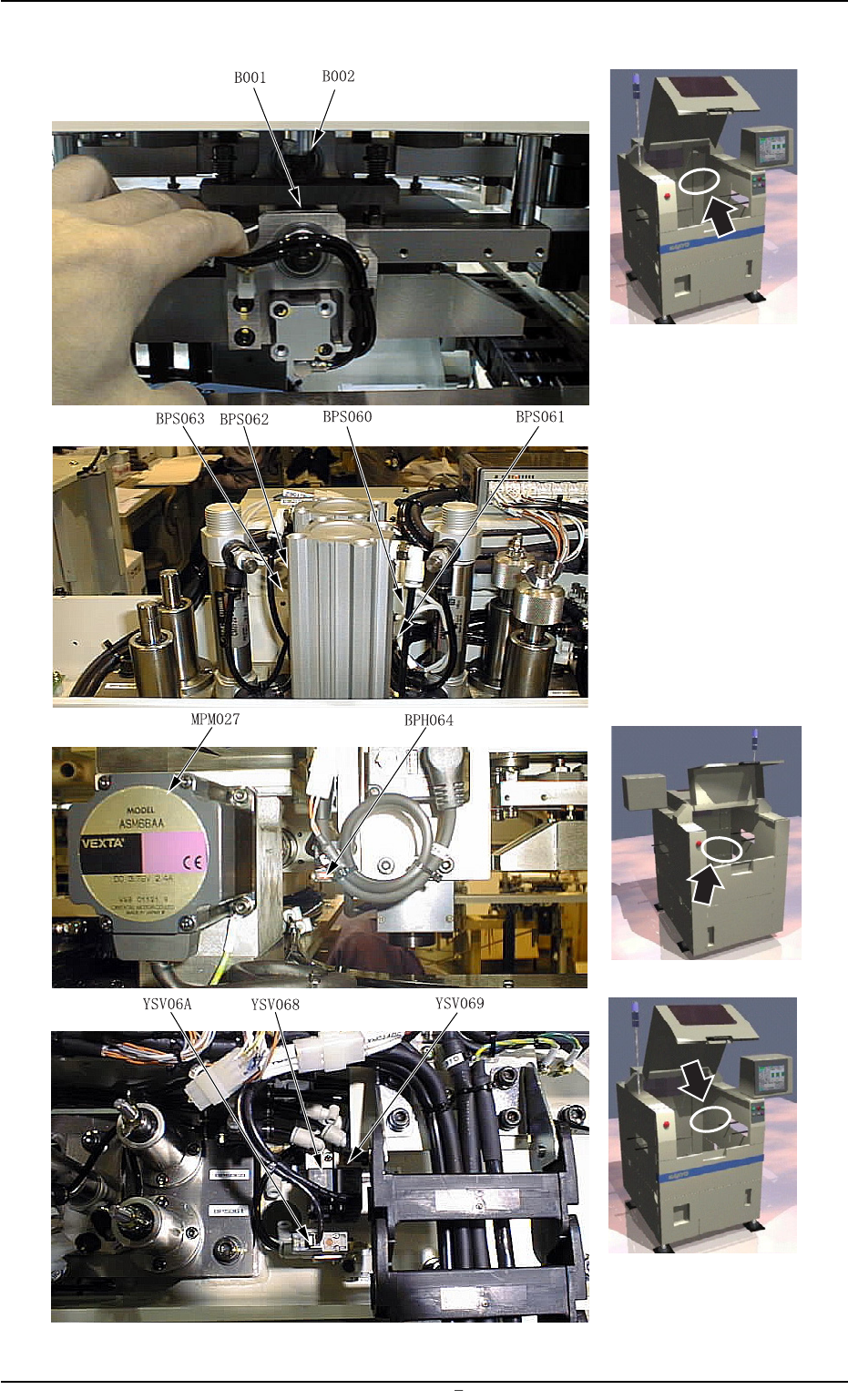

3.5 Location of Sensors in Squeegee Section
3.5 Location of Sensors in Squeegee Section
Fig. 5C9
