2.1.2 "Available Area" Tab
• Sheet Layout
When the "Available Area" tab is pressed in the "Password" tab sheet,
the following tab sheet appears.

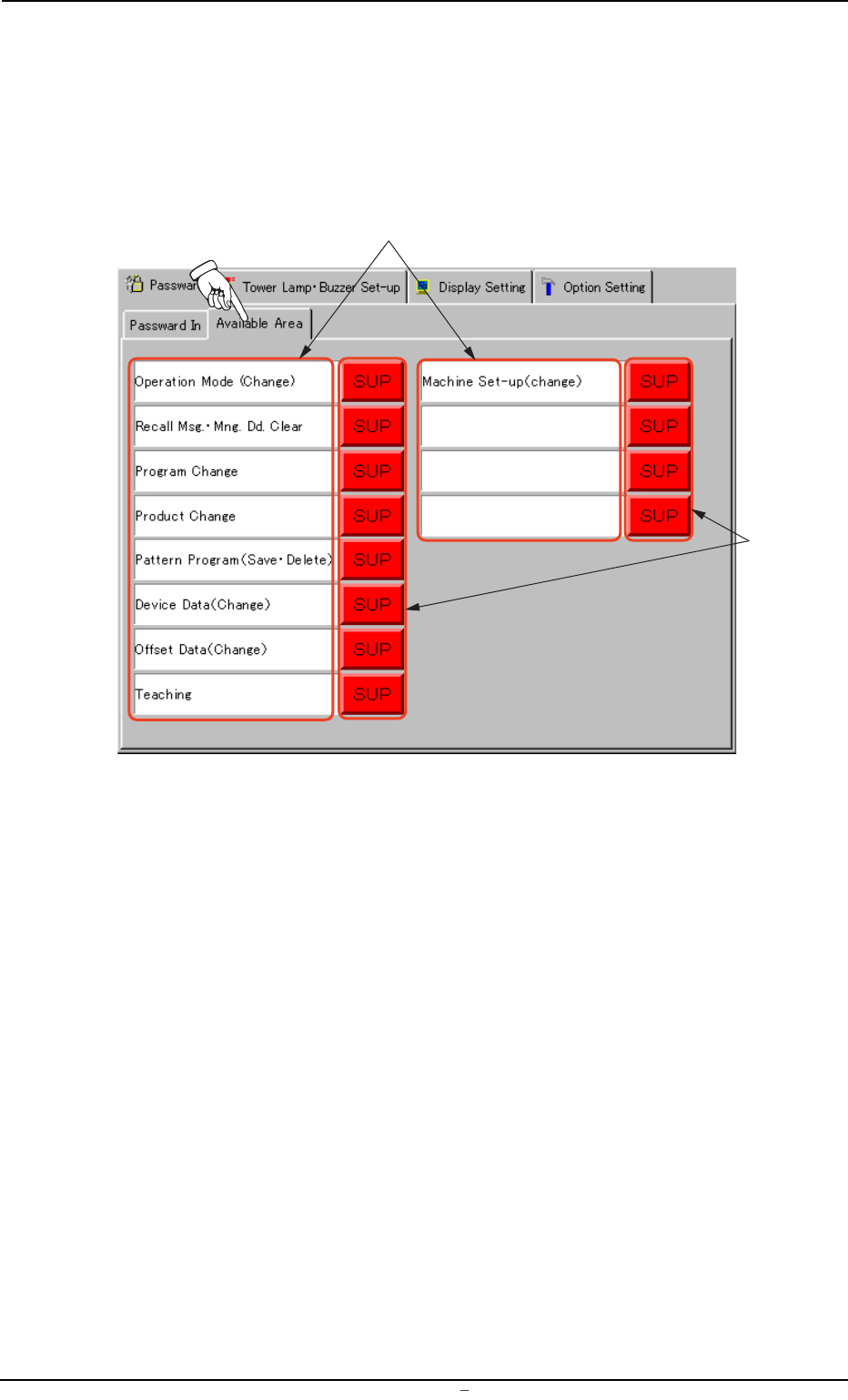

Fig. 3D7 "Available Area" Tab Sheet
• Sheet Composition
*1 Function Names
Some function names are displayed, indicating that they can be
set or changed by the authorized operator.
*2 Authorization Buttons
These buttons are used to assign security levels to the correspond-
ing functions.
Every time a button is pressed, the label changes in the order of
[SUP] → [OP1] → [OP2]. The background color also changes in
the order of "Red" → "Green" → "Yellow".
Each label has the following meanings.
[SUP]: Operations available to the supervisor (log-in authoriza-
tion)
[OP1]: Operations available to both supervisor and operator #1
[OP2]: Operations available to the supervisor, operator #1, and
operator #2
*1
*2
0106-002 Chapter 1 4 9 AFU01EDTP
2.1
"
Password
"
Tab
(a) When the system is logged in as Operator #1 or #2
(other than Supervisor), the available functions can-
not be specified but the confirmation is possible.
(b) When a tab sheet has a function not specified as an
available area, the "OPERATION DENIED BY LOGIN
TYPE" dialog box pops out, enabling only confirma-
tion of the setting.
(c) When a sheet for data editing has a function not speci-
fied as an available area, the "CANNOT INPUT THE
DAT
" dialog box pops out, enabling only confirma-
tion of the setting.
(d) Even at the level in which no password is set, an avail-
able area for a password can be specified.
0004-001 Chapter 1 4 10 AFU01EDTP
2.1
"
Password
"
Tab
2.2 "Tower Lamp Buzzer" Tab
This tab sheet enables the operator to allocate the colors (red, yellow,
and green) of the tower lights and set alarm modes according to the
machine status.
• Sheet Layout
When the "Tower Lamp
Buzzer" tab is pressed in the "MAC. SET-UP"
window (submenu), the following tab sheet appears.
Fig. 3D8 "Tower Lamp
Buzzer" Tab Sheet
• Sheet Composition
*1 Classification of Machine Status
Each label indicates the condition of the machine in which the cor-
responding tower light illuminates and the buzzer sounds.
The labels are displayed in high order of emergency according to
the degree of danger.
*1
*4
*2
*3
0106-002 Chapter 1 4 11 AFU01EDTP
2.2
"
Tower Lamp Buzzer
"
Tab
